Flanged Nylon Bushes - NYB095
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.25 | £0.30 |
| 2 - 999 | £0.24 | £0.29 |
| 1000 - 4999 | £0.24 | £0.29 |
| 5000 + | £0.23 | £0.28 |
£0.30 / each
.png)
Product Specification
| Internal Diameter | 10.2mm |
| Outside Diameter | 12.5mm |
| Flange Diameter | 28.0mm |
| Shaft Length | 2.5mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

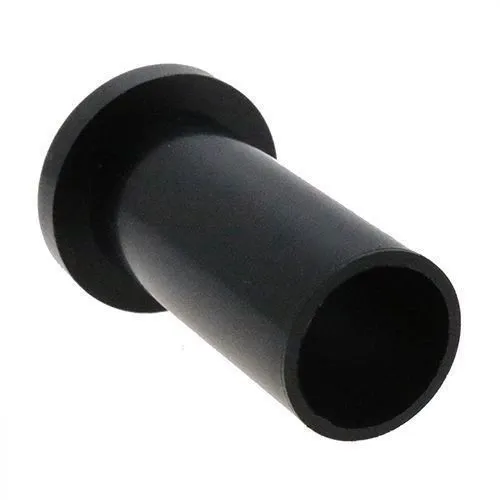

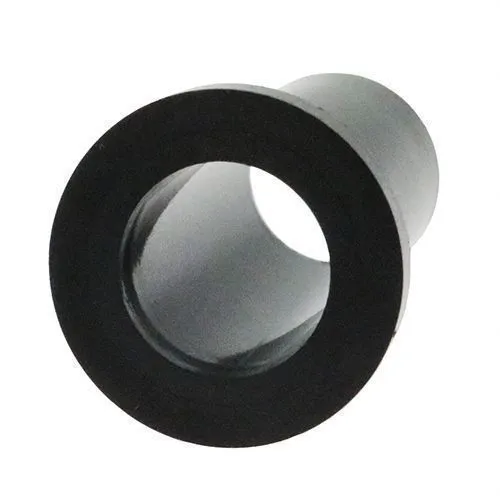

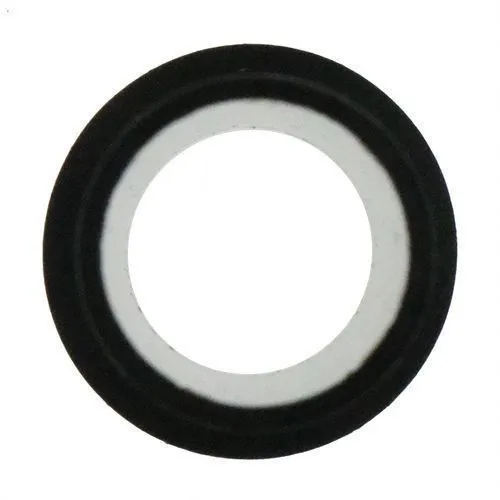

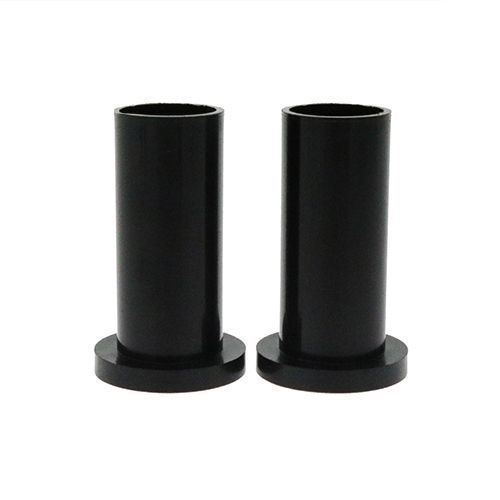

10.2mm ID x 12.5mm OD Nylon Flanged Bushing | 2.5mm Shaft | Black
Offering a simple insulating solution for machinery panels and equipment covers, this Nylon Flanged Bushing features a 10.2mm bore and 12.5mm outside diameter. The flange provides a seating surface while the sleeve surrounds the compatible screw, pin or cable path to reduce direct contact with the host component.
What Are Nylon Flanged Bushes?
Nylon Bushes are flanged insulating sleeves used to separate screws, shafts or other passing components from the surrounding material. The shoulder-style flange provides a bearing face while the cylindrical sleeve fits into the mounting hole which makes the component useful for electrical insulation, spacing and vibration damping.
Common Applications
- Control Panels: Insulates compatible fasteners and mounting points in electrical control equipment and enclosure assemblies.
- Panel Protection: Provides a sleeve around a mounting hole which can help protect the hole edge from the passing screw or shaft.
- Fastener Isolation: Separates metal screws or pins from the surrounding panel material to reduce direct conductive contact.
- Electrical Screw Insulation: Creates a non-conductive sleeve around compatible screws and fasteners passing through panels or equipment housings.
10.2mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 10.2mm
- Outside Diameter: 12.5mm
- Flange Diameter: 28.0mm
- Shaft Length: 2.5mm
- Colour: Black
- Material: Polyamide
Key Benefits
- Black finish provides a discreet appearance for darker housings, panels and equipment assemblies.
- 10.2mm internal diameter provides the bore size for the compatible screw, pin or passing component.
- 2.5mm shaft length defines the depth of the insulating sleeve through the assembly.
- Flanged shoulder design supports both insulation and component spacing within one moulded part.
See alternative flanged bush sizes in the Nylon Bushes category. If you need help selecting an insulating bush for a screw, panel or PCB assembly, call Vital Parts on 01233 713581.
