Flanged Nylon Bushes - NYB096
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.24 | £0.29 |
| 2 - 999 | £0.23 | £0.28 |
| 1000 - 4999 | £0.23 | £0.28 |
| 5000 + | £0.23 | £0.27 |
£0.29 / each
.png)
Product Specification
| Internal Diameter | 10.2mm |
| Outside Diameter | 11.0mm |
| Flange Diameter | 16.0mm |
| Shaft Length | 1.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

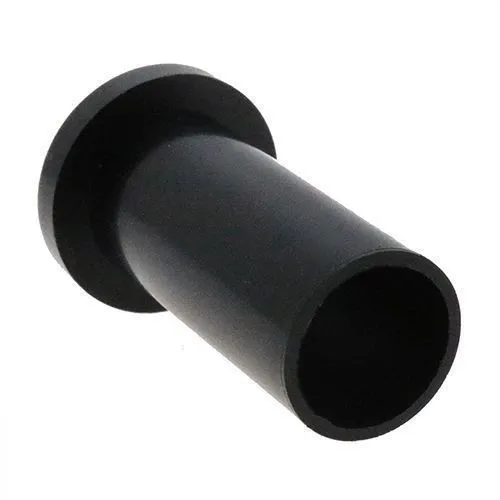

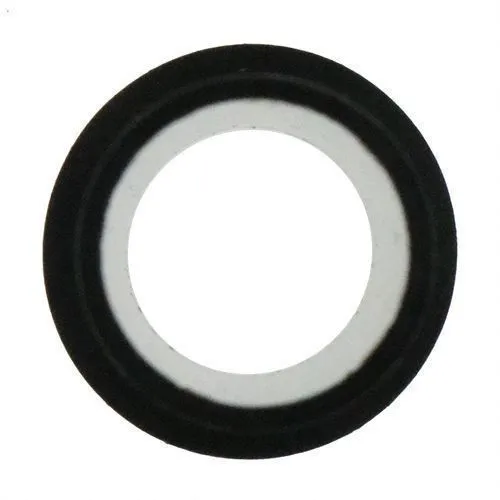

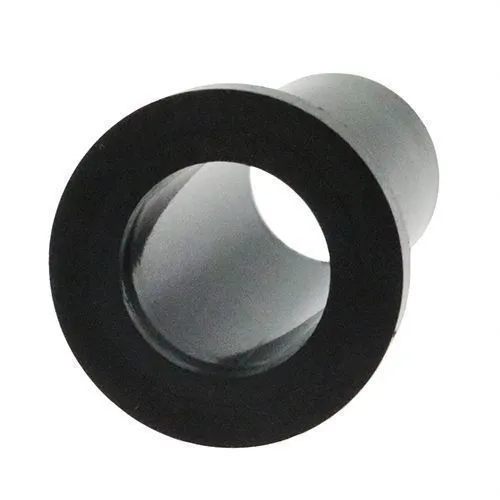

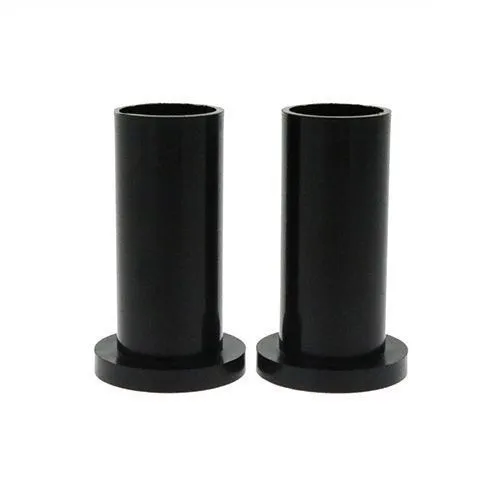

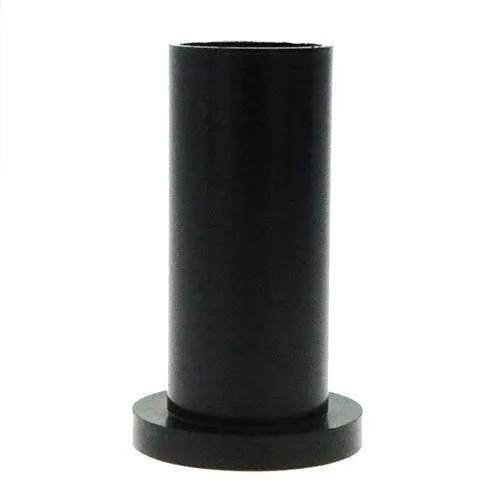

10.2mm ID x 11mm OD Nylon Flanged Bushing | 1mm Shaft | Black
Where commercial electronics and equipment frames require a non-conductive spacer or screw insulator, this Black Nylon Bush provides a 10.2mm internal diameter, 1.0mm shaft length and 16.0mm flange diameter. Its one-piece flanged form supports quick positioning within suitable holes and panel assemblies.
What Are Nylon Flanged Bushes?
Nylon Bushes are flanged insulating sleeves used to separate screws, shafts or other passing components from the surrounding material. The shoulder-style flange provides a bearing face while the cylindrical sleeve fits into the mounting hole which makes the component useful for electrical insulation, spacing and vibration damping.
Common Applications
- Automotive Electrical Systems: Provides non-conductive separation around suitable fasteners used in vehicle electrical and electronic assemblies.
- Equipment Housings: Provides an insulating bush through suitable holes in machinery covers, enclosures and equipment panels.
- Control Panels: Insulates compatible fasteners and mounting points in electrical control equipment and enclosure assemblies.
- Panel Protection: Provides a sleeve around a mounting hole which can help protect the hole edge from the passing screw or shaft.
10.2mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 10.2mm
- Outside Diameter: 11.0mm
- Flange Diameter: 16.0mm
- Shaft Length: 1.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- Suitable as a screw insulator, shoulder washer or flanged spacer in correctly sized assemblies.
- 11.0mm outside diameter provides the main sleeve diameter for the mounting hole.
- Flanged profile provides a defined bearing face while the sleeve passes through the mounting hole.
- Nylon construction can help damp light vibration, movement and shock between assembled components.
Explore the wider Nylon Flanged Bushes range for different bore sizes, body diameters and shaft lengths. For product selection assistance, contact our technical sales team on 01233 713581.
