Flanged Nylon Bushes - NYB099
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.27 | £1.53 |
| 2 - 999 | £1.17 | £1.40 |
| 1000 - 4999 | £1.07 | £1.29 |
| 5000 + | £0.99 | £1.19 |
£1.53 / each
.png)
Product Specification
| Internal Diameter | 10.5mm |
| Outside Diameter | 14.5mm |
| Flange Diameter | 21.0mm |
| Shaft Length | 32.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

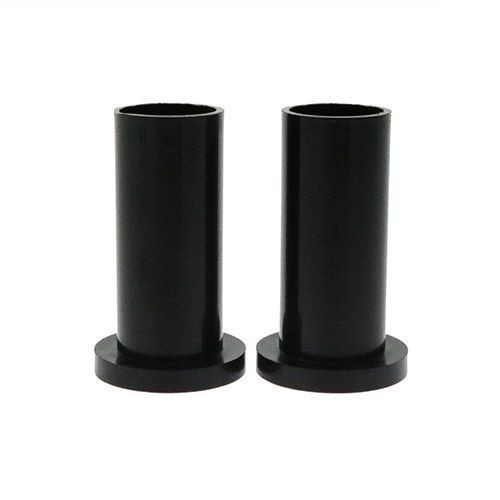

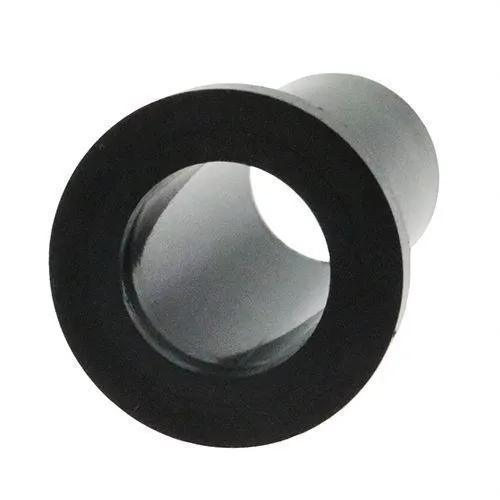

10.5mm ID x 14.5mm OD Nylon Flanged Bushing | 32mm Shaft | Black
Designed for industrial electrical equipment, this Nylon Flanged Bushing has a 10.5mm internal diameter, 14.5mm outside diameter and 32.0mm shaft length. The Black heat-stabilised Nylon 6/6 construction provides a non-conductive sleeve and flanged bearing surface for insulating fasteners, spacing components and reducing direct metal-to-metal contact.
What Are Nylon Flanged Bushes?
Nylon Flanged Bushings provide a lightweight alternative to metal bushes where electrical isolation and low-friction separation are important. They are commonly used around screws and fasteners, through panels and within PCB or electronic assemblies where the sleeve and flange help locate and insulate the connection.
Common Applications
- Instrument Assemblies: Supports insulated mounting and component spacing in measuring, control and instrumentation equipment.
- Fastener Isolation: Separates metal screws or pins from the surrounding panel material to reduce direct conductive contact.
- PCB Spacing: Helps maintain separation between circuit boards, panels and supporting components where a flanged spacer is suitable.
- Vibration Damping: Helps reduce direct contact and absorb light vibration or movement between assembled components.
10.5mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 10.5mm
- Outside Diameter: 14.5mm
- Flange Diameter: 21.0mm
- Shaft Length: 32.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- 21.0mm flange diameter creates a wider bearing surface against the panel or component.
- Flanged profile provides a defined bearing face while the sleeve passes through the mounting hole.
- Nylon construction can help damp light vibration, movement and shock between assembled components.
- 10.5mm internal diameter provides the bore size for the compatible screw, pin or passing component.
Browse the full Nylon Bushes, Screw Insulators and Shoulder Washers range for additional sizes in Black and Natural finishes. Technical sizing support is available on 01233 713581.
