9.5mm Split Cable Bushing - 1.7mm Panel (6.6mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.60 | £0.72 |
| 2 - 249 | £0.60 | £0.72 |
| 250 - 499 | £0.52 | £0.62 |
| 500 - 999 | £0.42 | £0.50 |
| 1000 - 2499 | £0.37 | £0.44 |
| 2500 + | £0.32 | £0.38 |
Product Specification
| To Fit Hole Diameter | 9.5mm |
| Max Panel Thickness | 1.7mm |
| Max Cable Diameter | 6.6mm |
| Head Diameter | 11.4mm |
| Length | 6.5mm |
Frequently Bought Together
Total Price: £0.00

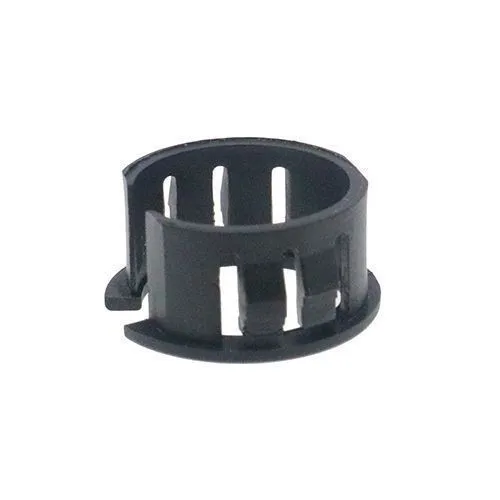

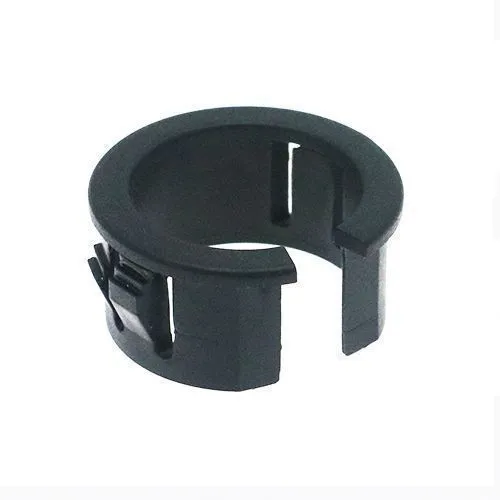

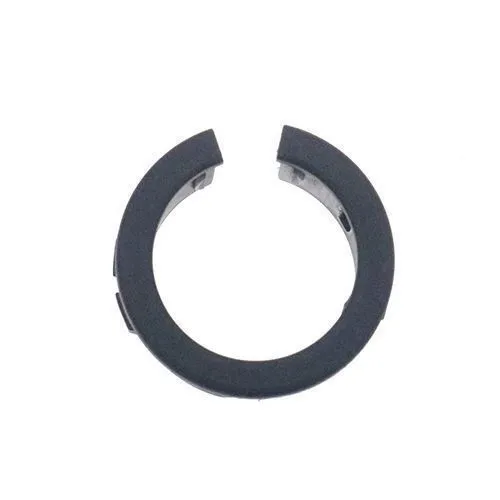

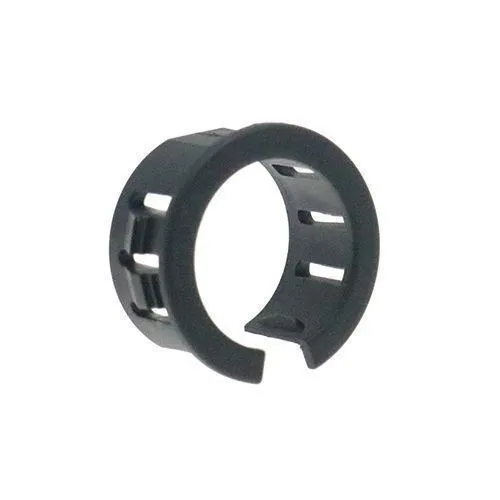

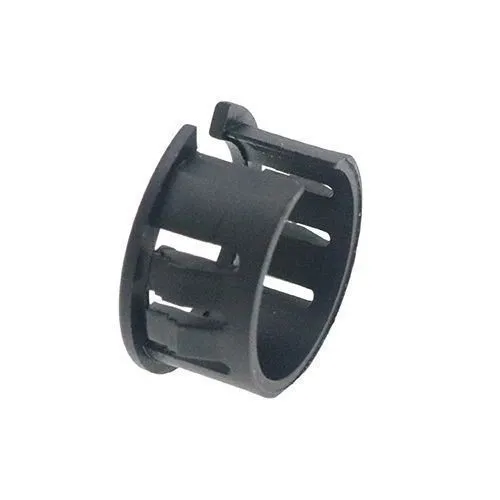

9.5mm Open/Closed Bush | 6.6mm Max Cable | Black Nylon
Where cables are already in position, this 9.5mm split cable bushing can be opened around the cable before being snapped into the panel aperture.
The stepped locking profile helps maintain a reliable fit in fractional panel thicknesses, making it useful for production builds as well as replacement maintenance work. For sheet metal fabrication, the snap fit wire protector helps separate the cable from the panel edge while the head diameter of 11.4mm gives a neat seated finish.
What Are Open/Closed Bushes?
Split cable bushings are used where a cable requires edge protection but cannot easily be removed from the assembly. The open/closed design helps installers add protection after wiring is already in place.
Common Applications
- Retrofitting protection around pre-installed wiring looms
- Supporting cable runs through instrument panels
- Reducing abrasion where wires pass through sheet metal
- Maintaining safer cable paths in serviceable equipment

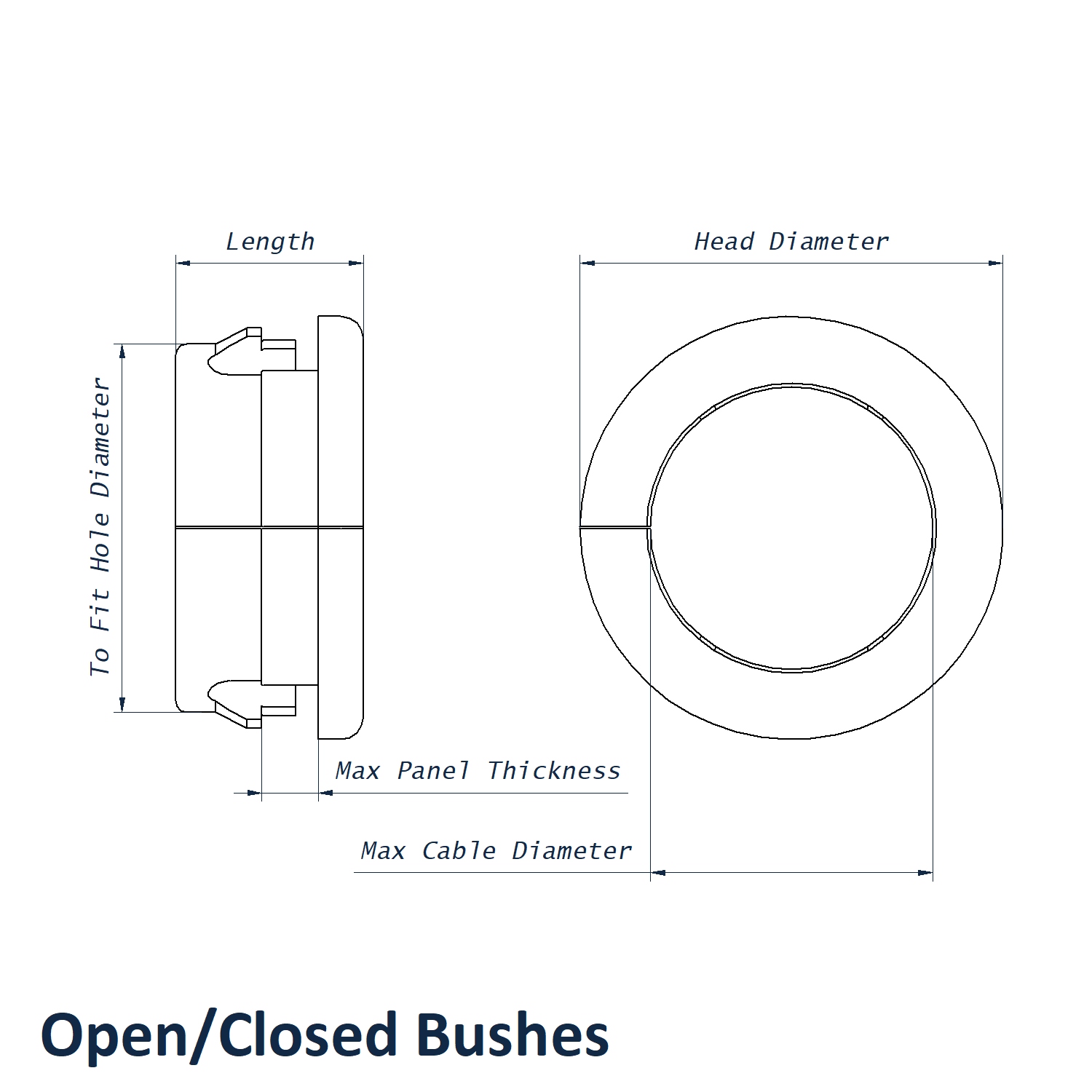

9.5mm x 6.5mm Black Open/Closed Bush Dimensions
- To Fit Hole Diameter: 9.5mm
- Max Panel Thickness: 1.7mm
- Max Cable Diameter: 6.6mm
- Head Diameter: 11.4mm
- Length: 6.5mm
- Material: Nylon
- Colour: Black
Open/Closed Bush Range
View our full Open/Closed Bushes range for split cable bushing options across different hole diameters, cable sizes and panel thicknesses.
Product Support and Trade Orders
If you are unsure whether this split cable bushing suits your panel thickness or cable diameter, call 01233 713581 for product guidance. The team can help with sample requests where available and larger project quantities.
