27.1mm Split Cable Bushing - 1mm Panel (22.9mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £1.13 | £1.36 |
| 2 - 249 | £1.13 | £1.36 |
| 250 - 499 | £1.09 | £1.31 |
| 500 - 999 | £0.91 | £1.09 |
| 1000 - 2499 | £0.81 | £0.97 |
| 2500 + | £0.73 | £0.88 |
Product Specification
| To Fit Hole Diameter | 27.1mm |
| Max Panel Thickness | 1.0mm |
| Max Cable Diameter | 22.9mm |
| Head Diameter | 35.1mm |
| Length | 6.0mm |
Frequently Bought Together
Total Price: £0.00

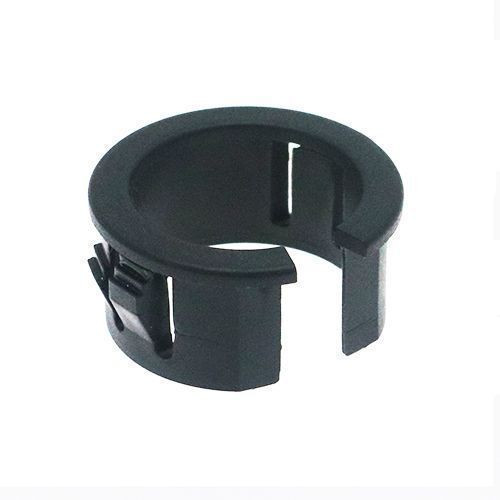

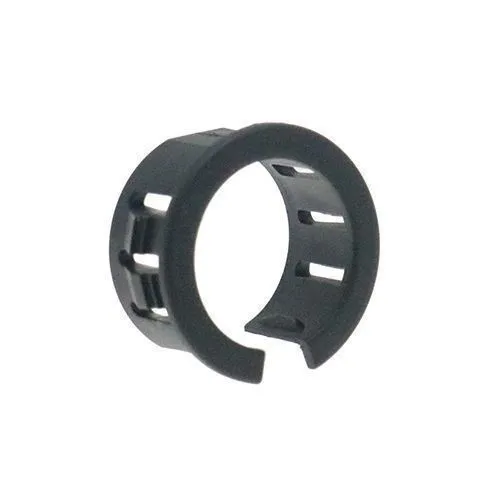

27.1mm Open/Closed Bush | 22.9mm Max Cable | Black Nylon
Built for a 27.1mm mounting hole, this split snap bushing is suited to cable management tasks where the cable diameter must be protected up to 22.9mm.
Made from UL94V-2 rated Nylon 6/6, the bush helps insulate the cable from the panel edge and gives the hole a cleaner finished appearance. Installers specifying 27.1mm split body cable bush can use it for black nylon panel bush, especially where cable protection and a tidy black panel finish are both required.
What Are Open/Closed Bushes?
Open closed snap fit bushes are panel fittings used to cover sharp or unfinished hole edges around cable entry points. Their split body makes them useful for electrical cabinets, machinery guards and maintenance repairs.
Common Applications
- Cabinet wiring for lighting and signage projects
- Cable protection in retail display equipment
- Retrofitted cable guides on existing panels
- General engineering cable entry finishing

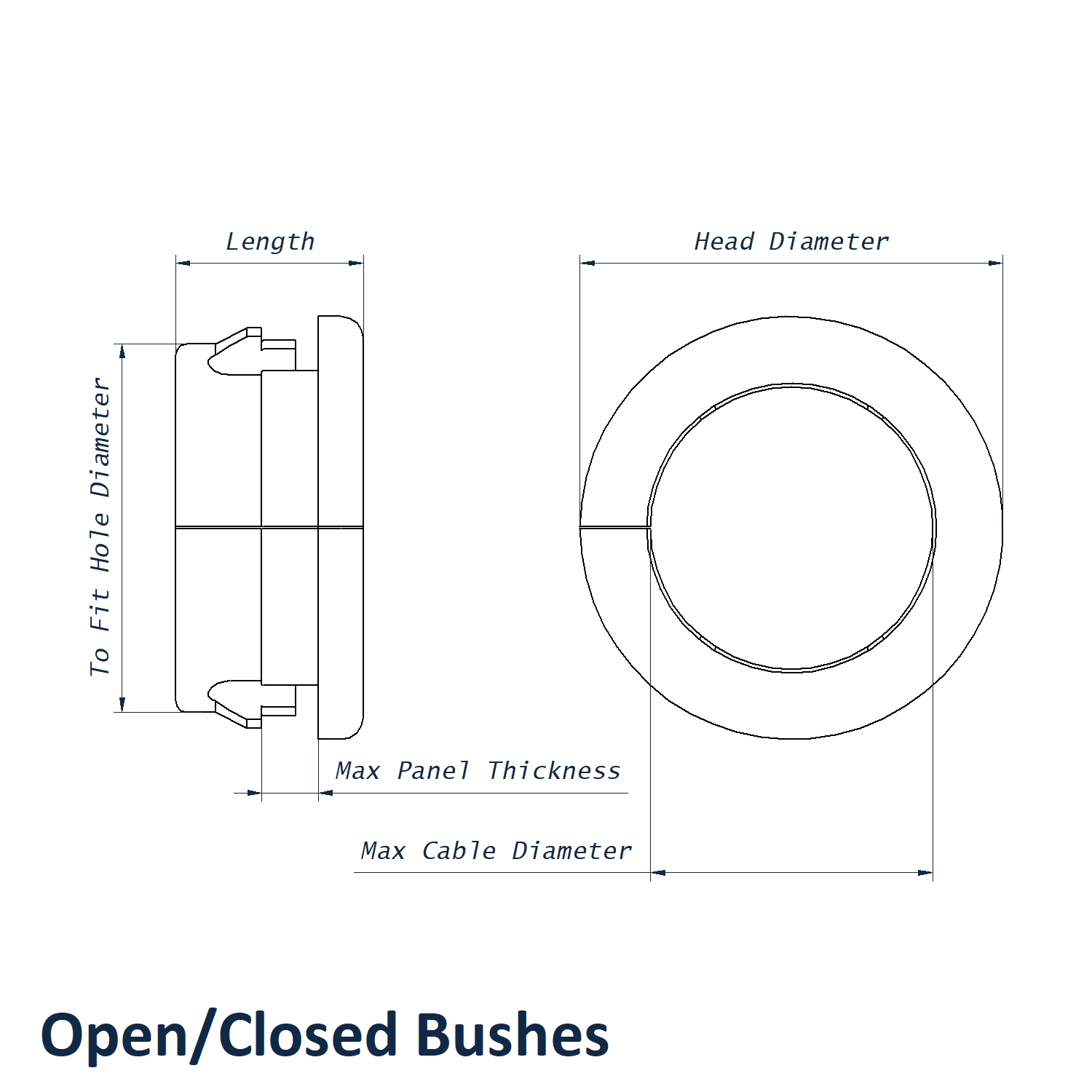

27.1mm x 6mm Black Open/Closed Bush Dimensions
- To Fit Hole Diameter: 27.1mm
- Max Panel Thickness: 1.0mm
- Max Cable Diameter: 22.9mm
- Head Diameter: 35.1mm
- Length: 6.0mm
- Material: Nylon
- Colour: Black
Open/Closed Bush Range
View our full Open/Closed Bushes range for split cable bushing options across different hole diameters, cable sizes and panel thicknesses.
Product Support and Trade Orders
Need support choosing a snap fit cable bush for a cabinet, machine panel or wiring job? Contact our team on 01233 713581 for sizing advice, stock support and trade order assistance.
