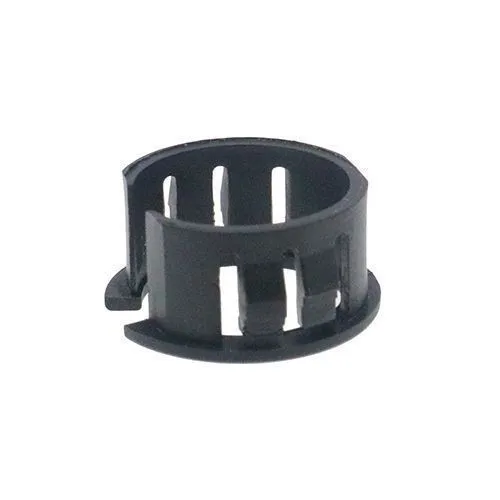

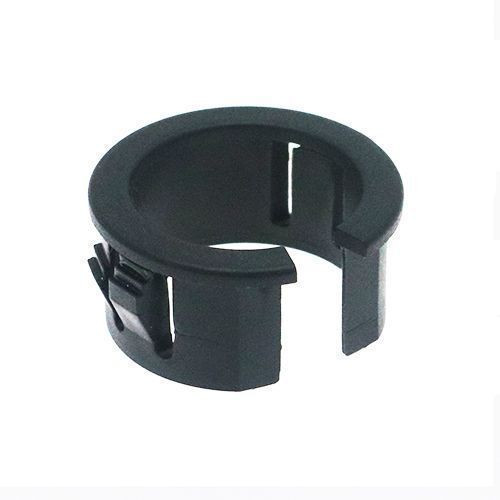

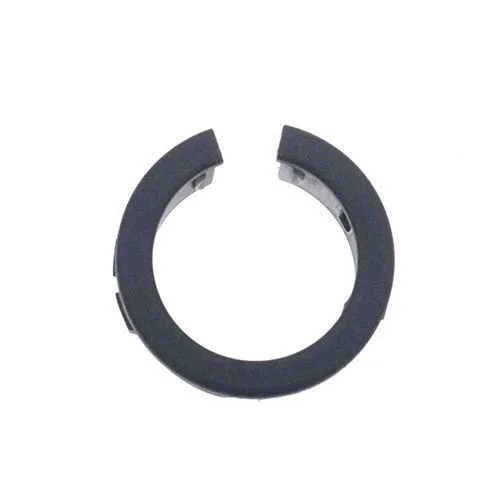

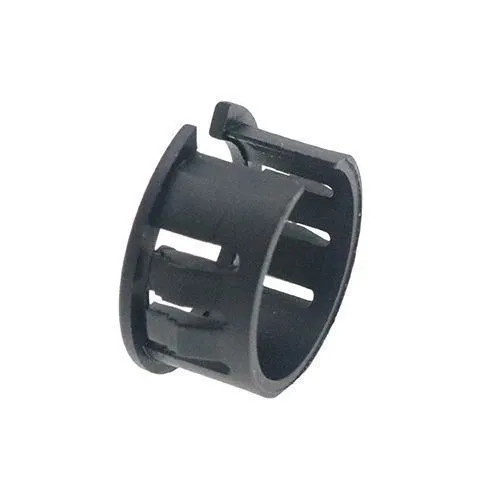

Open/Closed Snap Fit Bushes - SFB087

Open/Closed Bushes - 29mm To Fit Hole Diameter - 1.1mm Max Panel Thickness - 24.5mm Max Cable Diameter - 7mm Length - Nylon 6/6 | Vital Parts - SFB087

Our Open/Closed Bushes, also known as Split Cable Bushings, are a practical cable management solution designed to insulate, protect, and support cables passing through panel holes. These bushes feature a versatile split design that allows easy installation around pre-installed or bulky cables, making them ideal for electrical panels, enclosures, and machinery.

What are Open/Closed Bushes?

Open/Closed Bushes are specially designed cable bushings made from UL94V-2 rated Nylon 6/6, a flame-retardant material that ensures safety and durability in electrical applications. The term "open/closed" refers to their split-body design, which enables the bush to be opened and wrapped around a cable before snapping securely into a panel hole. This makes them highly adaptable for use with varying cable diameters and installation situations where cables are already in place. Multiple locking steps on the bushing ensure a tight fit across a range of panel thicknesses, making them ideal for both OEM and retrofit applications.

Key Features:

• Manufactured from flame-retardant Nylon 6/6 (UL94V-2 rated)
• Split design allows installation without disconnecting cables
• Suitable for a range of cable diameters and panel thicknesses
• Secure snap-fit into panel holes for quick and reliable assembly
• Multiple locking steps accommodate different panel thicknesses
• Available in hole sizes from 7mm to 63.5mm

Key Applications and Industries

Open/Closed Bushes are used extensively across the UK in industries requiring safe and efficient cable routing, including:

• Electrical enclosures and distribution boxes
• Control panels and industrial machinery
• Telecommunications and data centres
• Consumer electronics and appliances
• Automotive and transportation systems

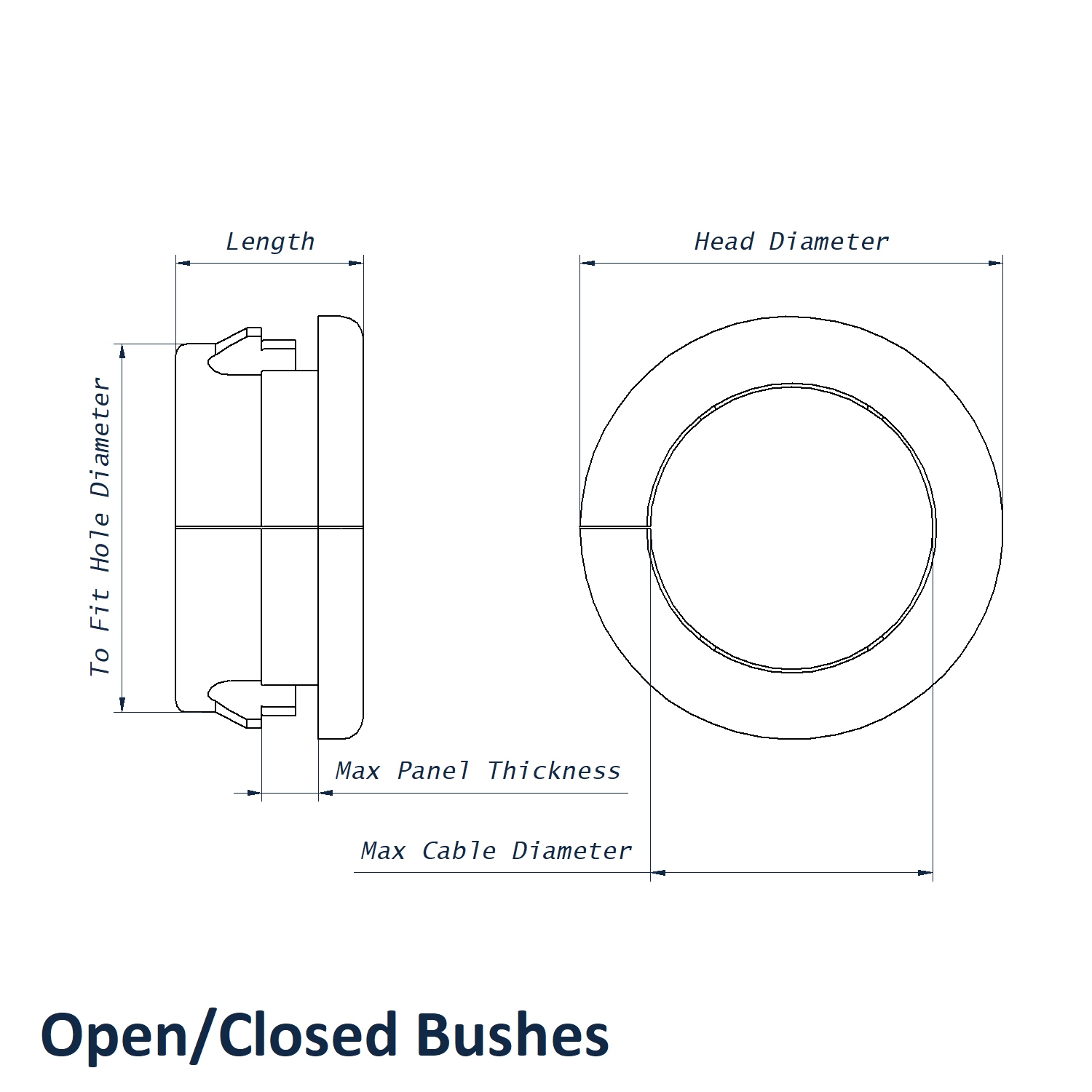

Technical Specifications

• To Fit Hole Diameter : 29mm
• Max Panel Thickness : 1.1mm
• Max Cable Diameter : 24.5mm
• Head Diameter : 35.1mm
• Length : 7mm
• Material: Nylon 6/6 (UL94V-2 flame-retardant)
• Design: Split (open/closed) for snap-fit installation
• Locking Mechanism: Multi-step for varied panel thicknesses
• Temperature Range: Typically -40°C to +105°C

Our Open/Closed Bushes are ideal for:

• Retrofitting cable protection onto pre-assembled electrical systems
• Providing insulation and strain relief for wiring passing through enclosures
• Accommodating multiple cable sizes with a single component
• Protecting sensitive wiring from edge abrasion and environmental damage

Benefits:

• Simple and tool-free snap-fit installation
• Flame-retardant material ensures safety in electrical environments
• Split design allows use without disconnecting pre-wired systems
• Cost-effective and reusable solution for cable management
• Reduces wear and risk of damage to cables

Why Choose Vital Parts?

Vital Parts is a trusted UK supplier of premium fasteners and industrial components, dedicated to delivering a customer-focused service with the following advantages:

• Same-Day Dispatch: Prompt and dependable shipping to keep your projects moving.
• Competitive Trade Pricing: Save more with discounted rates on bulk purchases.
• Expert Technical Support: Get guidance from our experienced team for choosing the right products and applications.

Open/Closed Bushes are an essential component for safe and reliable cable routing in industrial, commercial, and domestic environments. With a wide size range and flame-retardant construction, they deliver reliable performance and easy installation for both new builds and retrofit systems. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
