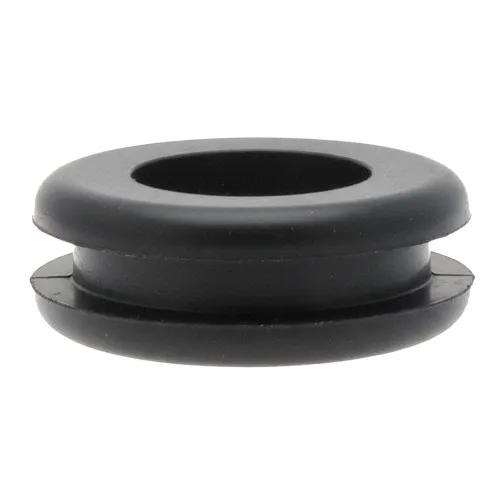

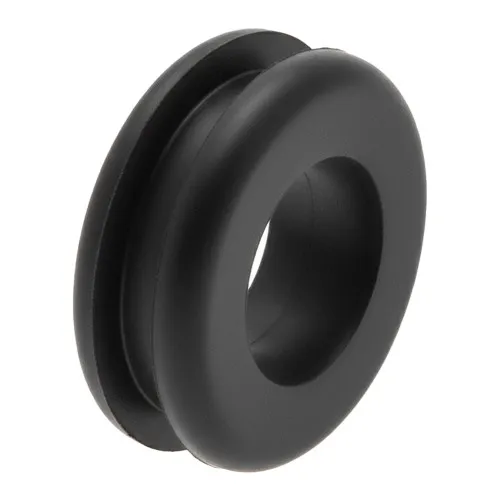

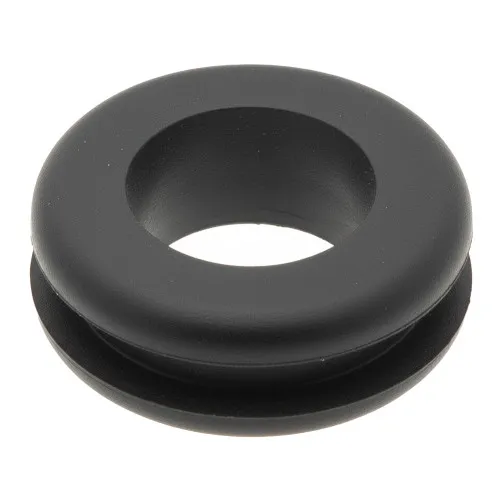

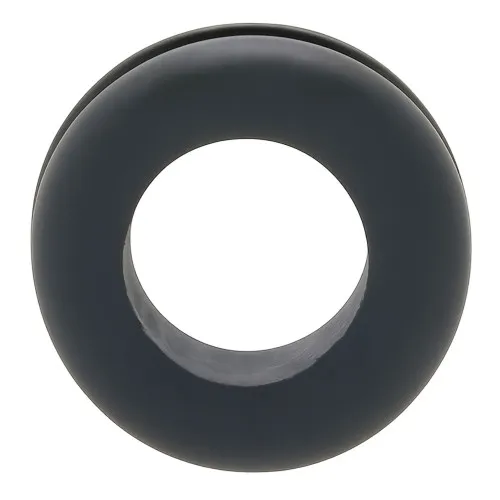

7.7mm Open Grommet - 9.3mm Mounting Hole (For 1.6mm Panel) Black PVC
Product code:
OPG101
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 499 | £0.06 | £0.07 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 - 9999 | £0.03 | £0.03 |
| 10000 + | £0.02 | £0.02 |
£0.10
/ each
Quantity:
Product Specification
| Mounting Hole Diameter | 9.3mm |
| Panel Thickness | 1.6mm |
| Internal Diameter | 7.7mm |
| Height | 6.0mm |
| Outside Diameter | 13.4mm |
| Colour | Black |
| Material | PVC |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
Open Grommet - 9.3mm Mounting Hole Diameter - 7.7mm Internal Diameter

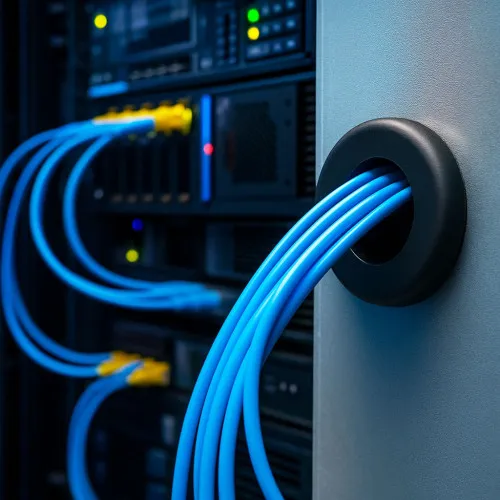

Where cables pass through drilled or punched openings, these 9.3mm Open Grommets help minimise vibration damage while improving the appearance of the finished installation. Their 6mm height contributes to effective edge coverage.
Manufactured from Black PVC, these 9.3mm Grommets combine flexibility with durability to enable quick installation into prepared openings. EPDM offers good resistance to moisture, weathering and general environmental exposure, making these grommets suitable for both indoor and outdoor applications.
Common Applications
- Cable and wire protection
- Electrical enclosures and control panels
- Machinery and equipment manufacture
- Engineering and fabrication projects

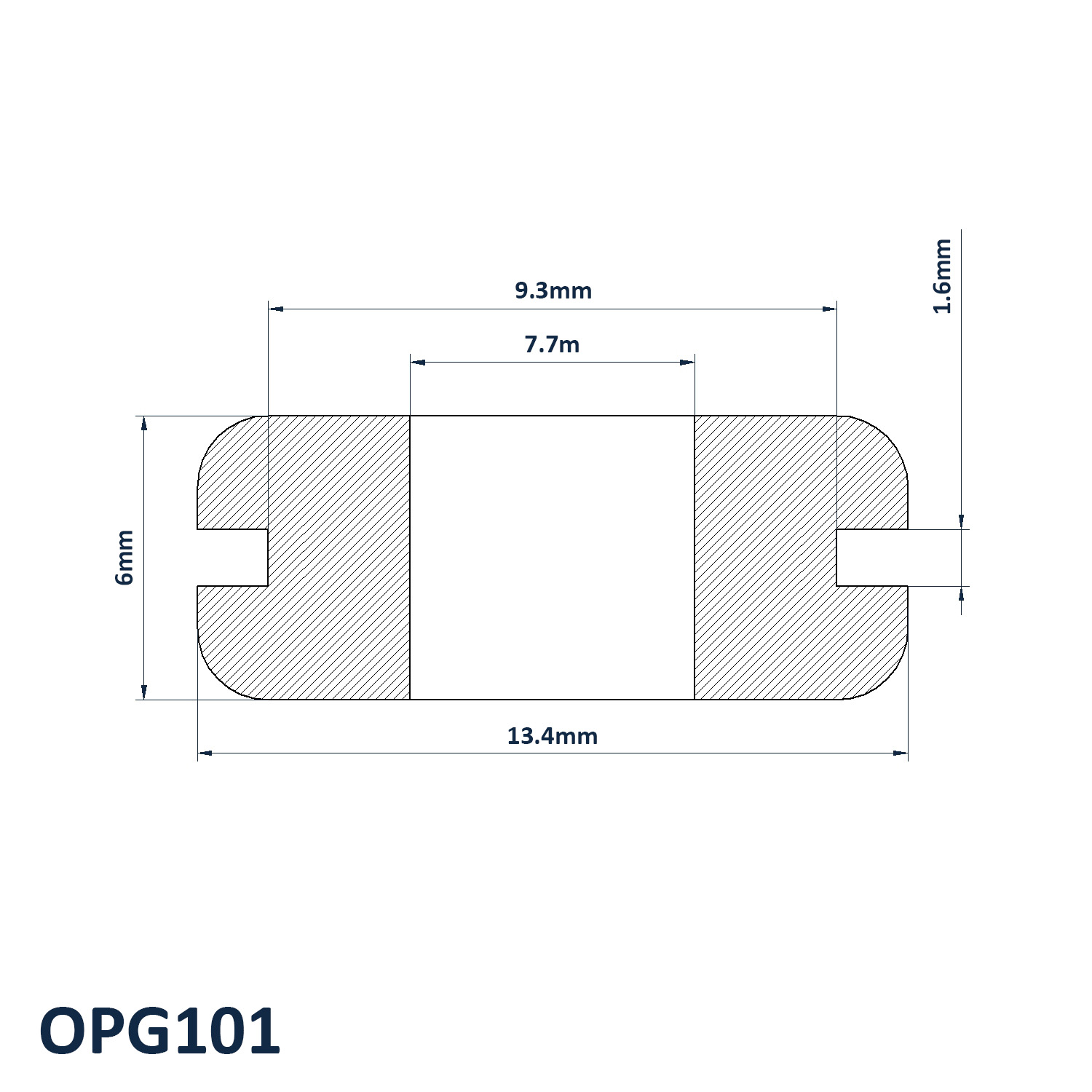

9.3mm Open Grommet Dimensions
- Mounting Hole Diameter: 9.3mm
- Panel Thickness: 1.6mm
- Internal Diameter: 7.7mm
- Height: 6mm
- Outside Diameter: 13.4mm
- Colour: Black
- Material: PVC
View our full Open Grommet range or browse our Cable Management collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
