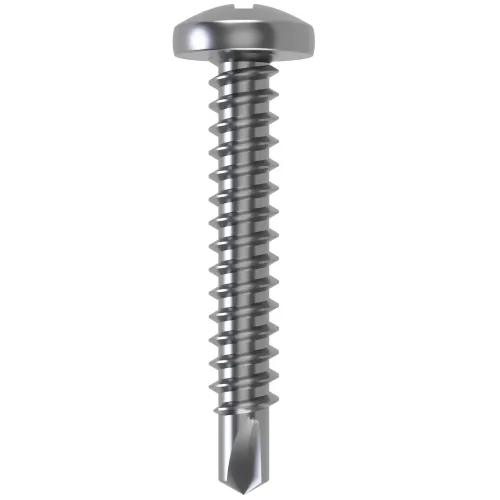

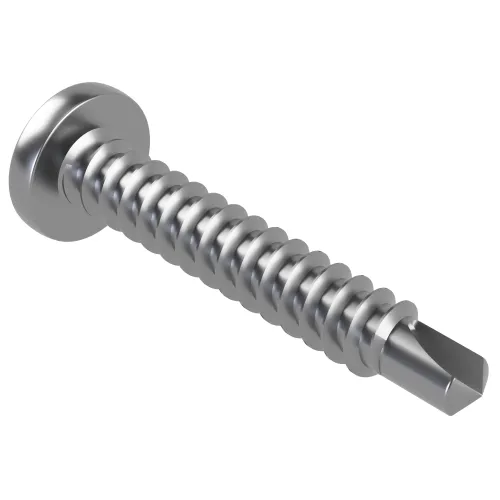

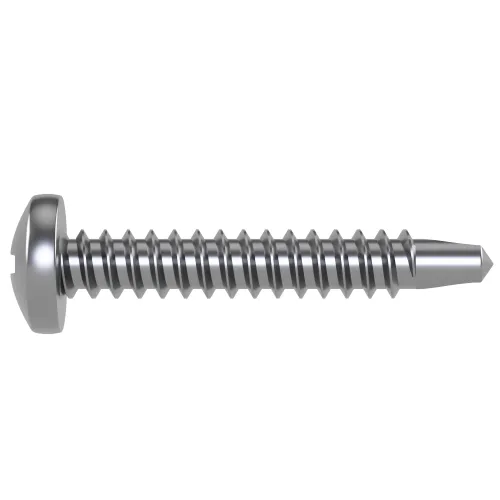

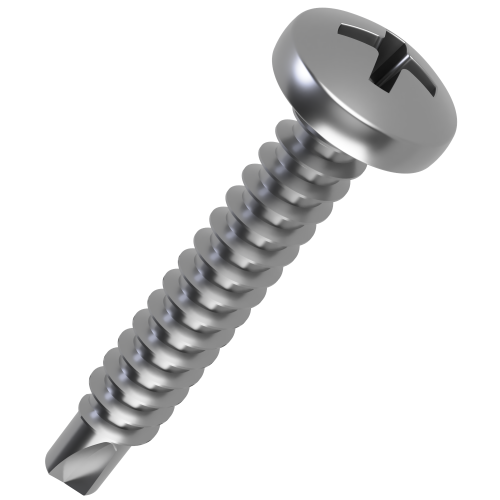

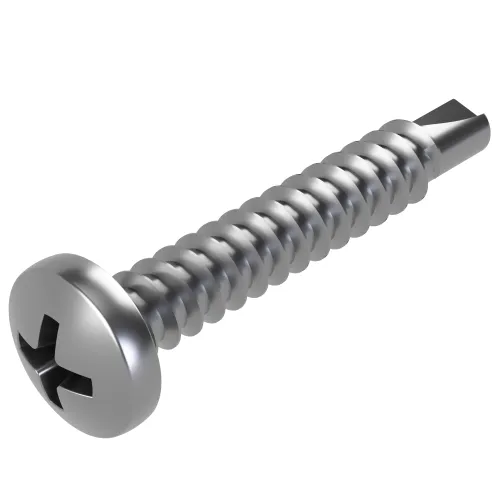

6.3mm x 22mm Phillips Pan Head Self Drilling Screw DIN 7504MH | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.22 | £0.26 |
| 2000 - 4999 | £0.16 | £0.19 |
| 5000 + | £0.12 | £0.15 |
£0.26 / each
.png)
Product Specification
| Thread Size | 6.3mm |
| Thread Length | 22mm |
| Drive | PH3 |
| Head Diameter | 12.0mm |
| Head Height | 4.6mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 22mm Phillips Pan Head Self Drilling Screw | DIN 7504MH | A2 Stainless Steel
Designed for sheet metal fabrication and light-gauge steel assemblies, this 6.3mm x 22mm pan head self drilling screw combines an integrated drill point with a self-tapping thread. The rounded pan head gives a neat installed finish while its flat underside provides a broad bearing surface against the fixed component. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
Pan Head Self Drilling Screws combine a drill point and self-tapping thread in one fastener. The point cuts through compatible sheet metal before the threaded section forms a mating thread, allowing the screw to drill and fasten during the same operation in suitable materials. DIN 7504MH specifies a pan head self drilling screw with a Phillips recess.
Common Applications
- Sheet Metal Fabrication: Joins overlapping sheets, lightweight sections, covers and fabricated metal components.
- Electrical Enclosures: Secures panels, access covers, mounting plates and internal brackets in suitable enclosures.
- HVAC and Ventilation: Fastens ducting, vents, air-handling components and associated metal fittings.
- Machinery and Equipment: Provides a practical fixing for guards, casings, control panels and light equipment assemblies.

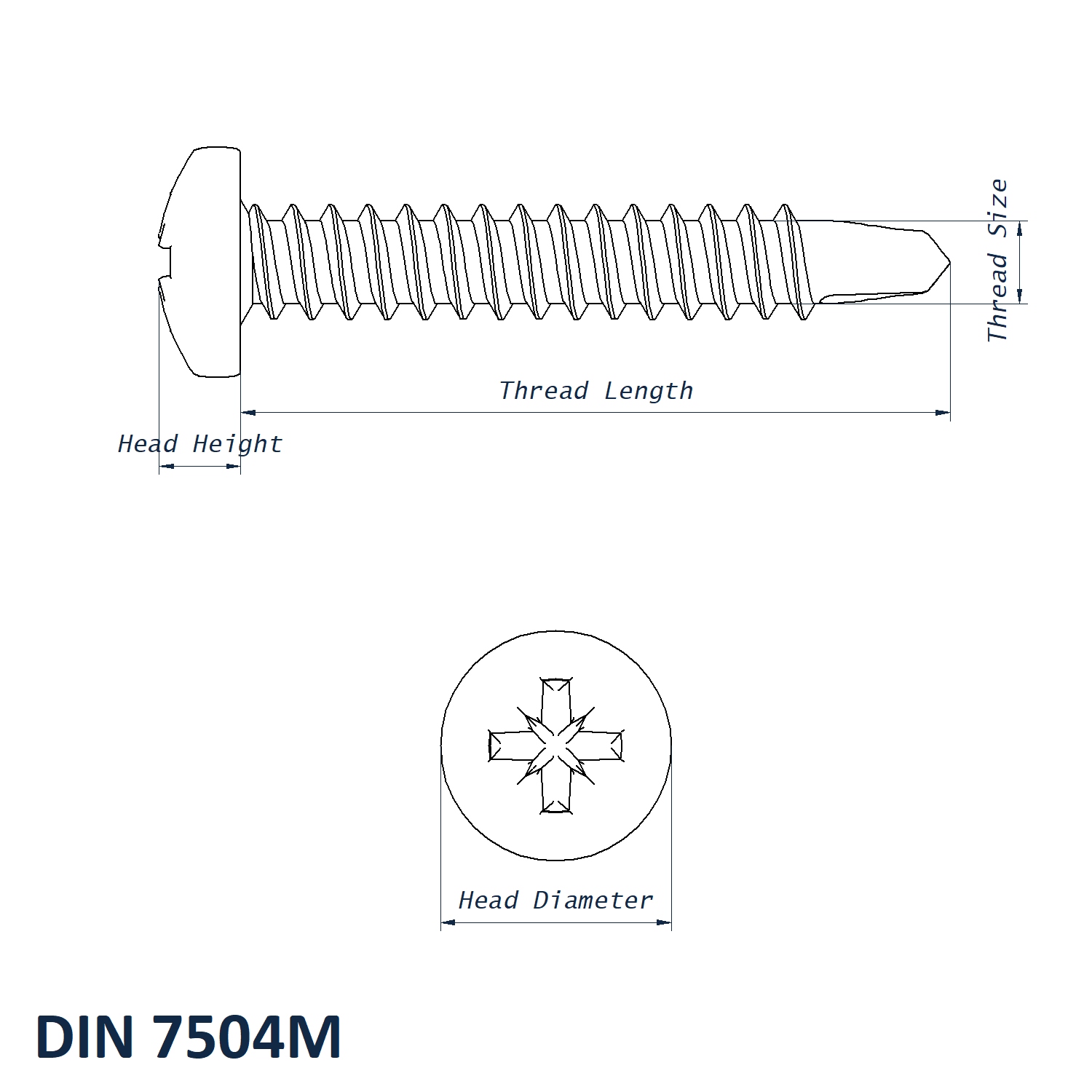

6.3mm x 22mm DIN 7504MH Pan Head Self Drilling Screw Dimensions
- Thread Size: 6.3mm
- Thread Length: 22mm
- Head Height: 4.6mm
- Head Diameter: 12.0mm
- Drive: PH3
- Standard: DIN 7504MH
- Material: A2 Stainless Steel
Key Benefits
- Integrated drill point can reduce separate pilot-drilling operations in suitable metal.
- Flat underside of the pan head provides a broad clamping surface against panels and brackets.
- 4.6mm head height gives the stated pan-head profile.
- PH3 drive matches the specified driver or bit for installation.
View the full Pan Head Self Drilling Screws range to compare diameters, lengths, drive styles and materials. Our wider Self Drilling Screws range includes additional head styles, drive types and fastening options. If you need help choosing the correct screw for your material thickness, call us on 01233 713581.
