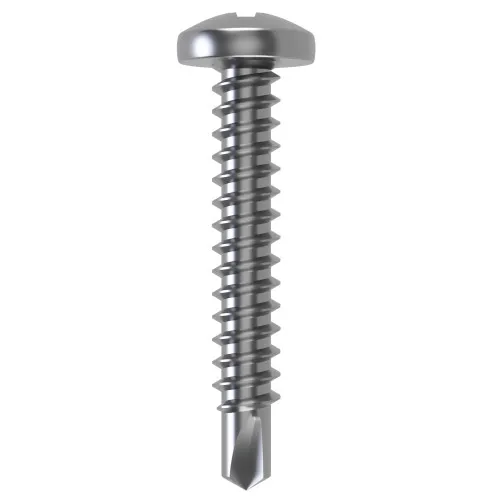

4.8mm x 50mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.12 | £0.15 |
| 2000 - 4999 | £0.08 | £0.10 |
| 5000 + | £0.07 | £0.08 |
£0.15 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Thread Length | 50mm |
| Drive | PZ3 |
| Head Diameter | 9.5mm |
| Head Height | 3.7mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
4.8mm x 50mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A2 Stainless Steel
For general construction brackets and metal framing accessories, this 4.8mm x 50mm Pozidriv self drilling screw can cut through compatible sheet metal before its thread engages the receiving material. This allows drilling and fastening to be completed with one fastener in many suitable assemblies. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
A Pan Head Self Drilling Screw is designed to create its own entry hole and thread in compatible metal. The rounded upper head gives a neat finish while the flat underside provides a broad bearing area for securing panels, brackets and thinner components. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
4.8mm x 50mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.8mm
- Thread Length: 50mm
- Head Height: 3.7mm
- Head Diameter: 9.5mm
- Drive: PZ3
- Standard: DIN 7504MZ
- Material: A2 Stainless Steel
Key Benefits
- A2 Stainless Steel construction provides the specified material and finish for the application.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- 4.8mm thread diameter with 50mm thread length provides the main screw dimensions.
- 9.5mm head diameter provides the bearing width beneath the rounded head.
Browse the complete Pan Head Self Drilling Screw collection for other lengths, diameters and materials. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. We can help you select the right fastener on 01233 713581.
