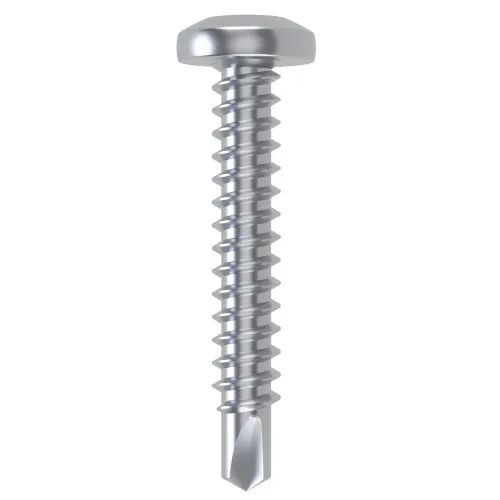

5.5mm x 19mm Torx Pan Head Self Drilling Screw DIN 7504N | Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.07 | £0.09 |
| 2000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.04 | £0.05 |
£0.09 / each
Product Specification
| Thread Size | 5.5mm |
| Thread Length | 19mm |
| Drive | T25 |
| Head Diameter | 11.0mm |
| Head Height | 4.0mm |
| Material | Steel BZP |
| Standard | DIN 7504N |
Frequently Bought Together
Total Price: £0.00
5.5mm x 19mm Torx Pan Head Self Drilling Screw | DIN 7504N | Steel BZP
Providing drilling and fastening in one operation, this 5.5mm x 19mm pan head self drilling screw is suited to control cabinets, electrical equipment and fabricated housings. Its T25 drive, 11.0mm head diameter and 4.0mm head height provide the key installation dimensions for this fastener. The zinc-plated steel construction provides a practical finish for general indoor and protected engineering applications.
What Are Pan Head Self Drilling Screws?
A Pan Head Self Drilling Screw is designed to create its own entry hole and thread in compatible metal. The rounded upper head gives a neat finish while the flat underside provides a broad bearing area for securing panels, brackets and thinner components. DIN 7504N defines the pan head self drilling screw format used for this metric fastening option.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
5.5mm x 19mm DIN 7504N Pan Head Self Drilling Screw Dimensions
- Thread Size: 5.5mm
- Thread Length: 19mm
- Head Height: 4.0mm
- Head Diameter: 11.0mm
- Drive: T25
- Standard: DIN 7504N
- Material: Steel BZP
Key Benefits
- Flat underside of the pan head provides a broad clamping surface against panels and brackets.
- 5.5mm thread diameter with 19mm thread length provides the main screw dimensions.
- T25 drive matches the specified driver or bit for installation.
- Steel BZP construction provides the specified material and finish for the application.
See our wider Pan Head Self Drilling Screws category for alternative standards and drive types. Check out our wider Self Drilling Screws range for other self-drilling and self-threading screw styles. For product-selection support, speak with our team on 01233 713581.
