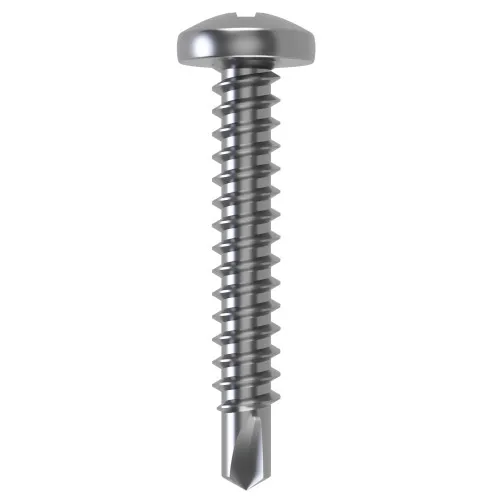

6.3mm x 25mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 200 - 1999 | £0.21 | £0.25 |
| 2000 - 4999 | £0.15 | £0.18 |
| 5000 + | £0.12 | £0.14 |
£0.25 / each
Product Specification
| Thread Size | 6.3mm |
| Thread Length | 25mm |
| Drive | PZ3 |
| Head Diameter | 12.0mm |
| Head Height | 4.6mm |
| Material | A4 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
6.3mm x 25mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A4 Stainless Steel
Made for efficient metal fastening, this 6.3mm x 25mm pan head self drilling screw uses a drill-shaped point to penetrate compatible material before the thread forms its mating path. The PZ3 drive provides the specified tool engagement for controlled installation. The A4 Stainless Steel construction is suited to applications where increased resistance to moisture and corrosive environments is required.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
6.3mm x 25mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 6.3mm
- Thread Length: 25mm
- Head Height: 4.6mm
- Head Diameter: 12.0mm
- Drive: PZ3
- Standard: DIN 7504MZ
- Material: A4 Stainless Steel
Key Benefits
- 12.0mm head diameter provides the bearing width beneath the rounded head.
- DIN 7504MZ identifies the standard or drive format for this product.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
Browse the complete Pan Head Self Drilling Screw collection for other lengths, diameters and materials. We also stock other self-drilling and self-threading fastening styles in our complete Self Drilling Screws range. We can help you select the right fastener on 01233 713581.
