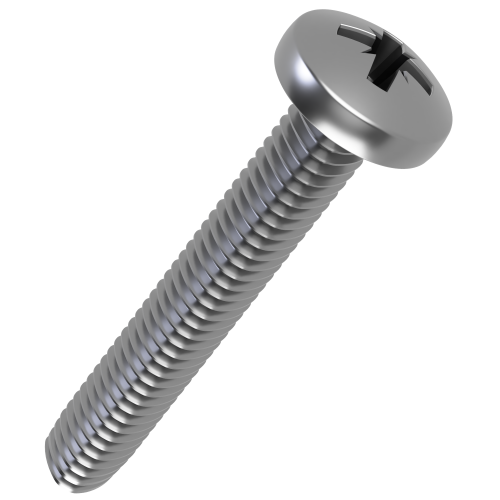

M2.5 x 6mm Pozi Pan Head Thread Forming Screw DIN 7500CZ | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.21 | £0.25 |
| 100 - 499 | £0.17 | £0.21 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.03 | £0.03 |
Product Specification
| Drive | PZ1 |
| Head Diameter | 5.00mm |
| Head Height | 2.12mm |
| Material | A2 Stainless Steel |
| Pitch | 0.45mm |
| Standard | DIN 7500CZ |
| Thread Length | 6mm |
| Thread Size | M2.5 |
Frequently Bought Together
Total Price: £0.00
M2.5 x 6mm Pozi Pan Head Thread Forming Screw DIN 7500CZ A2 Stainless Steel TF7500CZ-M2.5-6-A2
The M2.5 x 6mm Pozi Pan Head Thread Forming Screw DIN 7500CZ A2 Stainless Steel is a thread forming fastener designed to create a secure metric thread during installation into a correctly sized pre-drilled hole in suitable ductile materials. The pan head provides a broad bearing surface and a neat, low-profile finish, while the Pozi drive supports positive tool engagement and controlled assembly. Manufactured from A2 Stainless Steel, this screw provides good corrosion resistance for industrial, engineering and general assembly applications.
What are Pozi Pan Head Thread Forming Screws?
Pozi pan head thread forming screws are designed to form a mating thread by displacing material rather than cutting and removing it. This can eliminate the need for a separate tapping operation in suitable applications, helping to simplify assembly. The pan head design offers a larger bearing area than countersunk alternatives and is suitable where a flush finish is not required.
Technical Specifications:
- Thread Size: M2.5
- Thread Length: 6mm
- Head Diameter: 5.00mm
- Head Height: 2.12mm
- Pitch: 0.45mm
- Drive: PZ1
- Standard: DIN 7500CZ
- Material: A2 Stainless Steel
Applications:
- Sheet metal and fabricated assemblies with suitable pre-drilled holes
- Electrical and electronic equipment
- Machinery, enclosures and industrial assemblies
- General engineering and manufacturing applications
- Production environments where eliminating a separate tapping operation is beneficial
Benefits:
- Forms a reusable metric thread during installation
- Pan head provides a broad bearing surface
- Pozi drive supports positive tool engagement during assembly
- Can reduce production steps by removing the need for pre-tapping in suitable applications
- A2 Stainless Steel provides good corrosion resistance
- Manufactured to DIN 7500CZ
