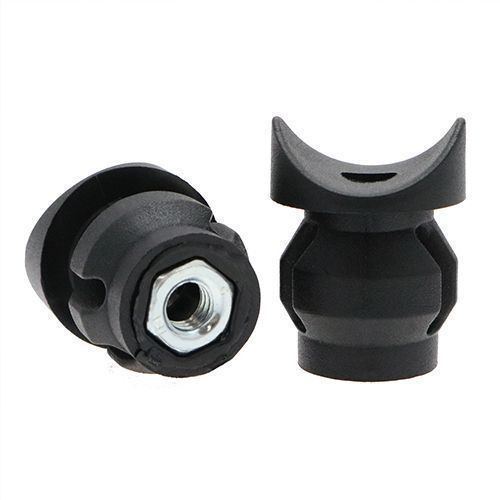

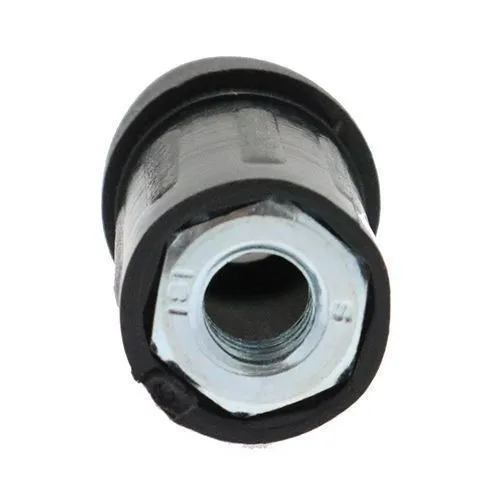

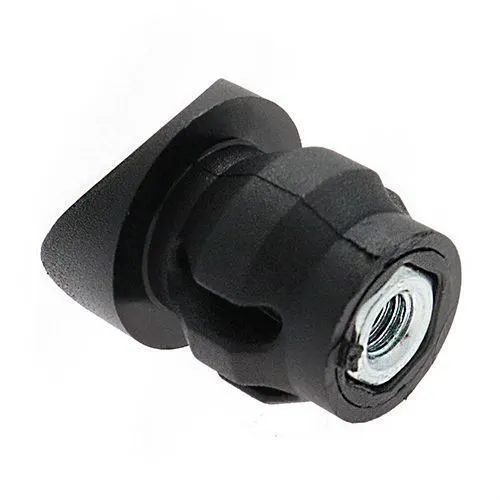

23mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.92 | £1.10 |
| 100 - 249 | £0.77 | £0.92 |
| 250 - 499 | £0.64 | £0.77 |
| 500 - 999 | £0.53 | £0.64 |
| 1000 + | £0.44 | £0.53 |
£1.10 / each
Product Specification
| Outside Diameter | 23mm |
| Wall Thickness | 1.0mm |
| Internal Length | 20mm |
| Thread Size | M6 |
| Style | Expanding |
| Material | Nylon |
Frequently Bought Together
- Thread Size M10
- Material Spring Steel
- Colour Chrome
- Outside Diameter 51mm
- Wall Thickness 1.5mm
- Material Nylon
- Colour Black
- Outside Diameter 20mm
- Wall Thickness 1.5mm
- Internal Length 37mm
- Thread Size M6
- Material Nylon
- Outside Diameter 23mm
- Wall Thickness 1.0mm
- Internal Length 20mm
Total Price: £0.00
23mm Saddle Tube Connector – 1mm Wall | M6 Thread, Nylon (Expanding)
Where a tubular framework needs a T-section connection, this 23mm Nylon saddle tube connector is an option for tubing with 1mm walls. The M6 thread offers a fixing point while the 20mm internal length describes the portion installed within the round section.
What Are Saddle Tube Connectors?
A saddle connector helps create a tube-to-tube junction where a round section needs an internally positioned threaded connection. Matching the outside tube diameter and wall thickness is essential. We also offer tube connectors for round and square tubing for alternative frame geometries.
Common Applications
- Equipment Supports: Creating T-shaped connections in non-structural round-tube support frames and protective assemblies.
- Storage Systems: Joining compatible circular tube members in lightweight storage racks and organising frames.
- Furniture Repairs: Replacing a compatible internal junction fitting in a round tubular furniture frame.
- Furniture Frames: Joining round tubular sections in compatible chair, table or shelving frameworks where an M6 connection is specified.

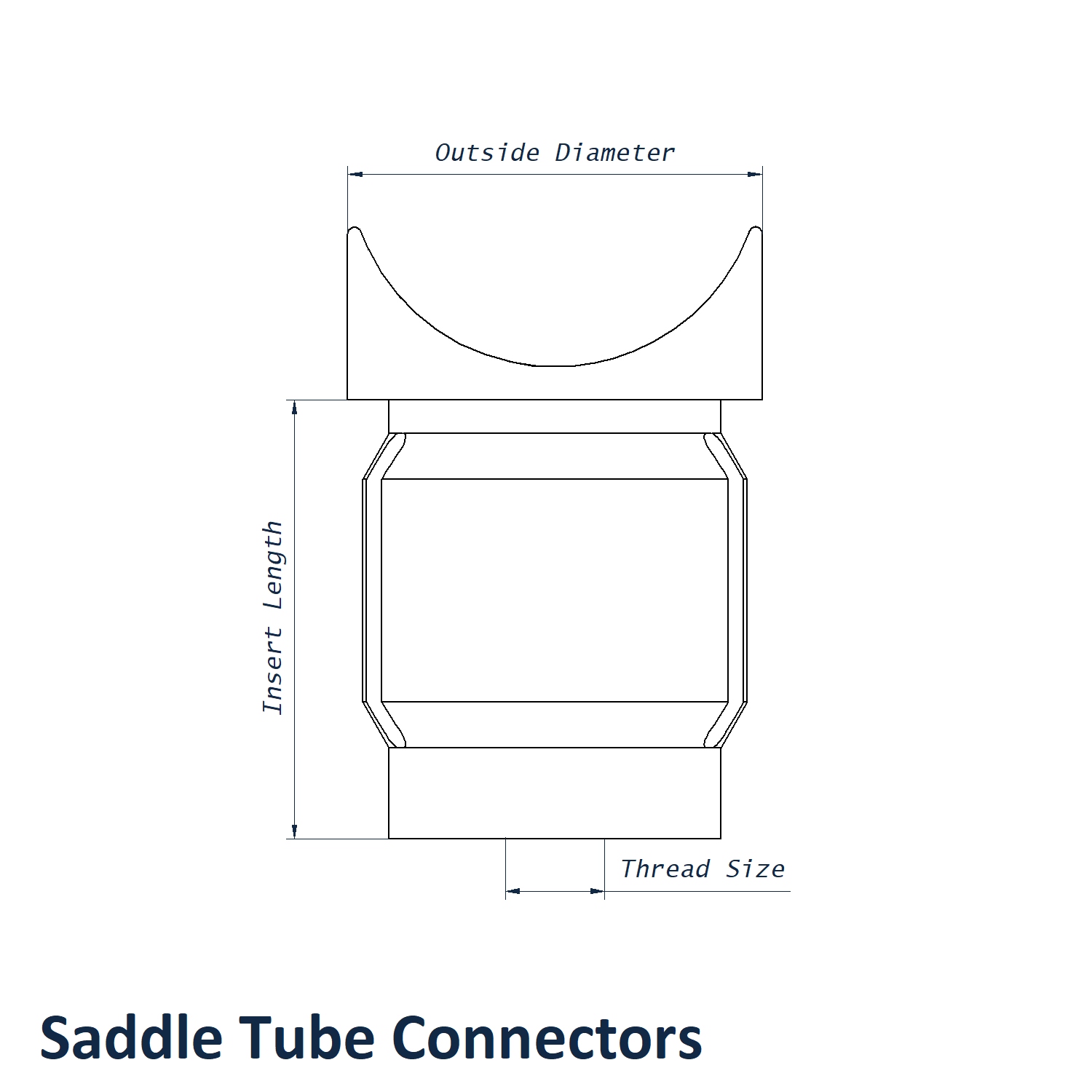

23mm M6 Saddle Tube Connector Dimensions
- Outside Diameter: 23mm
- Wall Thickness: 1mm
- Internal Length: 20mm
- Thread Size: M6
- Material: Nylon
- Style: Expanding
Key Benefits
- The M6 threaded connection provides a defined fastening point for compatible components.
- Nylon construction provides a non-metallic connector body for the tubular assembly.
- A separate threaded connection allows suitable assemblies to be dismantled for adjustment or repair.
- The 23mm outside diameter specification helps identify suitable round tube sections.
Compare other threaded saddle tube fittings to select the dimensions required by your frame. If you need help selecting the correct connector, call us on 01233 713581.
| Code | Thread Size | Style | Material | Outside Diameter | Wall Thickness | Internal Length | Stock | |
|---|---|---|---|---|---|---|---|---|
| TC076 | M6 | Expanding | Nylon | 20mm | 1.5mm | 20mm |
Checking...
|
|
| TC078 | M6 | Expanding | Nylon | 22mm | 1.5mm | 20mm |
Checking...
|
|
| TC077 | M6 | Expanding | Nylon | 22mm | 1mm | 20mm |
Checking...
|
|
| TC081 | M6 | Expanding | Nylon | 24mm | 1.5mm | 20mm |
Checking...
|
|
| TC080 | M6 | Expanding | Nylon | 24mm | 1.0mm | 20mm |
Checking...
|
|
| TC082 | M6 | Expanding | Nylon | 25mm | 1.0mm | 20mm |
Checking...
|
|
