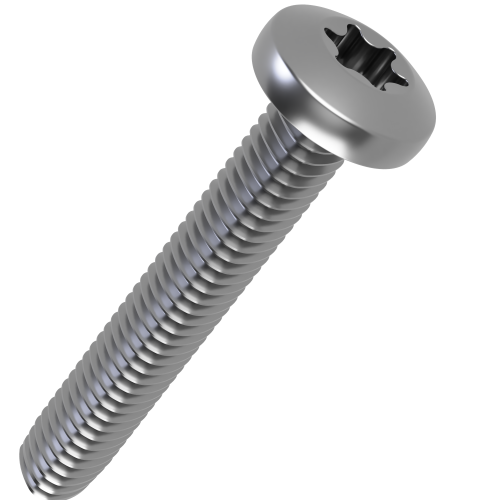

M3 x 16mm Torx Pan Head Thread Forming Screw DIN 7500CT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.38 | £0.45 |
| 100 - 499 | £0.31 | £0.37 |
| 500 - 999 | £0.18 | £0.22 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.04 | £0.05 |

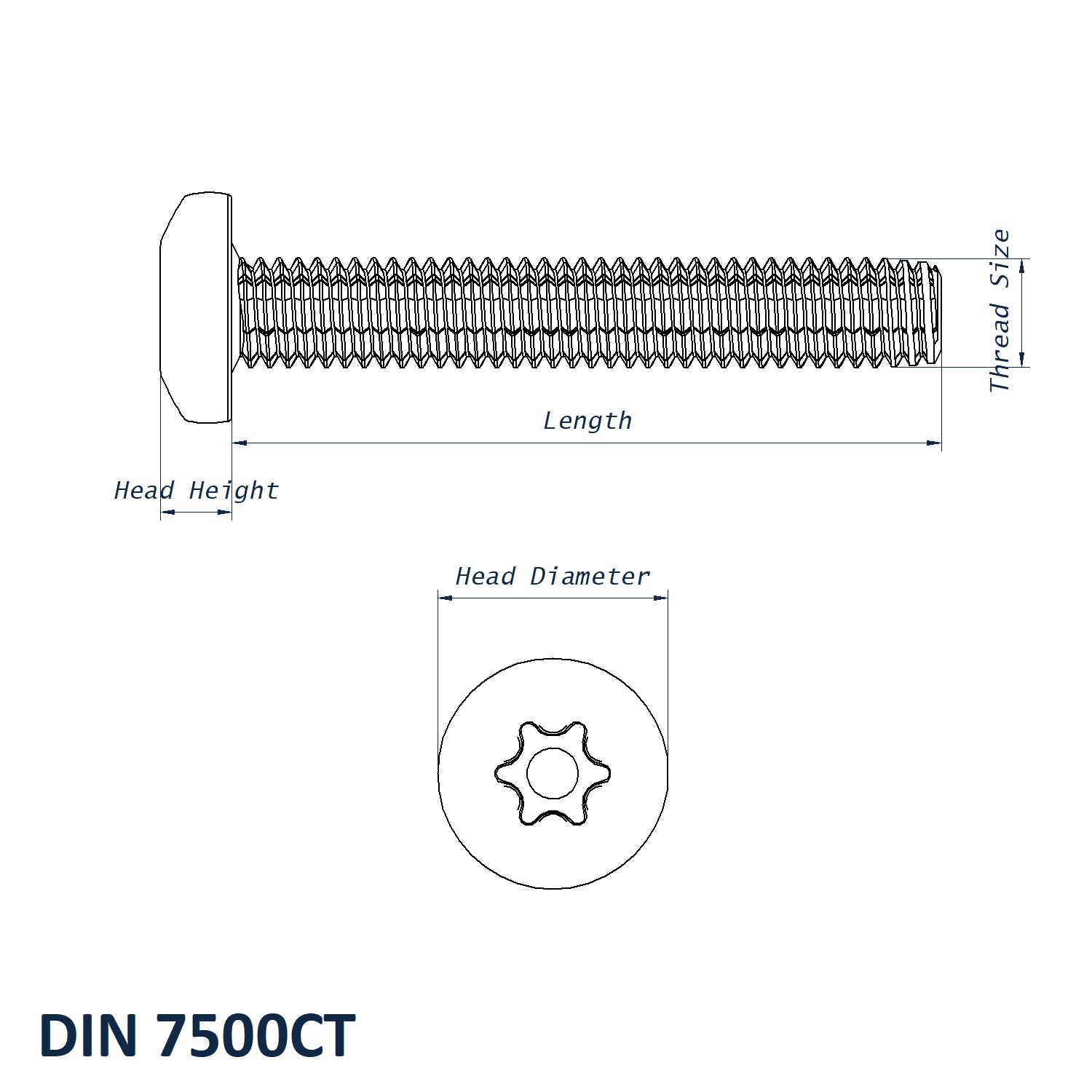

Product Specification
| Drive | T10 |
| Head Diameter | 6.00mm |
| Head Height | 2.52mm |
| Material | A2 Stainless Steel |
| Pitch | 0.5 |
| Standard | DIN 7500CT |
| Thread Length | 16mm |
| Thread Size | M3 |
Frequently Bought Together
Total Price: £0.00
M3 x 16mm Torx Pan Head Thread Forming Screw DIN 7500CT A2 Stainless Steel TF7500CT-M3-16-A2
The M3 x 16mm Torx Pan Head Thread Forming Screw DIN 7500CT A2 Stainless Steel is a thread forming fastener designed to create a secure metric thread when installed into a correctly sized pre-drilled hole in suitable ductile materials. Its pan head provides a broad bearing surface and a neat finished appearance, while the Torx drive offers positive tool engagement and efficient torque transfer during installation. Manufactured from A2 Stainless Steel, this screw provides good corrosion resistance for a wide range of engineering and industrial applications.
What are Torx Pan Head Thread Forming Screws?
Torx pan head thread forming screws are designed to displace and form material rather than cut and remove it. This creates a mating thread directly during installation and can reduce the need for a separate tapping operation. The pan head provides a larger bearing area than countersunk styles, while the Torx recess helps provide secure driver engagement and controlled installation.
Technical Specifications:
- Thread Size: M3
- Thread Length: 16mm
- Head Diameter: 6.00mm
- Head Height: 2.52mm
- Pitch: 0.5
- Drive: T10
- Standard: DIN 7500CT
- Material: A2 Stainless Steel
Applications:
- Sheet metal and fabricated assemblies with suitable pre-drilled holes
- Electrical and electronic equipment
- Machinery, housings and industrial assemblies
- Applications requiring a broad pan head bearing surface
- Automated and production assembly where reliable drive engagement is beneficial
Benefits:
- Forms a reusable metric thread during installation
- Pan head provides a broad load-bearing surface
- Torx drive offers positive engagement and efficient torque transfer
- Can reduce production steps by removing the need for pre-tapping in suitable applications
- A2 Stainless Steel provides good corrosion resistance
- Manufactured to DIN 7500CT
