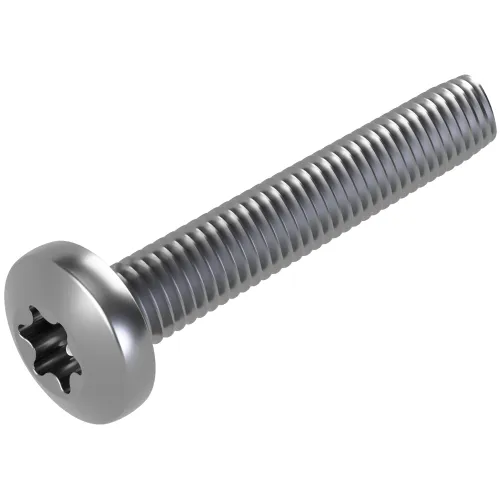

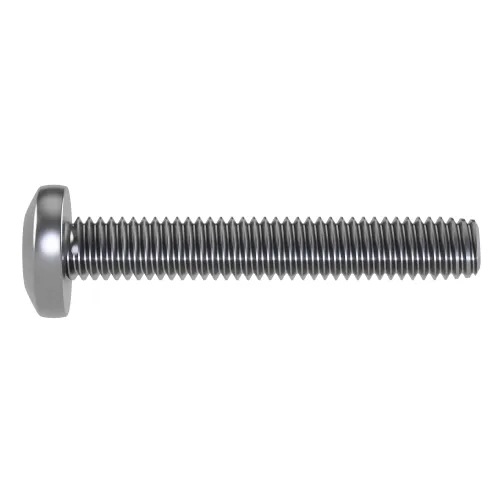

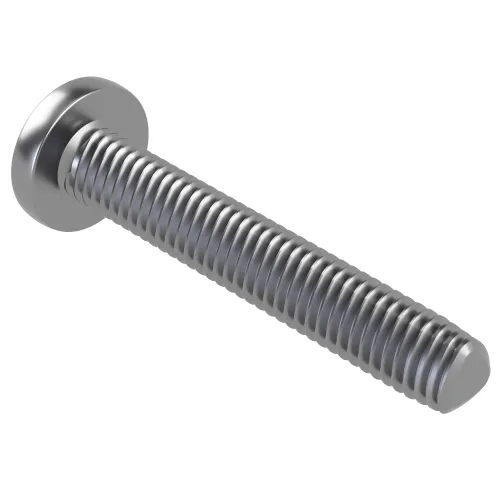

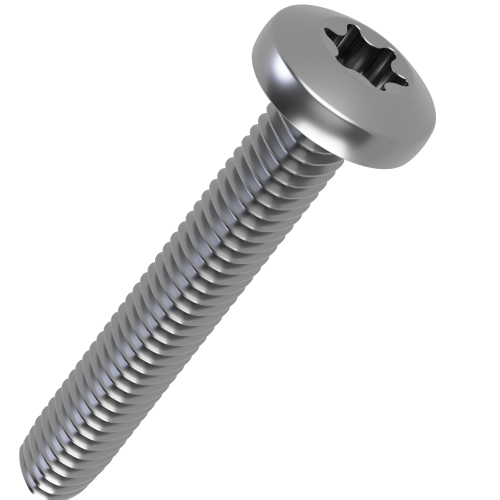

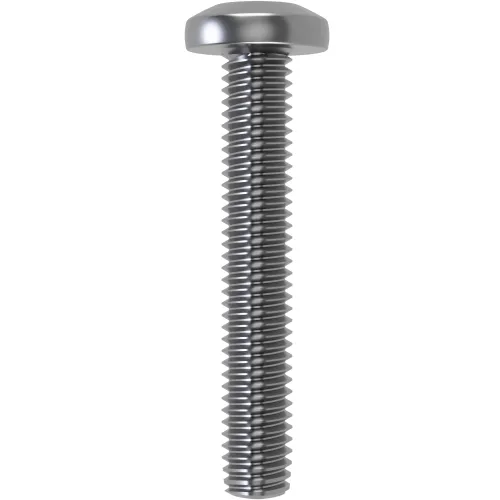

M5 x 25mm Torx Pan Head Thread Forming Screw DIN 7500CT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.77 | £0.92 |
| 100 - 499 | £0.64 | £0.77 |
| 500 - 999 | £0.38 | £0.46 |
| 1000 - 4999 | £0.19 | £0.23 |
| 5000 + | £0.08 | £0.10 |
£0.92 / each
.png)

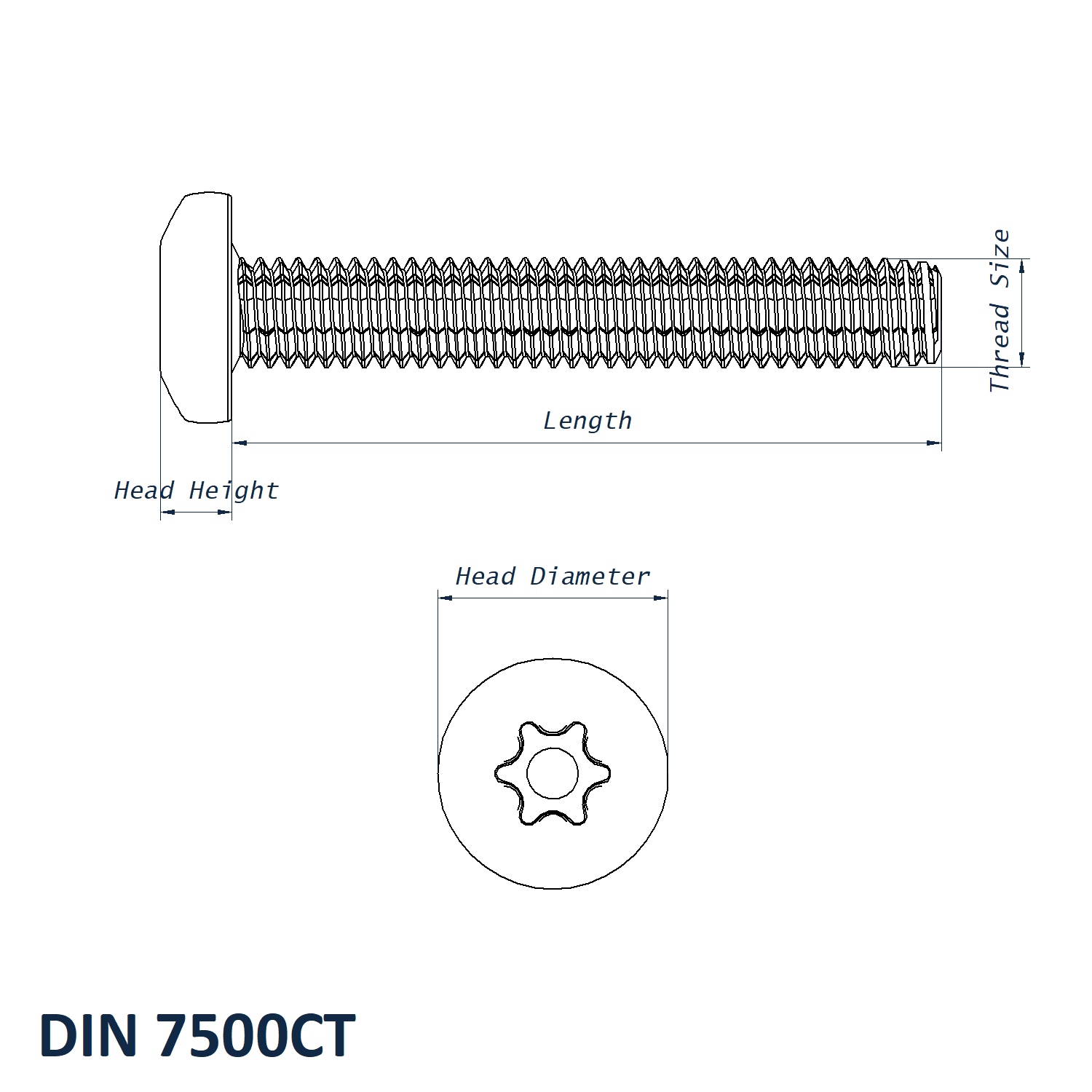

Product Specification
| Thread Size | M5 |
| Pitch | 0.80mm |
| Thread Length | 25mm |
| Drive | T25 |
| Head Diameter | 10.00mm |
| Head Height | 3.95mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7500CT |
Frequently Bought Together
Total Price: £0.00
M5 x 25mm Torx Pan Head Thread Forming Screw DIN 7500CT A2 Stainless Steel
The M5 x 25mm Torx Pan Head Thread Forming Screw DIN 7500CT is designed to form a strong internal thread as it is driven into a correctly sized pre-drilled hole. Manufactured from A2 Stainless Steel, this fastener combines corrosion resistance with a Torx drive for positive tool engagement and a pan head for a broad bearing surface.
What are Torx Pan Head Thread Forming Screws?
Torx pan head thread forming screws, also known as thread rolling screws, create a mating thread by displacing material rather than cutting and removing it. This can reduce the need for a separate tapping operation and provides performance similar to Taptite-style thread forming fasteners in suitable applications.
Technical Specifications:
- Thread Size: M5
- Thread Length: 25mm
- Head Diameter: 10.00mm
- Head Height: 3.95mm
- Pitch: 0.80mm
- Drive: T25
- Standard: DIN 7500CT
- Material: A2 Stainless Steel
Applications:
- Sheet metal and fabricated metal assemblies
- Electrical and electronic equipment
- Machinery, enclosures and housings
- Production assemblies requiring repeatable threaded fastening
Benefits:
- Forms a mating thread during installation, helping reduce separate tapping operations
- Torx drive provides positive engagement and helps reduce cam-out
- Pan head provides a wide bearing surface for secure clamping
- A2 Stainless Steel offers good corrosion resistance for general industrial applications
