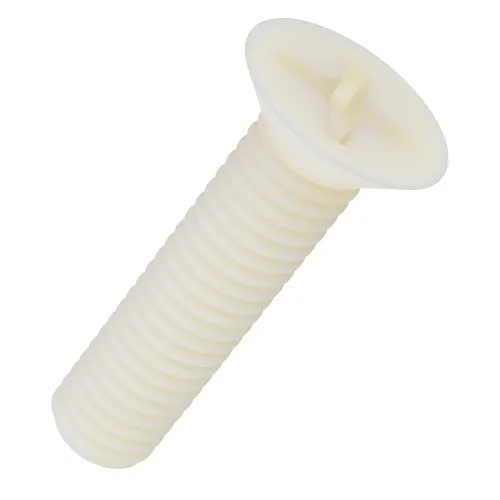

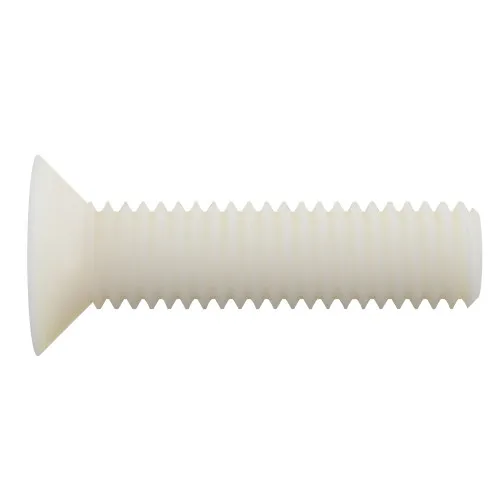

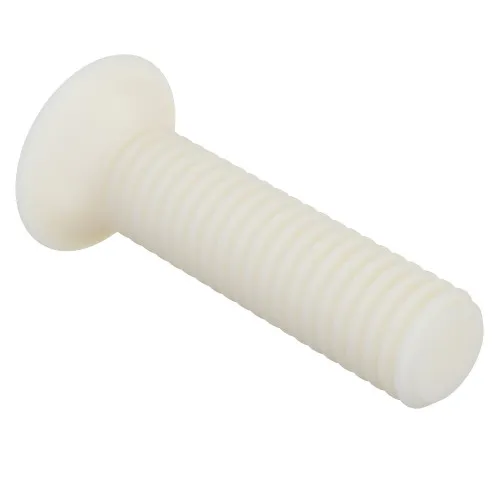

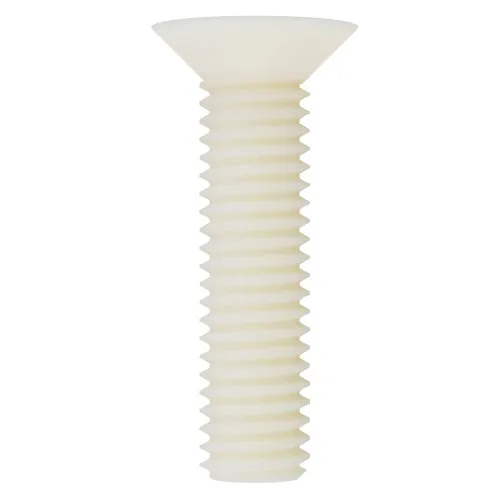

M4 x 10mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.10 | £0.12 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M4 |
| Length | 10mm |
| Pitch | 0.70mm |
| Head Diameter | 7.5mm |
| Material | Nylon - Natural |
| Head Height | 2.20mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
M4 Phillips Head Countersunk Nylon Screw DIN 965H - 10mm Length
Developed for lightweight fastening systems, this M4 phillips head countersunk nylon screw uses a 10mm thread length with a 7.5mm countersunk head diameter and 2.2mm head height. The short reach configuration is suited to standard diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. The non-conductive material makes it suitable around electrical components, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Display systems and exhibition fixtures
- Control boxes and low voltage enclosures
- Lightweight fabricated products
- Prototype engineering builds
M4 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M4
- Length: 10mm
- Pitch: 0.7mm
- Head Diameter: 7.5mm
- Head Height: 2.2mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
View our full Nylon Countersunk Screw range or browse our Nylon Screws collection.
