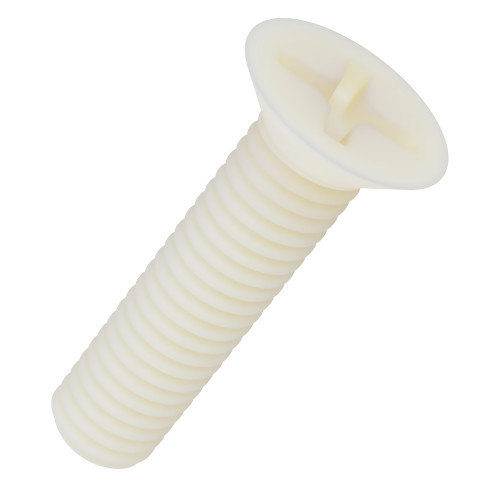

M8 x 12mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.17 | £0.20 |
| 100 - 499 | £0.13 | £0.16 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
Product Specification
| Thread Size | M8 |
| Length | 12mm |
| Pitch | 1.25mm |
| Head Diameter | 14.5mm |
| Material | Nylon - Natural |
| Head Height | 4.00mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
M8 Phillips Head Countersunk Nylon Screw DIN 965H - 12mm Length
Produced for flush mounted assemblies, this M8 phillips head countersunk nylon screw uses a 12mm thread length with a 14.5mm countersunk head diameter and 4mm head height. The medium reach configuration is suited to large diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. The Phillips drive allows straightforward installation with standard tools, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Display systems and exhibition fixtures
- Control boxes and low voltage enclosures
- Lightweight fabricated products
- Prototype engineering builds
M8 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M8
- Length: 12mm
- Pitch: 1.25mm
- Head Diameter: 14.5mm
- Head Height: 4mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
View our full Nylon Countersunk Screw range or browse our Nylon Screws collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
