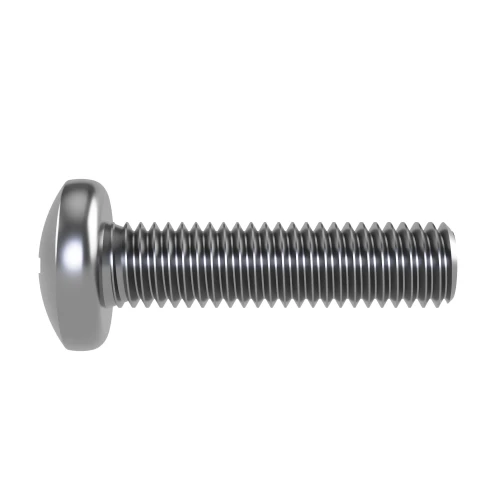

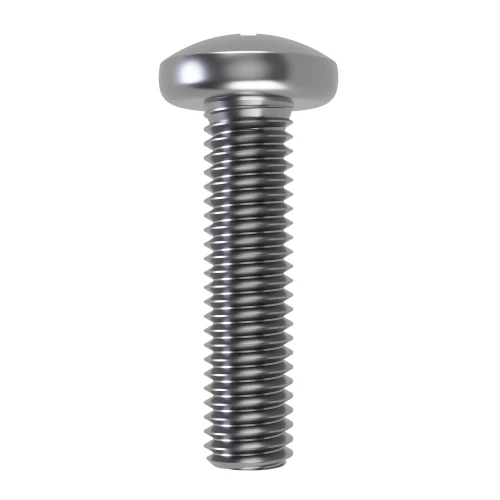

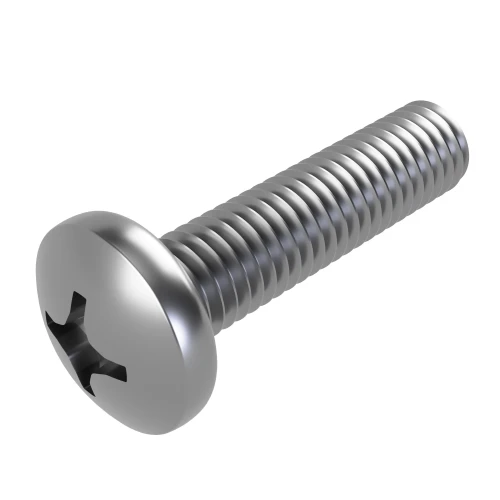

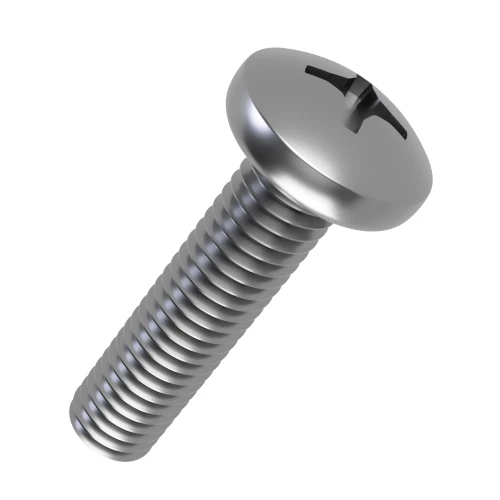

M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

Product code: PPH7985H-M3-20-A2
View All Specifications
M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.26 £0.31
10 - 24 £0.21 £0.25
25 - 49 £0.17 £0.20
50 - 99 £0.12 £0.15
100 - 499 £0.08 £0.10
500 - 999 £0.06 £0.07
1000 + £0.04 £0.05

£0.31 / each


Up to 362 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 15,317 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 546,067 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
546,067 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Length 20mm
Material A2 Stainless Steel
Pitch 0.50mm
Head Diameter 6.0mm
Head Height 2.52mm
Drive #1
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 20mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

A M3 Phillips pan head screw in A2 Stainless Steel, this 20mm fastener suits instrument chassis fixings. Its #1 crosshead recess is tightened using the matching Phillips driver and the screw can be removed again when servicing the assembly.

What Are Phillips Pan Head Machine Screws?

A Phillips head machine screw uses a cross-recessed pan head rather than a countersunk head. Its head stays proud of the fitted surface and the #1 drive must be matched to a suitable Phillips screwdriver bit. This M3 version follows DIN 7985H. For other sizes and material choices, our Phillips screws are listed by their individual thread and length specifications.

Common Applications

  • Control Panels: Fastening removable panels to enclosures with prepared M3 female threads.
  • Mounting Brackets: Joining brackets and fittings using a matching M3 threaded hole or nut.
  • Instrumentation: Attaching casings or fittings to suitably threaded instrument frames.
  • Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.

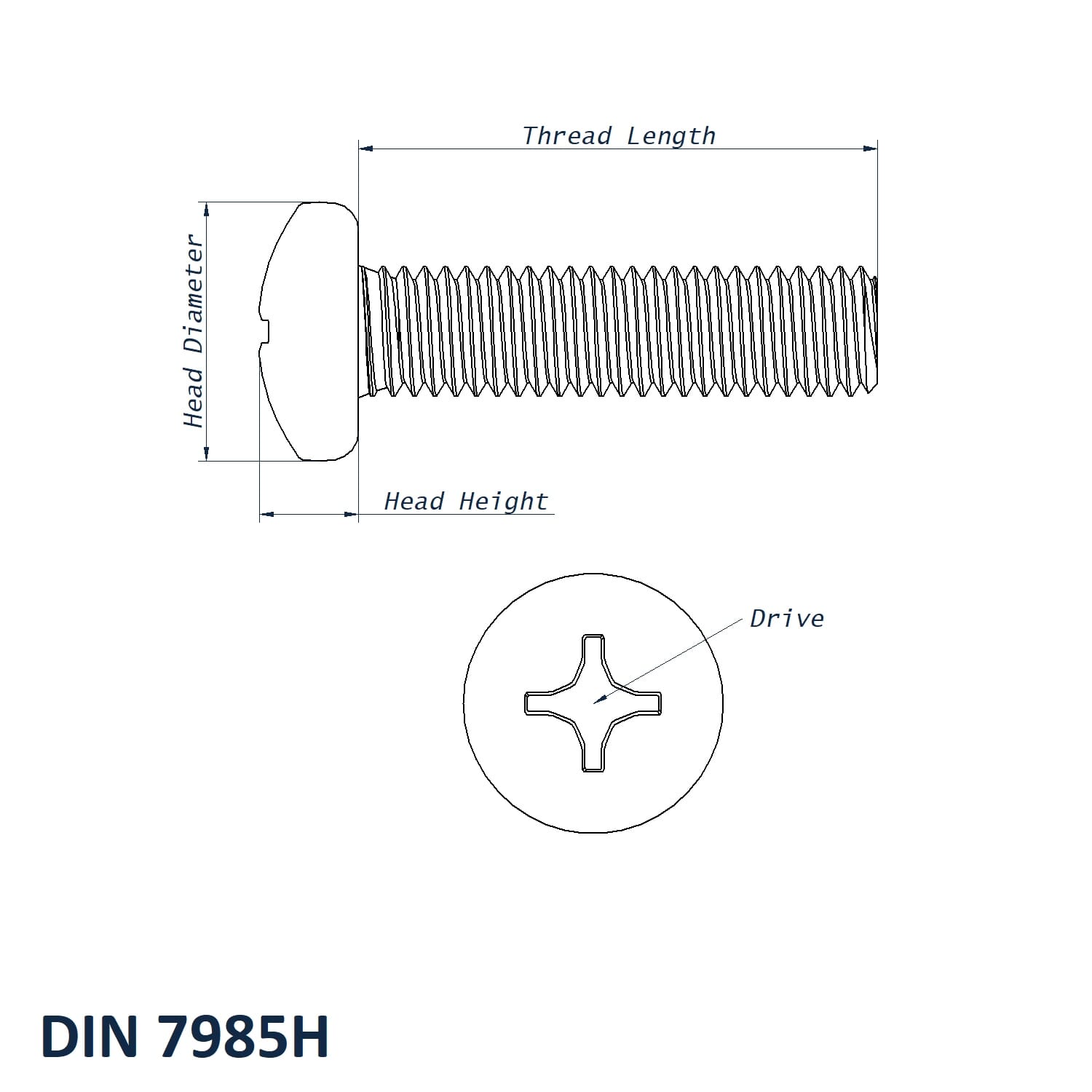

M3 x 20mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M3
  • Length: 20mm
  • Pitch: 0.50mm
  • Head Diameter: 6.0mm
  • Head Height: 2.52mm
  • Drive: #1
  • Material: A2 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • The M3 thread and 0.50mm pitch provide a defined metric fit for compatible components.
  • The DIN 7985H designation supports identification of the correct screw pattern.
  • The specified A2 Stainless Steel can be chosen to match the assembly’s material requirements.
  • The round pan head remains accessible after fitting for adjustment or removal.

Explore our metric Phillips screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
