M2.5 x 12mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.09 | £0.11 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M2.5 |
| Length | 12.0mm |
| Pitch | 0.45mm |
| End Type | Flat |
| Drive | H1.3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2.5 x 12mm Flat Point Socket Grub Screw | H1.3 Drive | A2 Stainless Steel
Built around the DIN 913 / ISO 4026 standard, this M2.5 x 12mm socket set screw is suited to electrical enclosure builds. It combines a compact threaded body with a flat point for reliable seating inside collars, hubs and adjustable parts. This makes it useful as a socket grub screw in hinge blocks, mounting rails and enclosure accessories where keeps internal fixings compact around panels and covers.
A2 stainless steel helps protect the fixing from rust in workshop, production and general outdoor settings when matched to the correct mating material. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Hinge blocks, mounting rails and enclosure accessories using a M2.5 x 12mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Broad flat end is suited to components that may be reset during servicing
- Metric thread and 0.45mm pitch provide predictable engagement in matching tapped holes
- A2 Stainless Steel construction supports the selected environment and application duty
- Compact grub screw format avoids the clearance issues created by headed fasteners

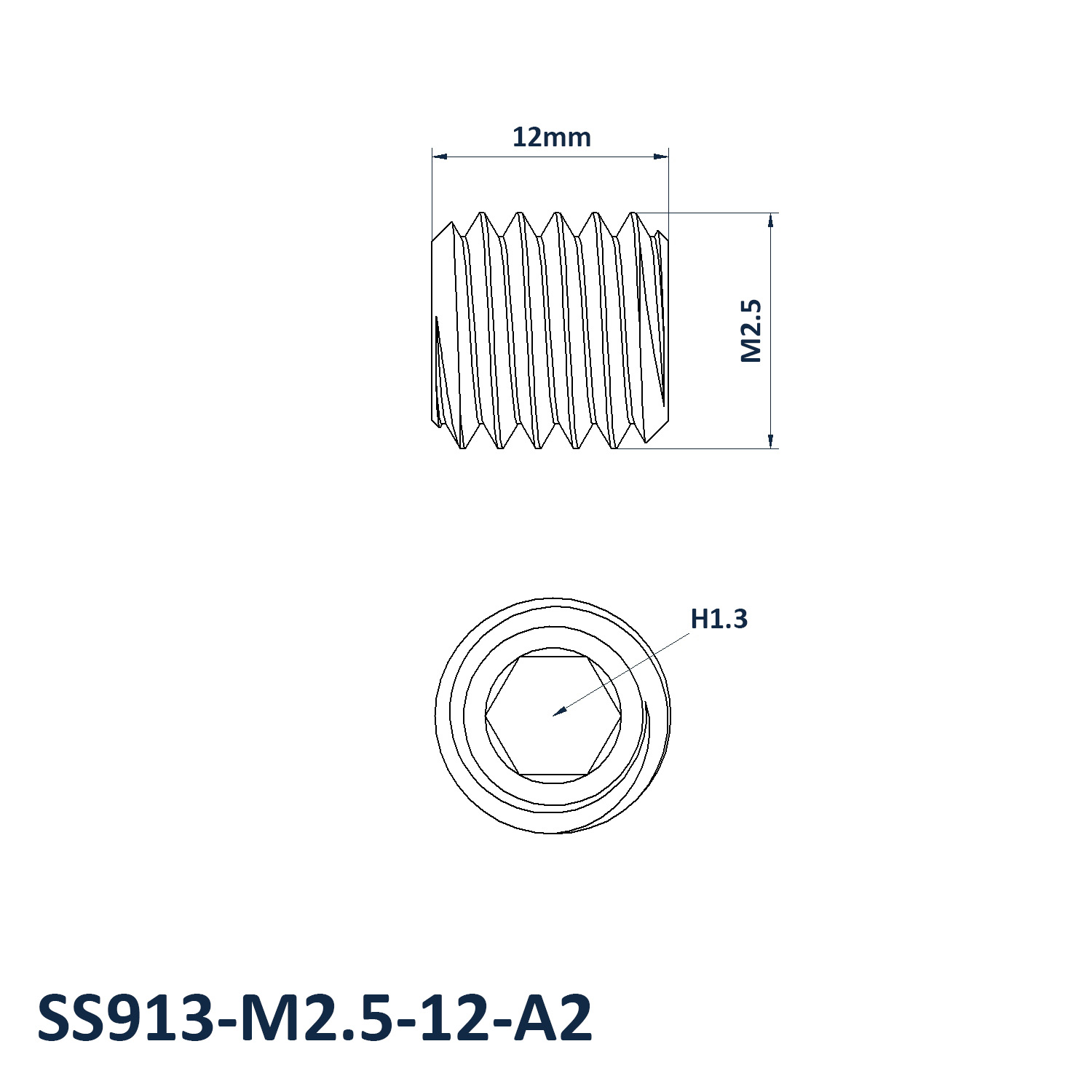

M2.5 x 12mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2.5
- Length: 12mm
- Pitch: 0.45mm
- End Type: Flat
- Drive: H1.3
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
