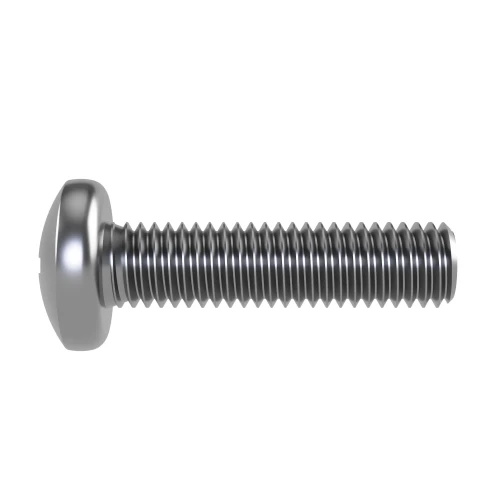

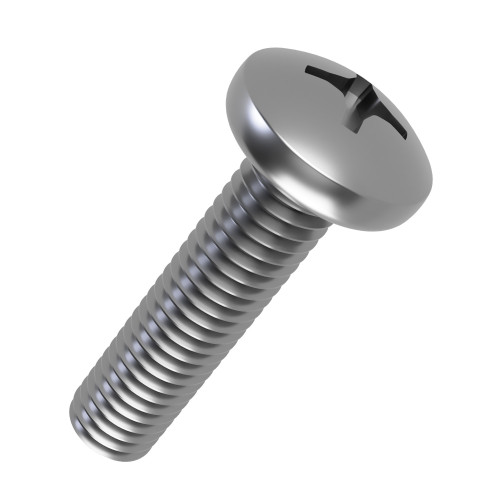

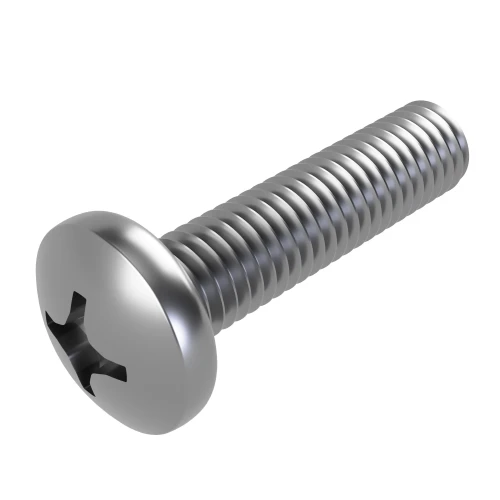

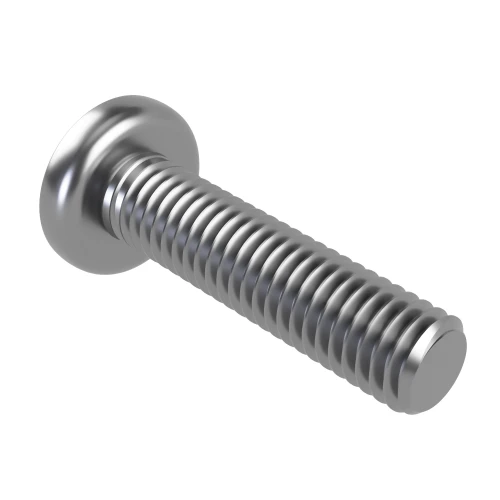

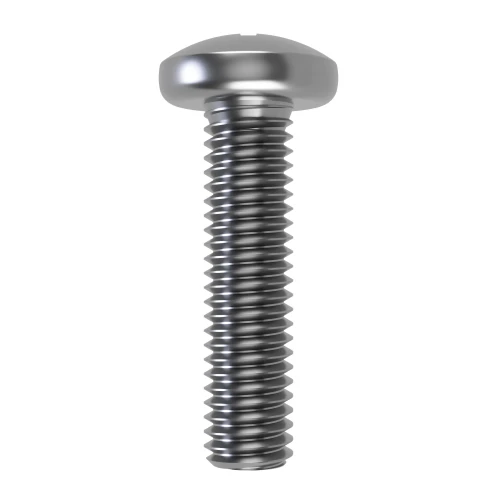

M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel

Product code: PPH7985H-M8-16-A4
View All Specifications
M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £1.35 £1.62
10 - 24 £1.08 £1.30
25 - 49 £0.81 £0.97
50 - 99 £0.68 £0.81
100 - 499 £0.61 £0.73
500 - 999 £0.54 £0.65
1000 + £0.41 £0.49

£1.62 / each


Up to 198 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 298 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 14,498 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
14,498 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M8
Length 16mm
Material A4 Stainless Steel
Pitch 1.25mm
Head Diameter 16.0mm
Head Height 6.15mm
Drive #4
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel

Specified to DIN 7985H, this Marine Grade A4 Stainless Steel panhead screw measures M8 x 16mm and uses a #4 Phillips screw drive. It can secure fabricated metal connections where a matching metric thread and raised pan head are required.

What Are Phillips Pan Head Machine Screws?

A Phillips screw of this type has a machine thread along its shaft and a rounded head designed for conventional crosshead screwdriver access. The specified 1.25mm pitch defines the matching internal thread and its DIN 7985H designation identifies the screw form. Phillips and Pozidriv drive profiles are different, so a correctly matching Phillips screwdriver should be used rather than a Pozi bit. For other sizes and material choices, our crosshead machine screws are listed by their individual thread and length specifications.

Common Applications

  • Control Panels: Fastening removable panels to enclosures with prepared M8 female threads.
  • Mounting Brackets: Joining brackets and fittings using a matching M8 threaded hole or nut.
  • Instrumentation: Attaching casings or fittings to suitably threaded instrument frames.
  • Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.

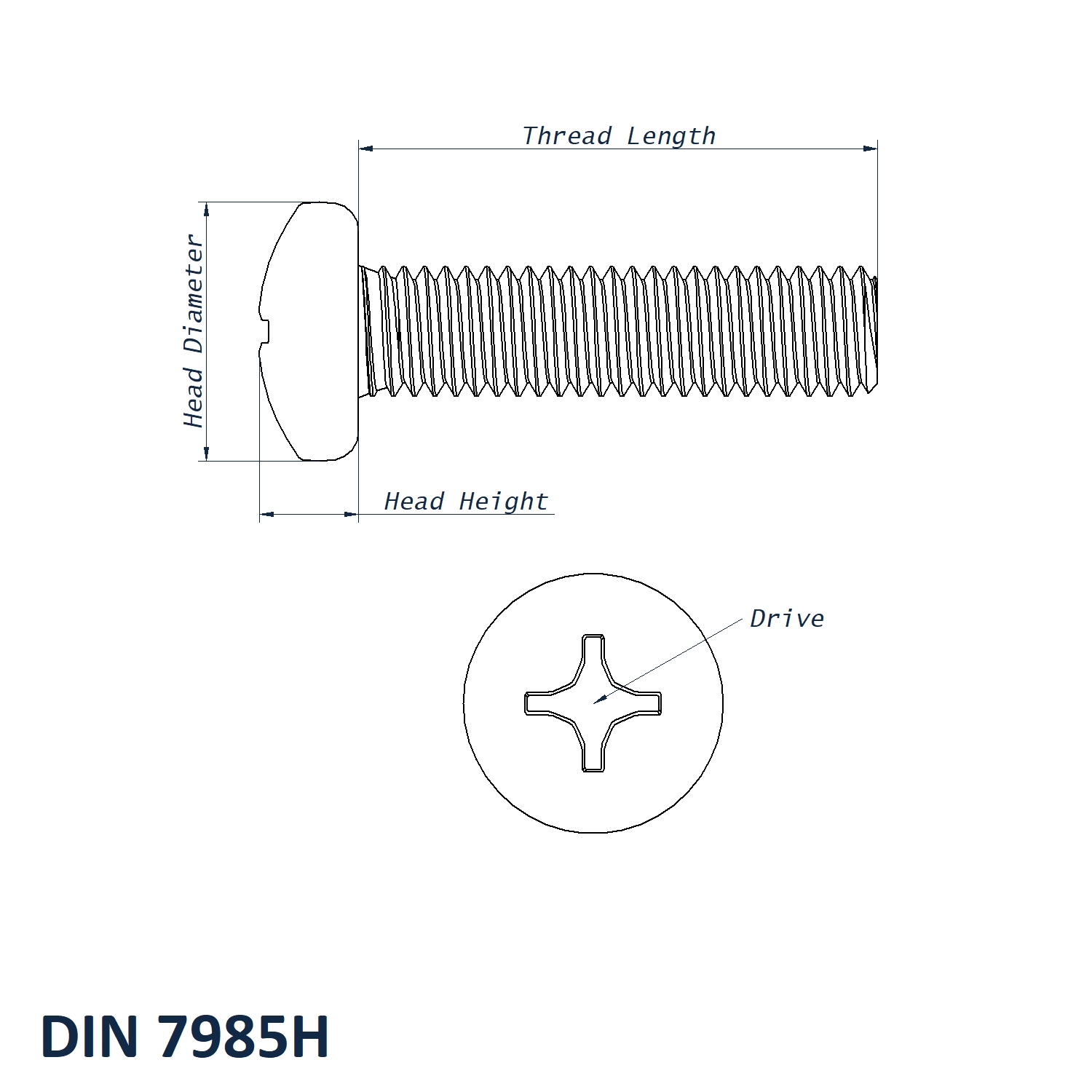

M8 x 16mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M8
  • Length: 16mm
  • Pitch: 1.25mm
  • Head Diameter: 16.0mm
  • Head Height: 6.15mm
  • Drive: #4
  • Material: A4 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • The #4 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
  • The 16mm length lets this fastener be selected for the intended joint depth.
  • A removable screw connection supports access to equipment during maintenance.
  • The M8 machine thread works with matching tapped holes or nuts.

Explore our pan head machine fasteners to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
