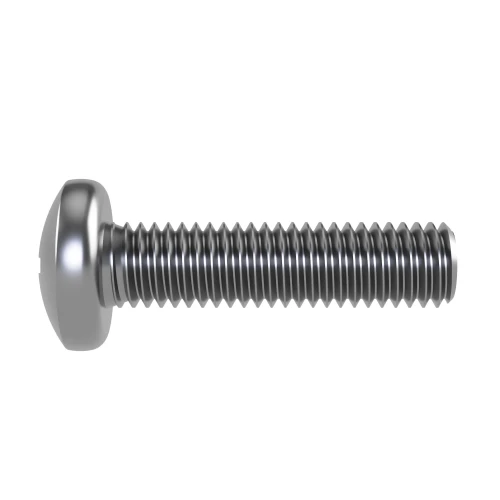

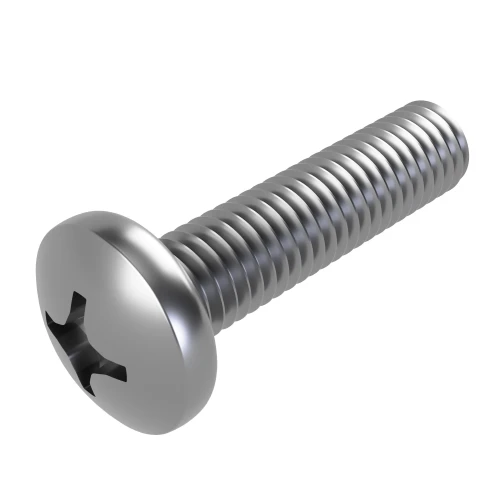

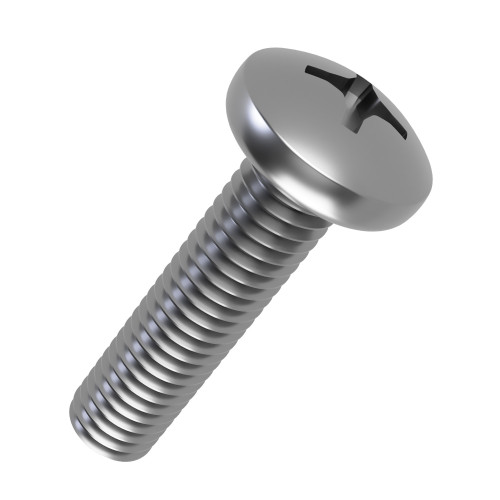

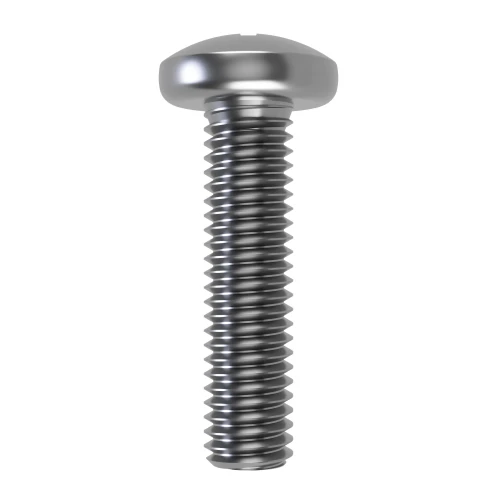

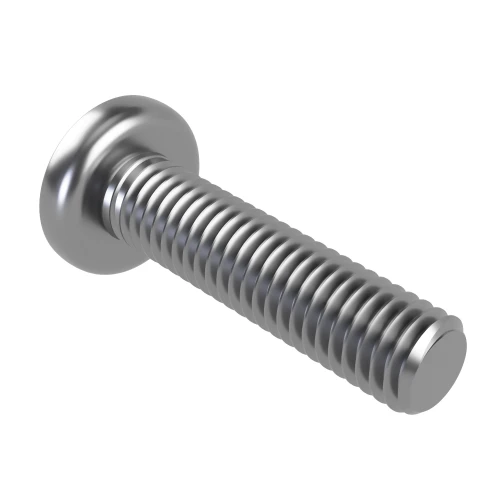

M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

Product code: PPH7985H-M8-100-A2
View All Specifications
M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.62 £4.35
10 - 24 £2.90 £3.48
25 - 49 £2.17 £2.61
50 - 99 £1.82 £2.18
100 - 499 £1.63 £1.96
500 - 999 £1.45 £1.74
1000 + £1.09 £1.31

£4.35 / each


Up to 99 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 274 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
274 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M8
Length 100mm
Material A2 Stainless Steel
Pitch 1.25mm
Head Diameter 16.0mm
Head Height 6.15mm
Drive #4
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M8 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel

Designed for fabricated metal connections, this 100mm A2 Stainless Steel Phillips pan head machine screw has a #4 cross-recessed drive and a 16mm head diameter. It is installed with a correctly sized Phillips screwdriver into a matching internal thread or through a clearance hole with a compatible nut.

What Are Phillips Pan Head Machine Screws?

These pan head screws form removable threaded joints in metal and other components with prepared metric threads. Unlike self-tapping screws they rely on a matching internal thread or nut. This product has a M8 thread and #4 Phillips head recess. For other sizes and material choices, our crosshead machine screws are listed by their individual thread and length specifications.

Common Applications

  • Workshop Fixtures: Installing removable brackets and small metal accessories.
  • Component Mounting: Securing mounts to tapped holes with the correct 1.25mm thread pitch.
  • Control Panels: Fastening removable panels to enclosures with prepared M8 female threads.
  • Mounting Brackets: Joining brackets and fittings using a matching M8 threaded hole or nut.

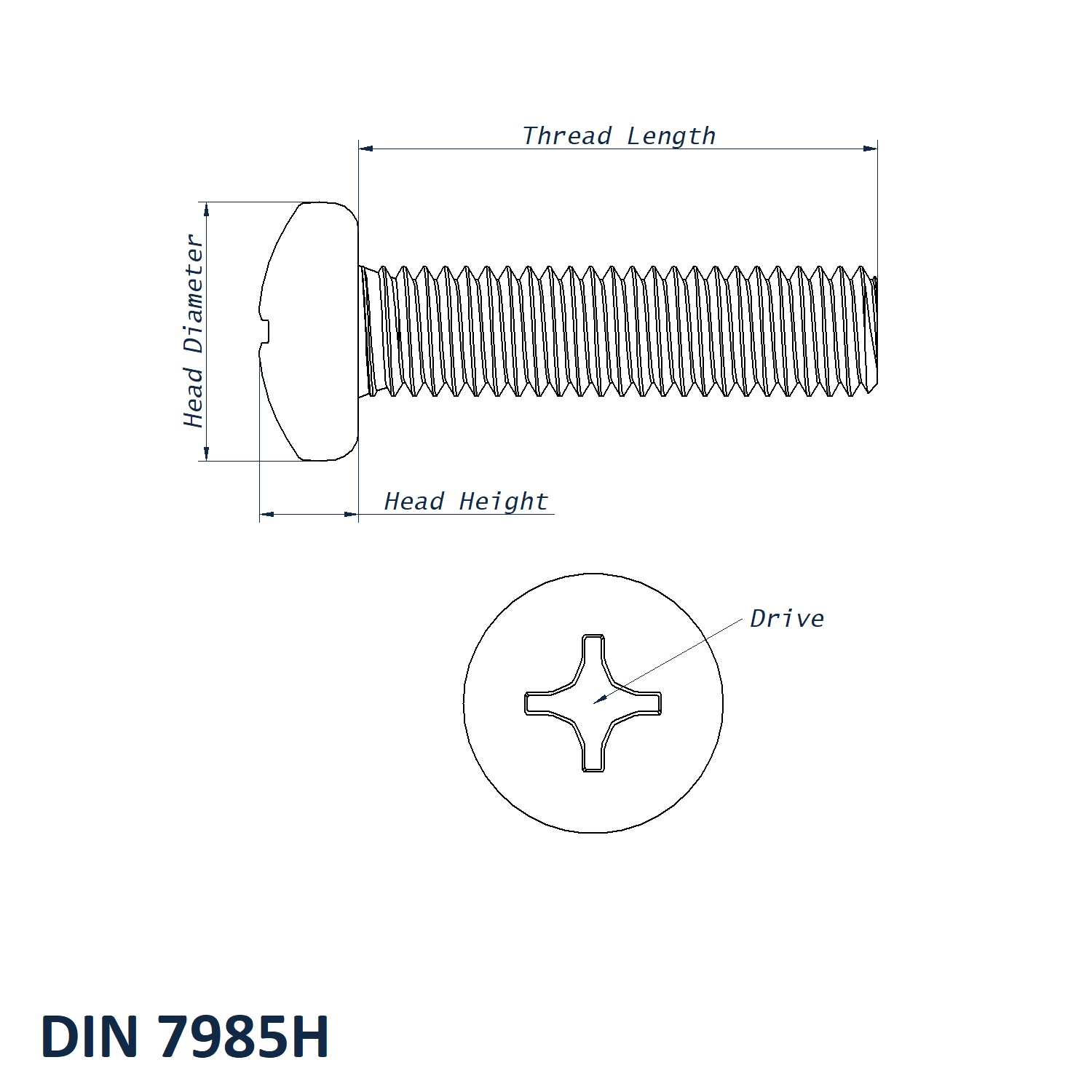

M8 x 100mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M8
  • Length: 100mm
  • Pitch: 1.25mm
  • Head Diameter: 16.0mm
  • Head Height: 6.15mm
  • Drive: #4
  • Material: A2 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • The round pan head remains accessible after fitting for adjustment or removal.
  • The M8 thread and 1.25mm pitch provide a defined metric fit for compatible components.
  • The DIN 7985H designation supports identification of the correct screw pattern.
  • The specified A2 Stainless Steel can be chosen to match the assembly’s material requirements.

Explore our Phillips pan head screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
