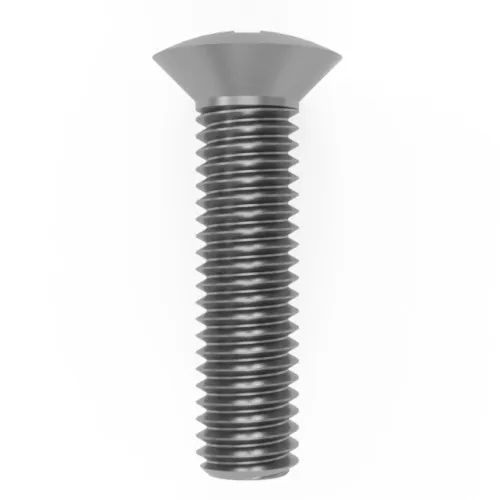

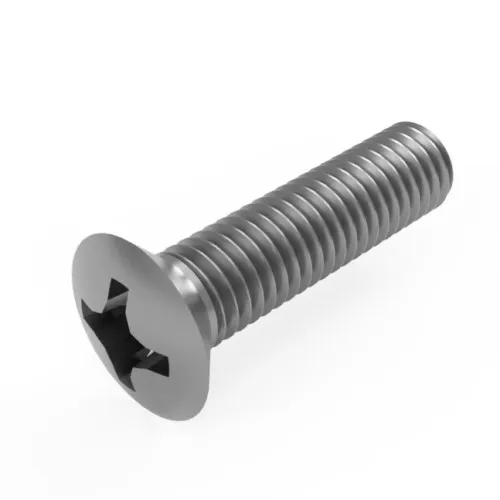

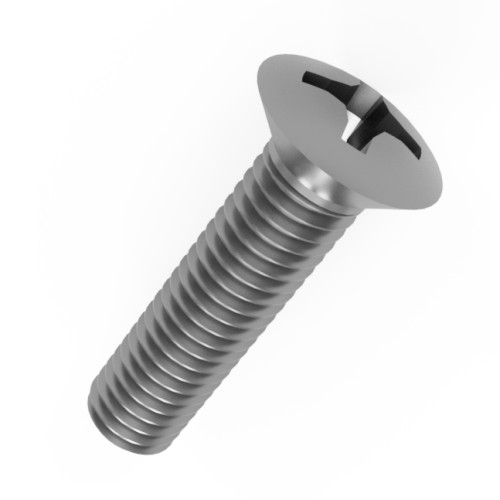

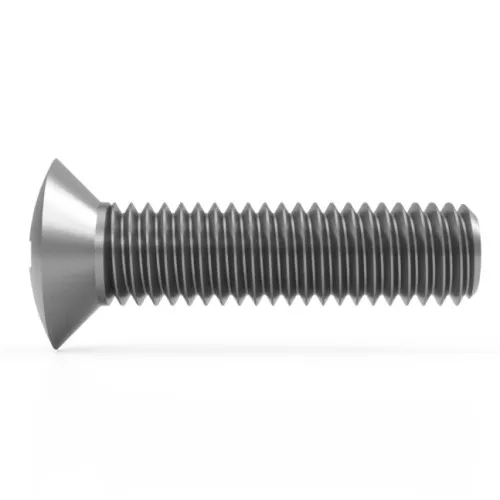

M4 x 12mm Phillips Raised Countersunk Screw (DIN 966H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.27 | £0.32 |
| 10 - 24 | £0.22 | £0.26 |
| 25 - 49 | £0.17 | £0.21 |
| 50 - 99 | £0.13 | £0.16 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M4 |
| Length | 12mm |
| Drive | #2 |
| Pitch | 0.70mm |
| Head Diameter | 8.40mm |
| Head Height | 2.20mm |
| Standard | DIN 966H |
| Head Style | Raised Countersunk |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M4 x 12mm Phillips Raised Countersunk Screw DIN 966H | A2 Stainless Steel
Engineered for visible assemblies requiring an attractive screw finish, this medium reach machine screw combines a M4 thread size with a 12mm thread length and 0.7mm thread pitch for engineering workshop applications. The raised countersunk head profile allows the screw to seat within a countersunk hole while retaining a subtly domed appearance above the surface.
Manufactured to DIN 966H from a2 stainless steel, this screw features a 8.40mm head diameter, 2.20mm head height and PH2 Phillips drive for straightforward installation using standard cross-head tools. It is commonly used with threaded holes, inserts and mating nuts across fabrication, engineering and assembly applications.
Common Applications
- Engineering and fabrication assemblies
- Machine and equipment manufacture
- Panel and bracket installations
- Maintenance and repair operations

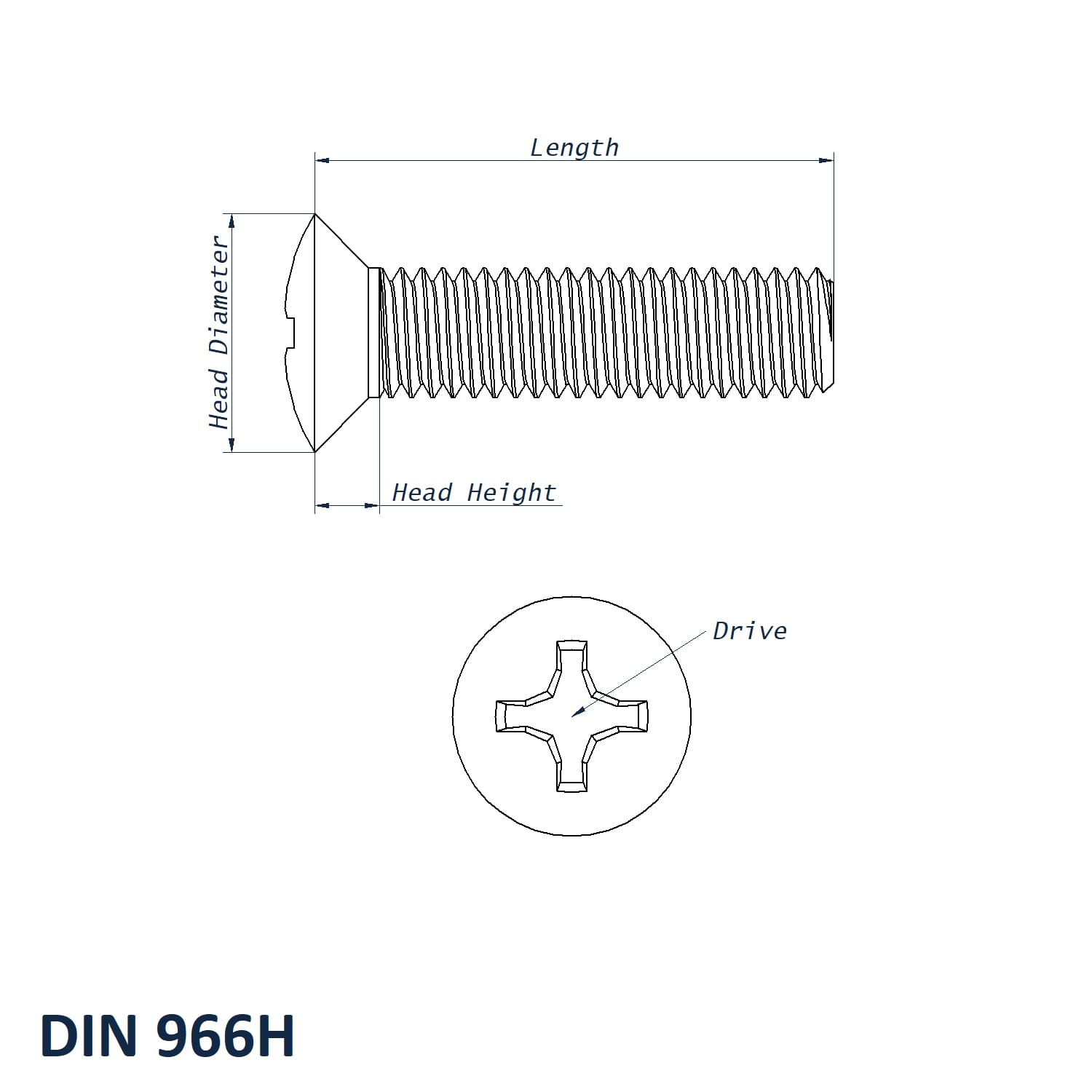

M4 Phillips Raised Countersunk Screw Dimensions
- Thread Size: M4
- Length: 12mm
- Pitch: 0.7mm
- Head Diameter: 8.40mm
- Head Height: 2.20mm
- Drive: PH2
- Material: A2 Stainless Steel
- Standard: DIN 966H
- Head Style: Raised Countersunk
