M4 Wing Nut DIN 315 A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.13 | £0.16 |
| 100 - 999 | £0.12 | £0.14 |
| 1000 - 5999 | £0.10 | £0.12 |
| 6000 + | £0.08 | £0.10 |
Product Specification
| Thread Size | M4 |
| Thread Pitch | 0.70mm |
| Width | 20.0mm |
| Height | 10.5mm |
| Material | A2 Stainless Steel |
| Standard | DIN 315 |
Frequently Bought Together
Total Price: £0.00
M4 Wing Nut DIN 315 -A2 Stainless Steel (304) -20mm Wide

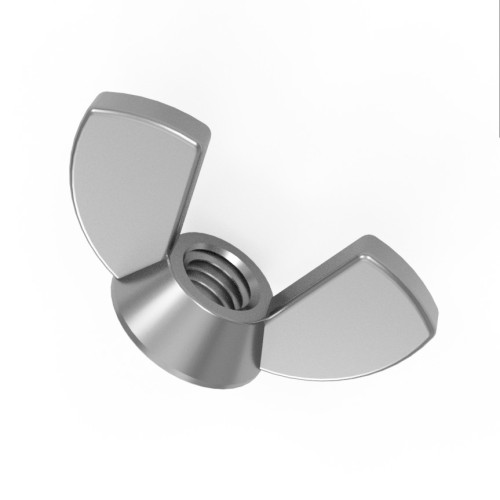

The M4 AA2 Stainless Steel Wing Nut is a compact butterfly nut at 20mm wide -also known as a butterfly nut or thumb nut, manufactured to DIN 315 and designed for light-duty adjustable assemblies, small instrument covers and precision equipment where tool-free hand tightening speeds up regular adjustment or removal. The two large wings allow the nut to be tightened and loosened by hand without any tools -essential wherever the fastening needs to be adjusted, inspected or removed regularly without stopping to find a spanner.
Manufactured from A2 stainless steel (grade 304 / 18-8), this wing nut offers reliable corrosion resistance in general indoor and outdoor environments including light moisture, humidity and mild chemical exposure -ideal for the precision and light engineering applications where this size is most commonly used. The two large wings allow secure tightening and loosening by hand without tools. A countersunk bearing face gives a stable seating on the mating surface. DIN 315 compliant for dimensional consistency with compatible metric bolts, threaded rods and machine screws of the same pitch (0.7mm).
Common Applications
- Small access panel and instrument cover hand-tightened retention
- Light clamp and bracket adjustment in workshop and laboratory settings
- Telescopic device and adjustable fixture finger-tightened fastening
- Photography and optical mounting adjustment requiring frequent repositioning

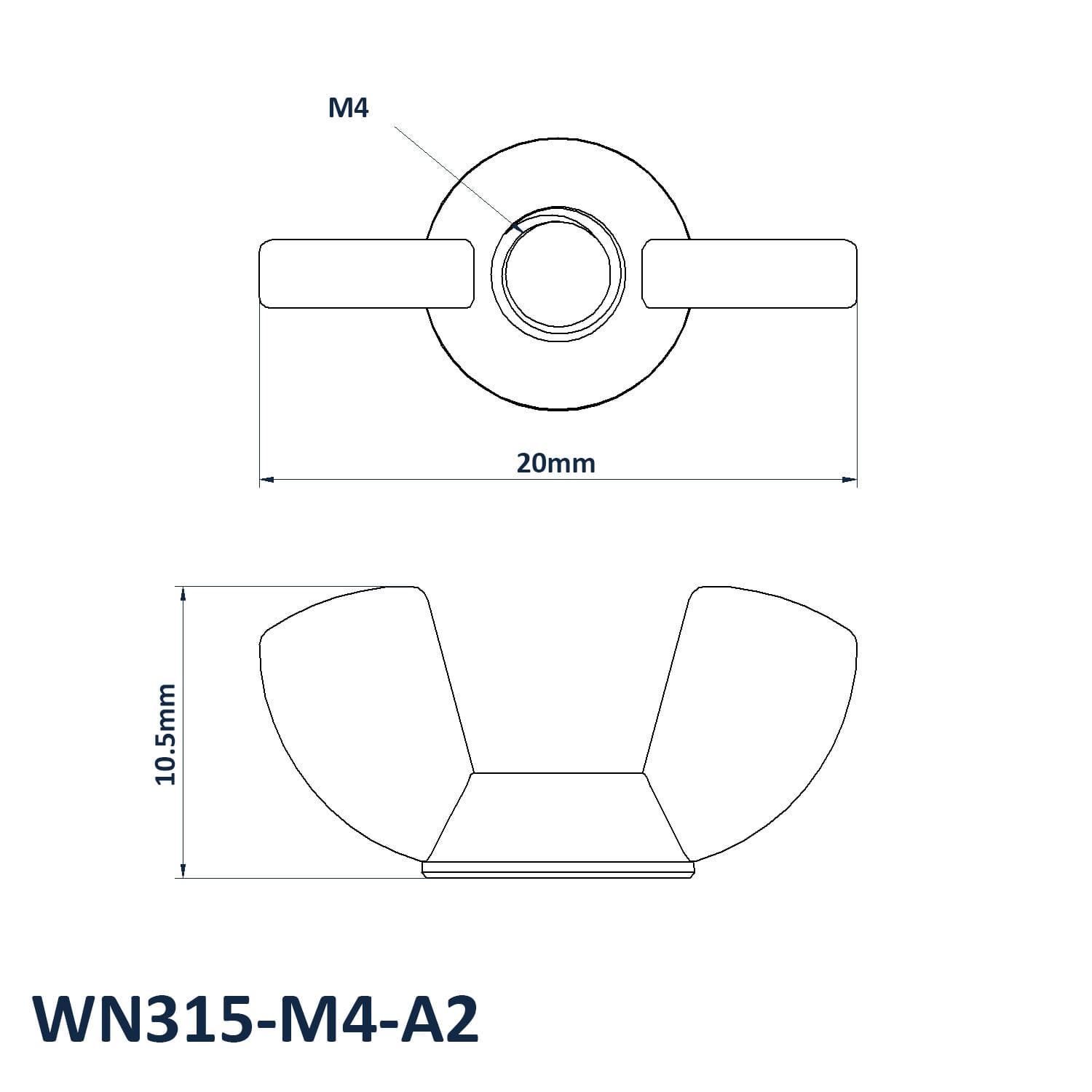

M4 A2 Wing Nut Dimensions
- Thread Size: M4
- Thread Pitch: 0.7mm
- Width: 20mm
- Height: 10.5mm
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 315
- Drive: Hand Tightening (Tool-Free)
- Also Known As: Butterfly Nut, Thumb Nut
View our full stainless steel wing nut range or browse our complete wing nut collection. We also sell nylon wing nuts for applications where a non-metallic fastener is required.
