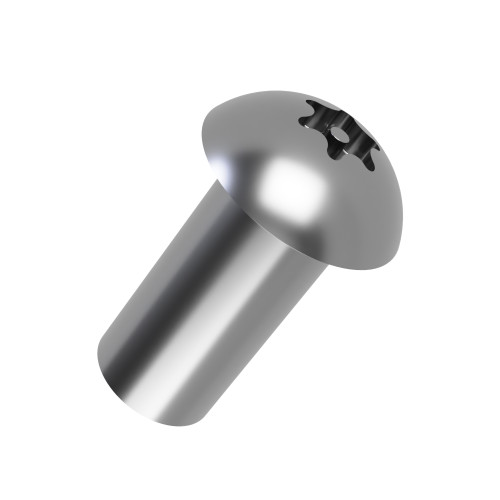

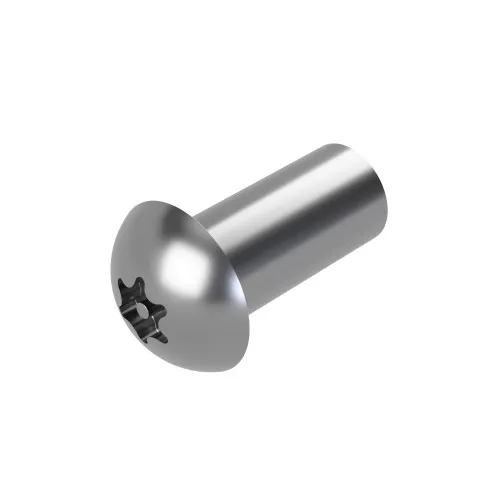

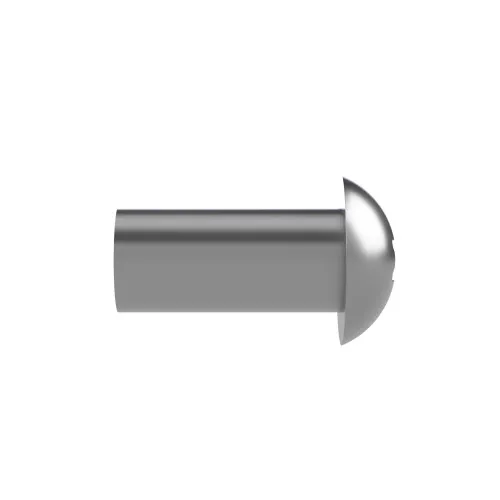

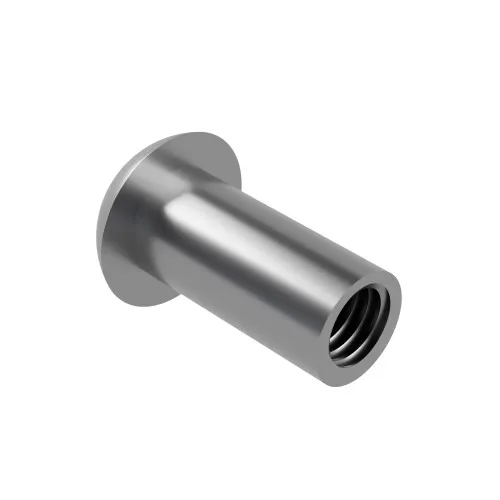

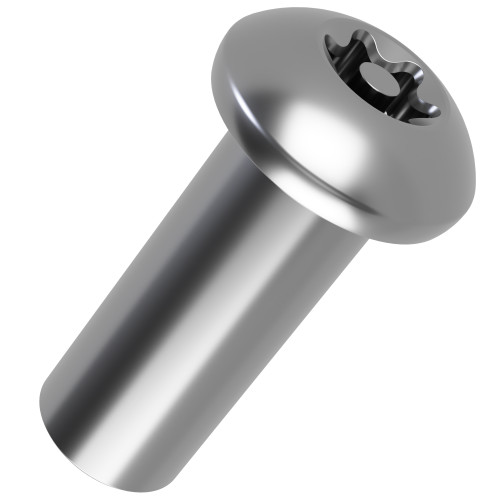

M8 x 30mm Pin Torx Button Head Barrel Nut A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 9 | £4.13 | £4.96 |
| 10 - 24 | £3.92 | £4.71 |
| 25 - 49 | £3.73 | £4.47 |
| 50 - 99 | £3.54 | £4.25 |
| 100 - 499 | £3.01 | £3.61 |
| 500 + | £2.56 | £3.07 |
Product Stock
| Product Specifications | PTBBN-M8-30-A2 |
|---|---|
| Thread Size | M8 |
| Length | 30mm |
| Diameter | 9.9mm |
| Material | A2 Stainless Steel |
| Pitch | 1.25mm |
| Thread Length | 25mm |
| Head Diameter | 14.6mm |
| Head Height | 5.0mm |
| Drive | Pin T40 |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
Pin Torx Button Head Barrel Nut - M8 Thread x 30mm Length, A2 Stainless Steel | Vital Parts - PTBBN-M8-30-A2
Our M8 x 30mm Pin Torx Button Head Barrel Nut is a high-security fixing solution ideal for public, commercial and industrial applications. Manufactured from durable A2 Stainless Steel and finished in self-colour, it offers excellent resistance to corrosion in both indoor and outdoor environments. The button head design provides a smooth, low-profile finish, while the Pin T40 drive ensures tamper-resistant installation using a specialist driver bit.
What is a Pin Torx Button Head Barrel Nut?
Pin Torx Button Head Barrel Nuts are internally threaded fasteners with a tamper-resistant drive and a rounded button head profile. Designed for use with matching machine screws or bolts, they are commonly used to create flush, secure joints in exposed or high-traffic areas. The central pin within the Torx recess prevents removal with standard tools, making them ideal for applications where vandalism or tampering must be prevented.
Key Applications and Industries
- Playgrounds and Public Furniture: Securely fasten benches, play equipment and access panels with tamper resistance.
- Signage and Information Boards: Prevent unauthorised removal or vandalism in public-facing installations.
- Furniture and Cabinetry: Create clean, visible joints that are difficult to disassemble without the correct tooling.
- Transport and Infrastructure: Used in bus shelters, kiosks and control enclosures for secure access.
- Retail and Commercial Displays: Provide a sleek and safe fixing method for visible fittings and panels.
Why Choose Our Pin Torx Barrel Nuts?
Premium Corrosion Resistance: A2 stainless steel ensures long-lasting protection against rust, ideal for exterior and high-humidity environments.
Tamper-Proof Drive: Pin T40 drive prevents unauthorised access using common tools, supporting secure installations.
Professional Appearance: The smooth, rounded button head delivers a clean, low-profile finish for exposed applications.
Trusted in the UK: Preferred by installers, fabricators and manufacturers for quality, security and finish.
Key Features and Benefits:
- Made from A2 stainless steel for excellent corrosion resistance
- Pin T40 drive deters tampering with a specialist bit
- Button head ensures a clean and low-profile appearance

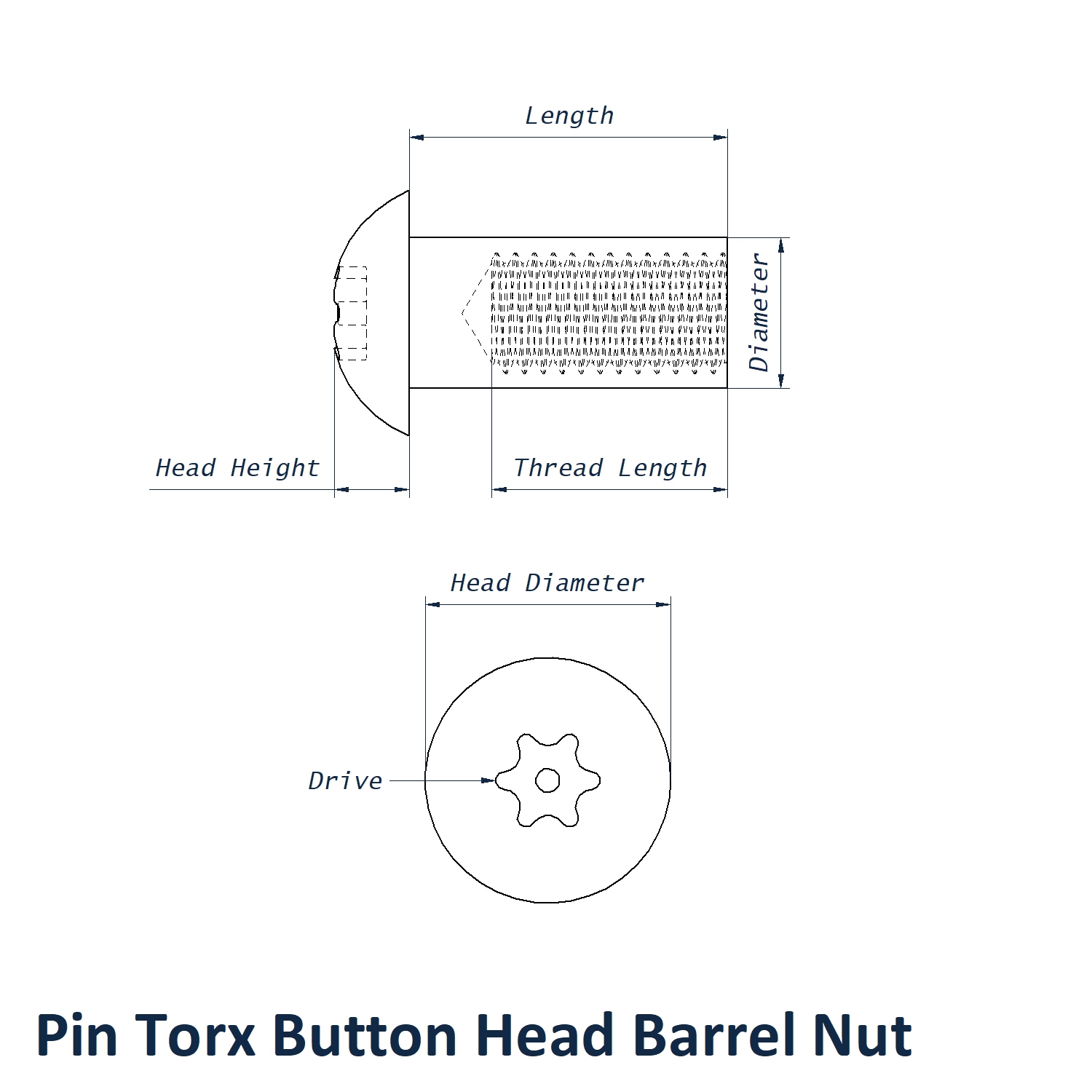

Barrel Nut Technical Specifications:
We stock Barrel Nuts in popular diameters and thread sizes such as M6 and M8, along with other options like M4, M10, and M12 nut size to ensure compatibility with a wide range of applications.
- Thread Size: M8
- Length: 30mm
- Barrel Diameter: 9.9mm
- Thread Pitch: 1.25mm
- Thread Length: 25mm
- Head Diameter: 14.6mm
- Head Height: 5mm
- Drive Type: Pin T40
- Head Style: Button Head
- Material: A2 Stainless Steel
- Finish: Self-colour
Whether you are assembling secure public infrastructure, fabricating robust furniture or protecting valuable signage, our M8 Pin Torx Button Head Barrel Nut offers a tamper-resistant solution with a polished finish. Designed for UK professionals who demand durability, security and sleek design.
Call Vital Parts Today
For expert advice, free product samples and same-day dispatch, call our England based customer support team on 01233 713 581. Register for your Vital Parts Business Account to unlock credit payment terms, preferential delivery options, exclusive trade pricing and a dedicated account manager.
