M4 x 10mm Pin Torx Button Head Barrel Nut A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 9 | £1.03 | £1.24 |
| 10 - 24 | £1.00 | £1.20 |
| 25 - 49 | £0.97 | £1.16 |
| 50 - 99 | £0.91 | £1.09 |
| 100 - 499 | £0.82 | £0.98 |
| 500 + | £0.74 | £0.89 |
Product Stock
| Product Specifications | PTBBN-M4-10-A2 |
|---|---|
| Thread Size | M4 |
| Length | 10mm |
| Diameter | 5.2mm |
| Material | A2 Stainless Steel |
| Pitch | 0.70mm |
| Thread Length | 6mm |
| Head Diameter | 9.2mm |
| Head Height | 2.7mm |
| Drive | Pin T20 |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

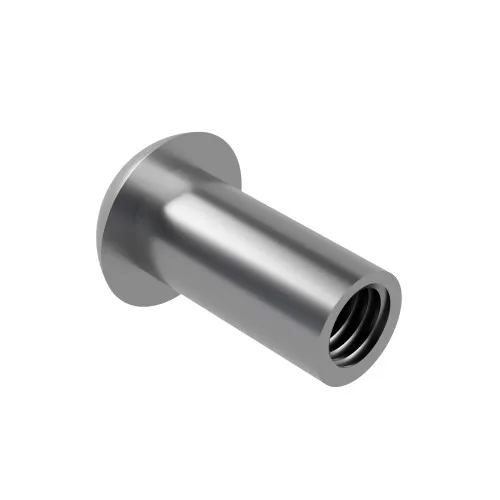

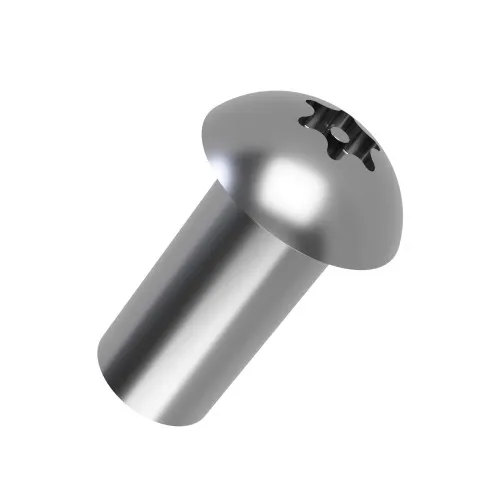

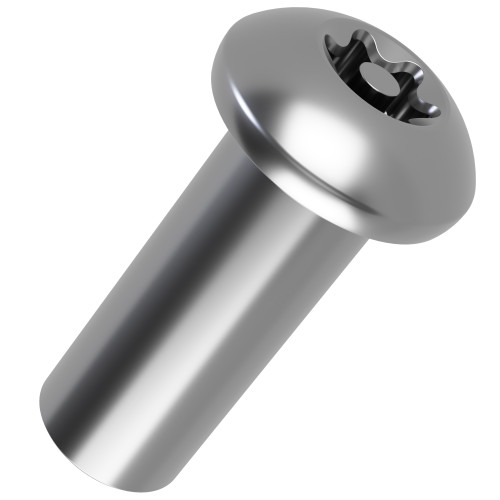

Pin Torx Button Head Barrel Nut - M4 Thread x 10mm Length, A2 Stainless Steel | Vital Parts - PTBBN-M4-10-A2
Our M4 x 10mm Pin Torx Button Head Barrel Nut is a high-security fixing solution ideal for public, commercial and industrial applications. Manufactured from durable A2 Stainless Steel and finished in self-colour, it offers excellent resistance to corrosion in both indoor and outdoor environments. The button head design provides a smooth, low-profile finish, while the Pin T20 drive ensures tamper-resistant installation using a specialist driver bit.
What is a Pin Torx Button Head Barrel Nut?
Pin Torx Button Head Barrel Nuts are internally threaded fasteners with a tamper-resistant drive and a rounded button head profile. Designed for use with matching machine screws or bolts, they are commonly used to create flush, secure joints in exposed or high-traffic areas. The central pin within the Torx recess prevents removal with standard tools, making them ideal for applications where vandalism or tampering must be prevented.
Key Applications and Industries
- Playgrounds and Public Furniture: Securely fasten benches, play equipment and access panels with tamper resistance.
- Signage and Information Boards: Prevent unauthorised removal or vandalism in public-facing installations.
- Furniture and Cabinetry: Create clean, visible joints that are difficult to disassemble without the correct tooling.
- Transport and Infrastructure: Used in bus shelters, kiosks and control enclosures for secure access.
- Retail and Commercial Displays: Provide a sleek and safe fixing method for visible fittings and panels.
Why Choose Our Pin Torx Barrel Nuts?
Premium Corrosion Resistance: A2 stainless steel ensures long-lasting protection against rust, ideal for exterior and high-humidity environments.
Tamper-Proof Drive: Pin T20 drive prevents unauthorised access using common tools, supporting secure installations.
Professional Appearance: The smooth, rounded button head delivers a clean, low-profile finish for exposed applications.
Trusted in the UK: Preferred by installers, fabricators and manufacturers for quality, security and finish.
Key Features and Benefits:
- Made from A2 stainless steel for excellent corrosion resistance
- Pin T20 drive deters tampering with a specialist bit
- Button head ensures a clean and low-profile appearance
This barrel nut is an ideal fit for M4 x 10mm pin torx security screws.

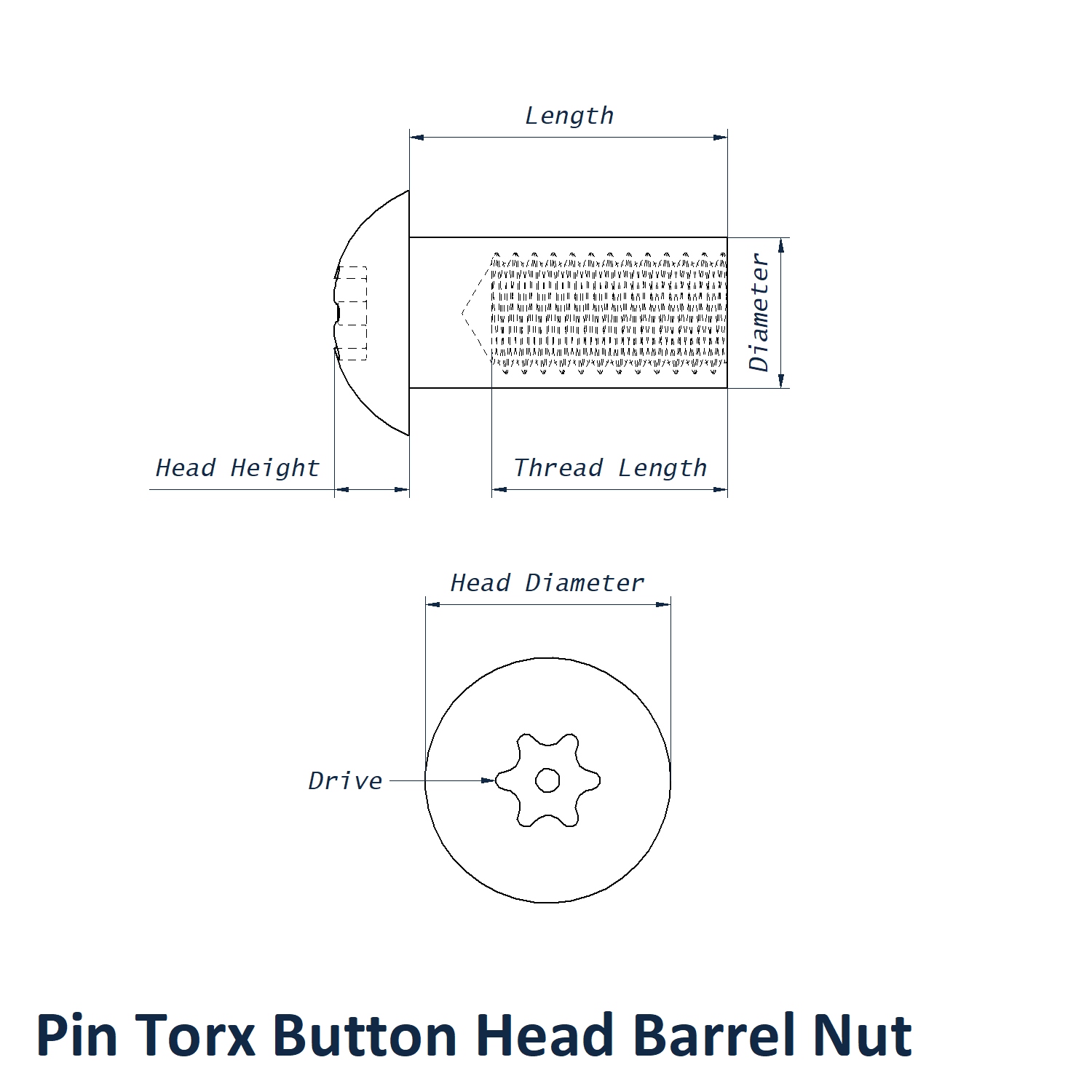

Barrel Nut Technical Specifications:
We stock Barrel Nuts in popular diameters and thread sizes such as M6 and M8, along with other options like M4, M10, and M12 nut size to ensure compatibility with a wide range of applications.
- Thread Size: M4
- Length: 10mm
- Barrel Diameter: 5.2mm
- Thread Pitch: 0.7mm
- Thread Length: 6mm
- Head Diameter: 9.2mm
- Head Height: 2.7mm
- Drive Type: Pin T20
- Head Style: Button Head
- Material: A2 Stainless Steel
- Finish: Self-colour
Whether you are assembling secure public infrastructure, fabricating robust furniture or protecting valuable signage, our M4 Pin Torx Button Head Barrel Nut offers a tamper-resistant solution with a polished finish. Designed for UK professionals who demand durability, security and sleek design.
