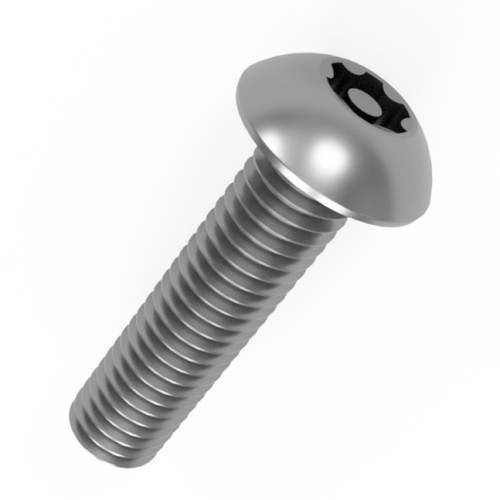

M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel

Product code: PTBS7380-M3-6-A2
View All Specifications
M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 6mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.12 £0.15
10 - 24 £0.10 £0.12
25 - 49 £0.07 £0.09
50 - 99 £0.06 £0.07
100 - 499 £0.05 £0.06
500 - 999 £0.04 £0.05
1000 + £0.03 £0.04

£0.15 / each


Up to 8,088 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 108,898 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 281,398 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
281,398 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Pitch 0.50mm
Head Diameter 5.7mm
Head Height 1.65mm
Drive Security T10
Standard ISO 7380-1
Head Style Button Head
Material A2 Stainless Steel
Length 6mm

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 6mm Pin Torx Button Head Screw (T10) – A2 Stainless Steel

This M3 x 6mm Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T10 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.

What Are Pin Torx Button Head Screws?

A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M3 x 6mm fixing can be removed for planned maintenance using the matching Security T10 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.

Common Applications

  • Transport fittings: Secure suitable interior brackets and covers that may require periodic removal.
  • Building fixtures: Hold exposed metal fittings in place with a low-profile rounded screw head.
  • Equipment cabinets: Attach cabinet panels to matching threaded components in accessible areas.
  • Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.

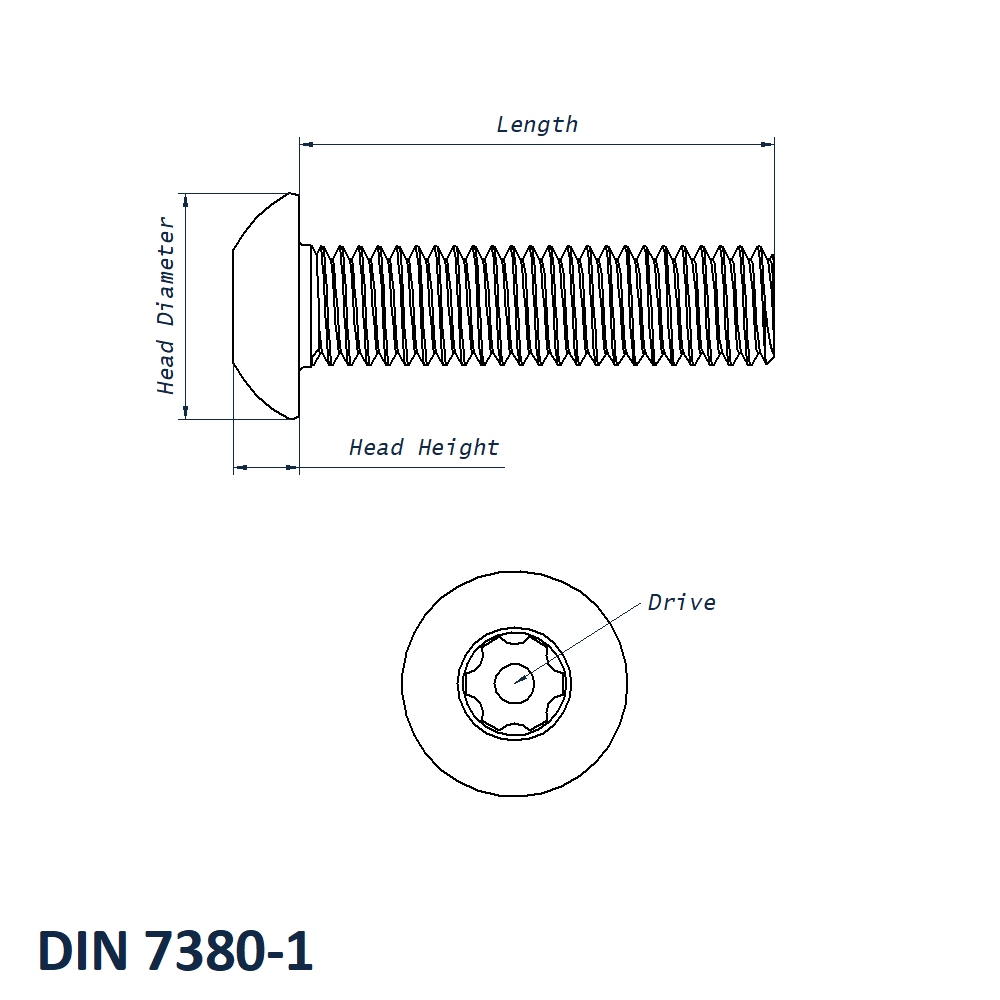

M3 x 6mm Pin Torx Button Head Screw Dimensions

  • Thread Size: M3
  • Length: 6mm
  • Pitch: 0.50mm
  • Head Diameter: 5.7mm
  • Head Height: 1.65mm
  • Drive: Security T10
  • Material: A2 Stainless Steel
  • Standard: ISO 7380-1
  • Head Style: Button Head

Key Benefits

  • The machine thread can engage a matching female thread or be used with an appropriate nut.
  • A clearly specified security drive size helps identify the correct installation tool.
  • The specified thread pitch supports selection for compatible tapped components.
  • Defined head dimensions help assess the clearance around the assembled fixing.

Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
