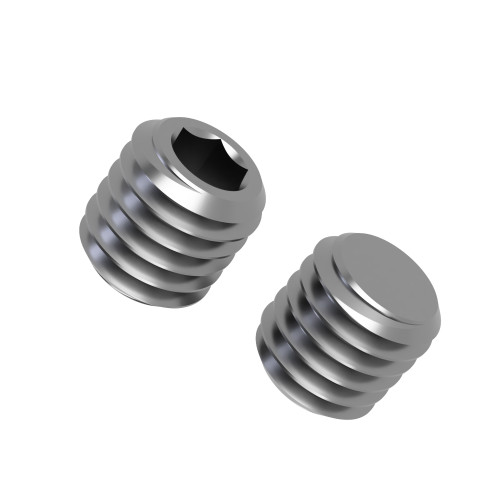

M16 x 20mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.67 | £0.80 |
| 100 - 499 | £0.64 | £0.77 |
| 500 - 999 | £0.54 | £0.65 |
| 1000 - 4999 | £0.45 | £0.54 |
| 5000 - 9999 | £0.40 | £0.48 |
| 10000 + | £0.38 | £0.46 |
Product Specification
| Thread Size | M16 |
| Length | 20.0mm |
| Pitch | 2.00mm |
| End Type | Flat |
| Drive | H8 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M16 x 20mm Flat Point Socket Grub Screw | H8 Drive | Class 45H Steel BZP
The M16 x 20mm socket grub screw with flat point is intended for HVAC plant equipment and similar precision assemblies. A 2.00mm thread pitch gives consistent engagement while the flat point supports contact on shafts, collars and machined faces. As a stainless grub screw, it is well suited to fan hubs, linkage collars and adjustable brackets because it provides a compact fixing for plant room maintenance.
Manufactured from Class 45H steel BZP, this DIN 913 grub screw suits dry environments where strong thread engagement and a practical plated finish are required. Its DIN 913 form is often chosen for collars, hubs and adjustment points where a cup point would be too aggressive for the surface being retained. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Fan hubs, linkage collars and adjustable brackets using a M16 x 20mm flat point set screw
- Access panel hardware and small mechanical linkages
- OEM equipment builds using metric tapped holes
- Machine guarding fixtures with limited clearance
Key Features and Benefits
- Useful for locking shafts, collars and stops after alignment has been checked
- Socket drive keeps the fixing accessible even where side clearance is limited
- Flat point end type reduces localised marking compared with sharper set screw points
- Available as part of a wider metric grub screw range for stocked maintenance spares

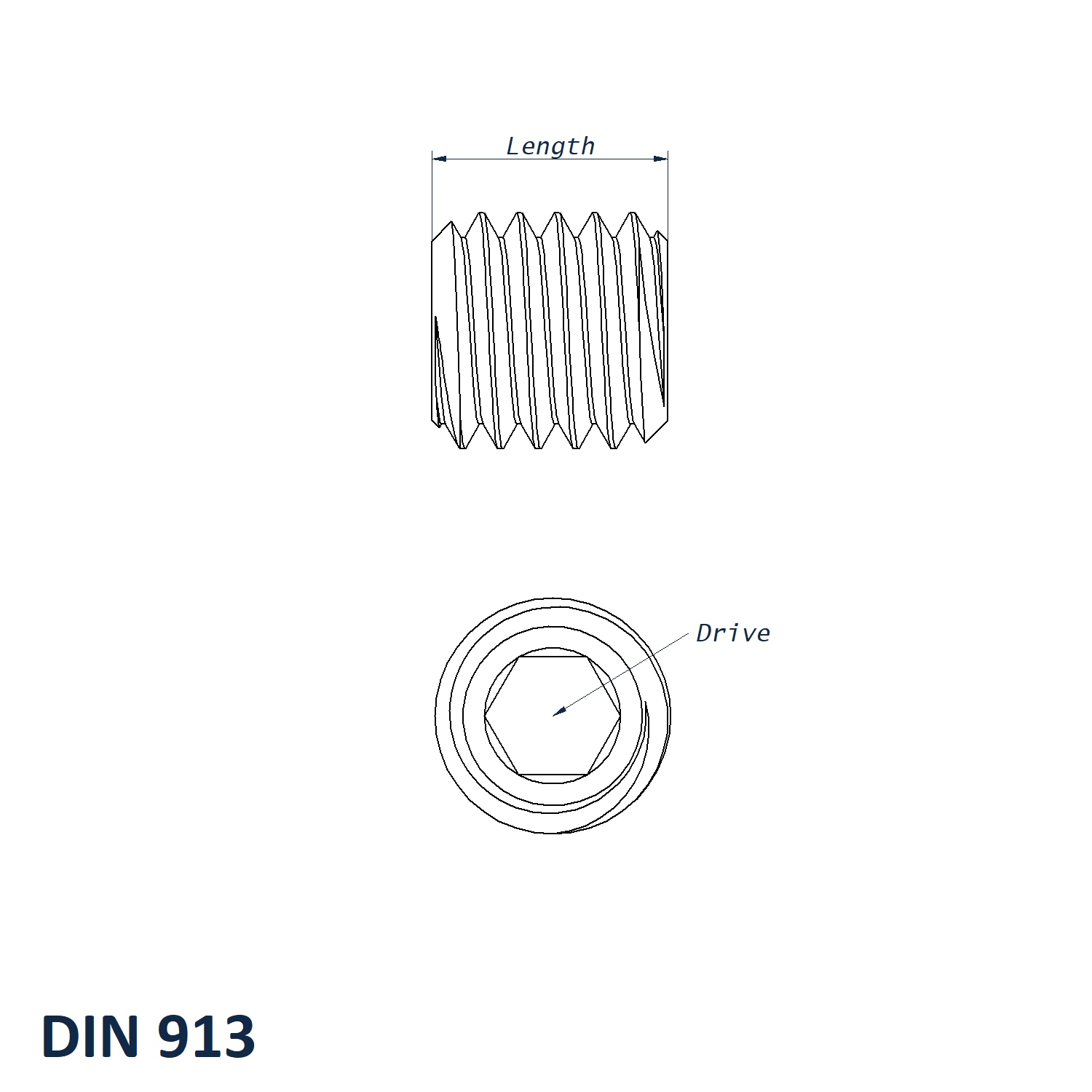

M16 x 20mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M16
- Length: 20mm
- Pitch: 2.00mm
- End Type: Flat
- Drive: H8
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
