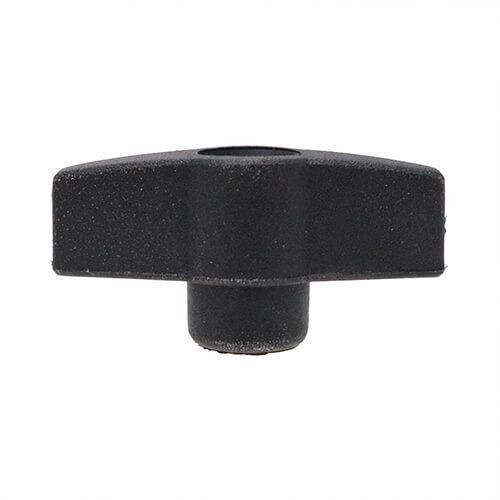

M5 Butterfly Wing Knob (Female Thread)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.02 | £1.23 |
| 25 - 49 | £0.89 | £1.07 |
| 50 - 99 | £0.75 | £0.90 |
| 100 - 499 | £0.66 | £0.79 |
| 500 + | £0.60 | £0.72 |
£1.23 / each
.png)
Product Specification
| Head Size | 28mm x 13mm |
| Step Size | 11mm x 3mm |
| Thread Size | M5 |
| Thread Material | Brass |
| Thread Type | Female |
Frequently Bought Together
Total Price: £0.00
M5 Style 1 Butterfly Wing Nut - 28mm x 13mm | Brass Female Thread
Designed for small guards, brackets and access panels, this M5 Style 1 Butterfly Wing Nut combines an ergonomic Black Thermoplastic head with a Brass female thread. The 28mm x 13mm butterfly profile provides a comfortable hand grip while the 11mm x 3mm step section supports controlled seating on a compatible threaded stud.
What Are Style 1 Butterfly Wing Nuts?
These Thermoplastic wing nuts use an ergonomic butterfly profile to improve manual leverage. A Brass female thread is incorporated into the body which gives a durable threaded connection for compatible studs and bolts.
Common Applications
- Access Panels: Allows panels or covers to be removed and refitted where regular access is required.
- Engineering Fixtures: Supports repeated setup changes on fabricated fixtures and equipment.
- Maintenance Equipment: Provides a reusable fastening point where components need regular inspection or servicing.
- Production Fixtures: Supports quick adjustment of jigs, stops and positioning hardware during manufacturing.
M5 28mm x 13mm Brass Female Thread Butterfly Wing Nut Dimensions
- Head Size: 28mm x 13mm
- Step Size: 11mm x 3mm
- Thread Size: M5
- Thread Material: Brass
- Thread Type: Female
- Colour: Black
Key Benefits
- M5 metric thread gives a clear compatibility specification.
- 11mm x 3mm step size defines the lower locating section of the nut.
- Female thread format suits the specified fastening arrangement.
- Suitable for frames, guards, fixtures, stands and adjustable equipment.
View the complete Style 1 Butterfly Wing Nuts range to compare other thread sizes, head sizes and Female or Through Thread options. For help matching a wing nut to your threaded stud or application, contact the Vital Parts technical sales team on 01233 713581.
