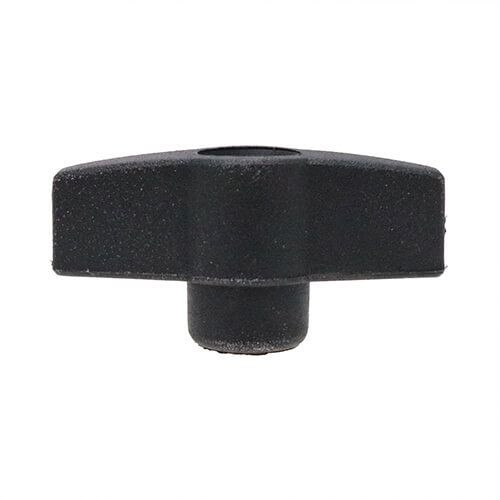

M5 Butterfly Wing Knob (Female Thread)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.27 | £1.53 |
| 25 - 49 | £1.10 | £1.32 |
| 50 - 99 | £0.93 | £1.12 |
| 100 - 499 | £0.82 | £0.98 |
| 500 + | £0.75 | £0.90 |
£1.53 / each
.png)
Product Specification
| Head Size | 40mm x 20mm |
| Step Size | 15mm x 8mm |
| Thread Size | M5 |
| Thread Material | Brass |
| Thread Type | Female |
Frequently Bought Together
Total Price: £0.00
M5 Style 1 Butterfly Wing Nut - 40mm x 20mm | Brass Female Thread
Ideal for general machinery guards and adjustable equipment, this M5 Style 1 Wing Nut provides quick manual tightening through its broad 40mm x 20mm butterfly head. The Black Thermoplastic body is paired with a Brass female thread and a 15mm x 8mm step section for repeated adjustment on a matching male thread.
What Are Style 1 Butterfly Wing Nuts?
These Thermoplastic wing nuts use an ergonomic butterfly profile to improve manual leverage. A Brass female thread is incorporated into the body which gives a durable threaded connection for compatible studs and bolts.
Common Applications
- Tubular Frames: Provides a hand-adjustable fixing on stands, frames and tubular equipment assemblies.
- Production Fixtures: Supports quick adjustment of jigs, stops and positioning hardware during manufacturing.
- Commercial Furniture: Supports manually adjustable hardware on suitable furniture frames and fittings.
- Engineering Fixtures: Supports repeated setup changes on fabricated fixtures and equipment.
M5 40mm x 20mm Brass Female Thread Butterfly Wing Nut Dimensions
- Head Size: 40mm x 20mm
- Step Size: 15mm x 8mm
- Thread Size: M5
- Thread Material: Brass
- Thread Type: Female
- Colour: Black
Key Benefits
- 15mm x 8mm step size defines the lower locating section of the nut.
- Black Thermoplastic head provides a durable non-metallic hand grip.
- Useful where a fixing needs repeated adjustment without a spanner.
- M5 metric thread gives a clear compatibility specification.
Compare this size with other Plastic Butterfly Wing Nuts for tool-free fastening and adjustment. If you need help selecting the correct Brass thread configuration, telephone Vital Parts on 01233 713581.
