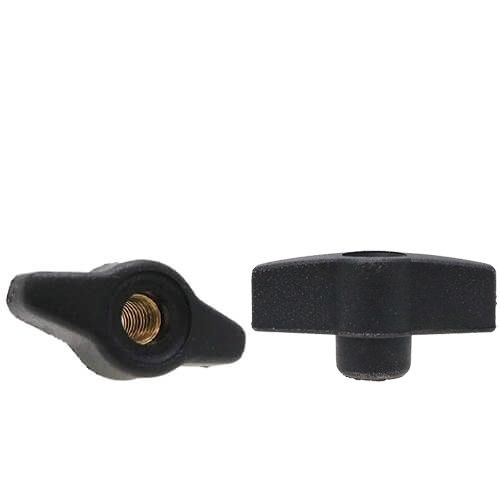

M8 Butterfly Wing Knob (Through Thread)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £2.31 | £2.77 |
| 25 - 49 | £2.00 | £2.40 |
| 50 - 99 | £1.69 | £2.03 |
| 100 - 499 | £1.48 | £1.77 |
| 500 + | £1.36 | £1.63 |
£2.77 / each
Product Specification
| Head Size | 16mm x 30mm |
| Step Size | 19mm x 12mm |
| Thread Size | M8 |
| Thread Material | Brass |
| Thread Type | Through |
Frequently Bought Together
Total Price: £0.00
M8 Style 1 Butterfly Wing Nut - 16mm x 30mm | Brass Through Thread
Providing a reusable hand-operated fixing for display hardware and compact workshop fixtures, this M8 through-thread wing nut has a 16mm x 30mm Thermoplastic butterfly head and a Brass threaded centre. It can be tightened or released without tools while allowing compatible threaded hardware to pass through the body.
What Are Style 1 Butterfly Wing Nuts?
A Style 1 through-thread wing nut combines an ergonomic Thermoplastic head with a Brass threaded centre that is open through the component. The design is useful where the stud may extend past the nut or where a greater adjustment range is required.
Common Applications
- Workshop Equipment: Adds a convenient hand-operated nut to adjustable brackets, guides and bench equipment.
- Access Panels: Allows panels or covers to be removed and refitted where regular access is required.
- OEM Assemblies: Provides a consistent tool-free fastening component for manufactured products and hardware systems.
- Tubular Frames: Provides a hand-adjustable fixing on stands, frames and tubular equipment assemblies.

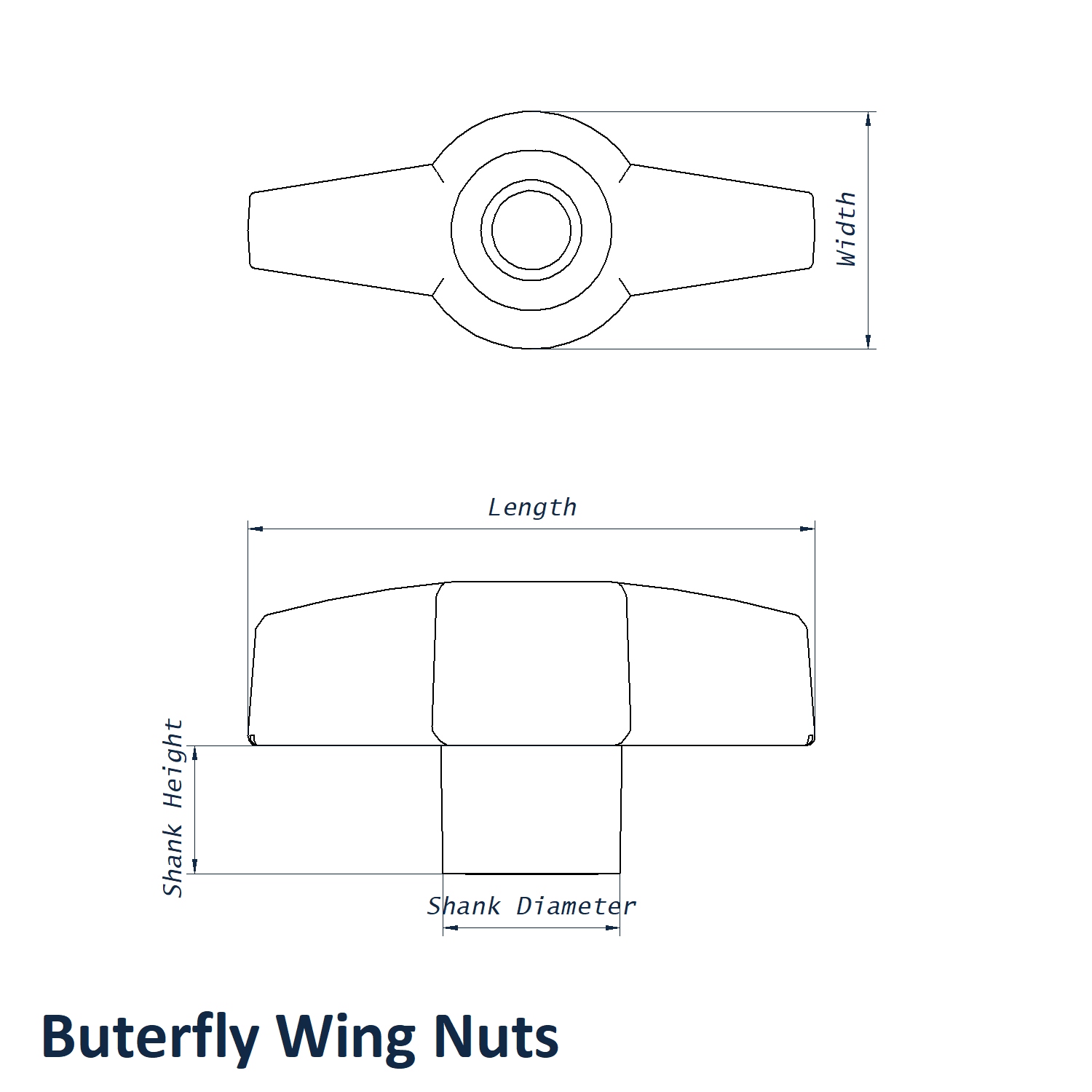

M8 16mm x 30mm Brass Through Thread Butterfly Wing Nut Dimensions
- Head Size: 16mm x 30mm
- Step Size: 19mm x 12mm
- Thread Size: M8
- Thread Material: Brass
- Thread Type: Through
- Colour: Black
Key Benefits
- Through thread format suits the specified fastening arrangement.
- Useful where a fixing needs repeated adjustment without a spanner.
- M8 metric thread gives a clear compatibility specification.
- Brass thread material matches the uploaded product specification.
View the complete Style 1 Butterfly Wing Nuts range to compare other thread sizes, head sizes and Female or Through Thread options. For help matching a wing nut to your threaded stud or application, contact the Vital Parts technical sales team on 01233 713581.
