Plastic Countersunk Hinge - HIN170
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.01 | £2.41 |
| 10 - 24 | £1.87 | £2.24 |
| 25 - 49 | £1.72 | £2.06 |
| 50 - 99 | £1.49 | £1.79 |
| 100 - 499 | £1.21 | £1.45 |
| 500 + | £1.03 | £1.24 |
Product Specification
| Height | 48mm |
| Open Width | 48mm |
| Hole Centre Height | 30mm |
| Hole Centre Width | 30mm |
| Plate Thickness | 11mm |
| Open Thickness | 16mm |
| Hole Size | 7mm |
| Colour | Black |
| Material | Nylon |
Frequently Bought Together
Total Price: £0.00

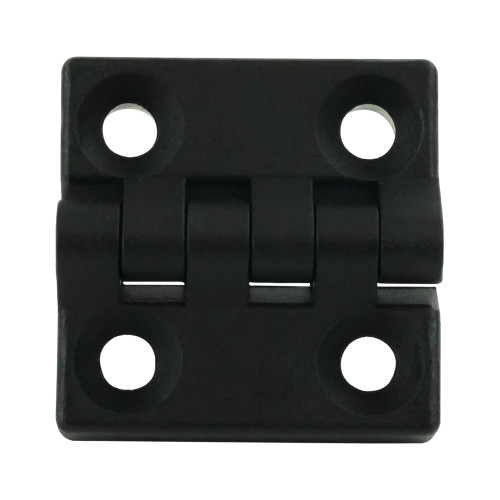

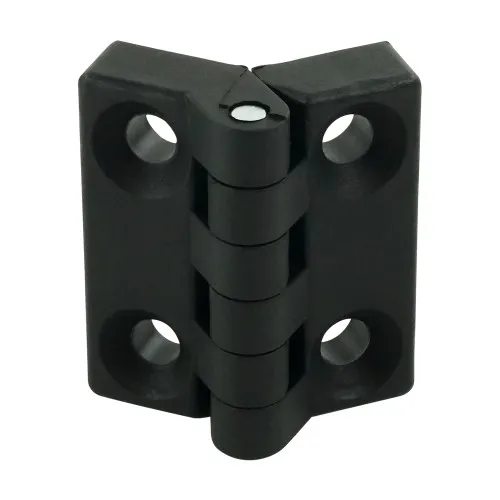

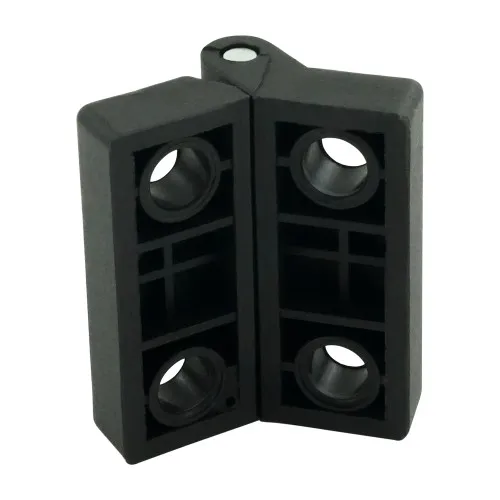

48mm x 48mm Plastic Countersunk Hinge | 7mm Holes | Black Nylon
This 48mm x 48mm black nylon plastic countersunk hinge is suited to compact doors, removable covers and small enclosure panels where flush fixings help keep the finished assembly neat. The 7mm countersunk mounting holes allow compatible screws to sit cleanly in the hinge leaf, making it a practical choice for lightweight industrial panels and tidy access points.
With 30mm x 30mm hole centres, 11mm plate thickness and 16mm open thickness, this hinge gives designers a compact fitting for display equipment, instrument housings and workshop cabinets. The nylon body is useful where a low-maintenance black hinge is preferred over exposed metal hardware.
Common Applications
- Compact access covers on electrical housings and control boxes
- Small display units, inspection flaps and removable machine panels
- Workshop storage, tool cabinets and lightweight service doors
- Furniture prototypes and OEM assemblies requiring a discreet black hinge

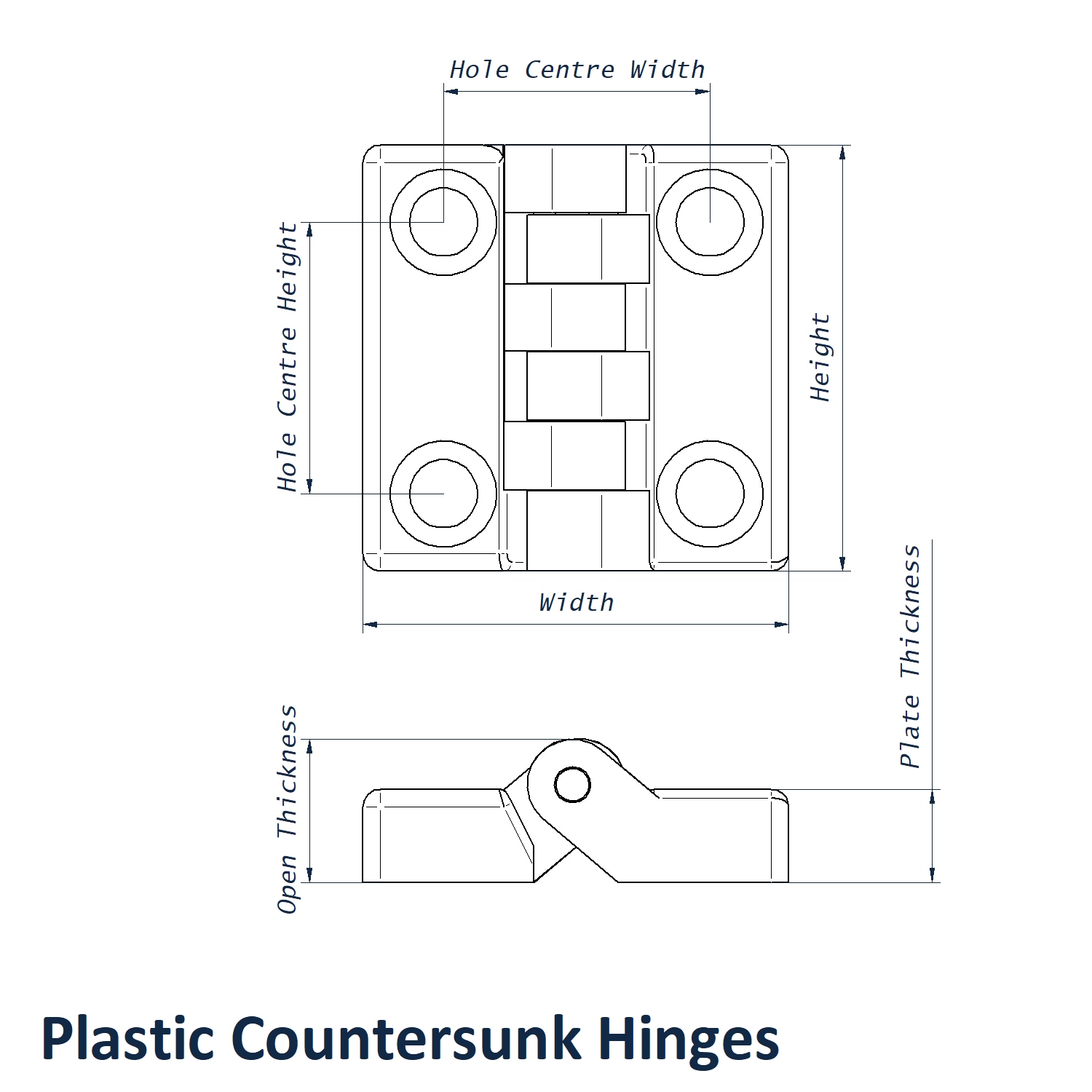

48mm x 48mm Black Plastic Countersunk Hinge Dimensions
- Height: 48mm
- Open Width: 48mm
- Hole Centre Height: 30mm
- Hole Centre Width: 30mm
- Plate Thickness: 11mm
- Open Thickness: 16mm
- Hole Size: 7mm
- Colour: Black
- Material: Nylon
Choosing Plastic Countersunk Hinges
For best results, match the hinge to the panel thickness, fastener diameter and required opening clearance before installation. Countersunk fixings should be seated evenly to avoid distorting the nylon leaf during assembly.

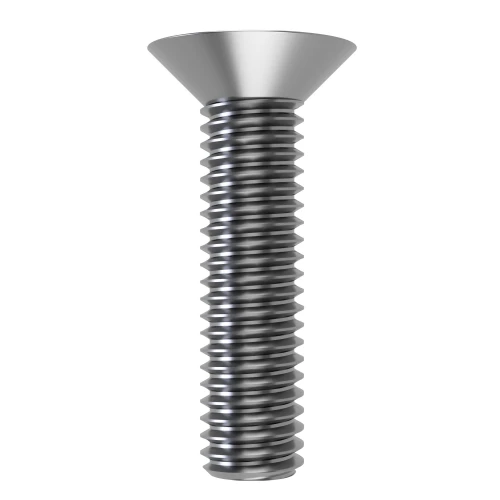

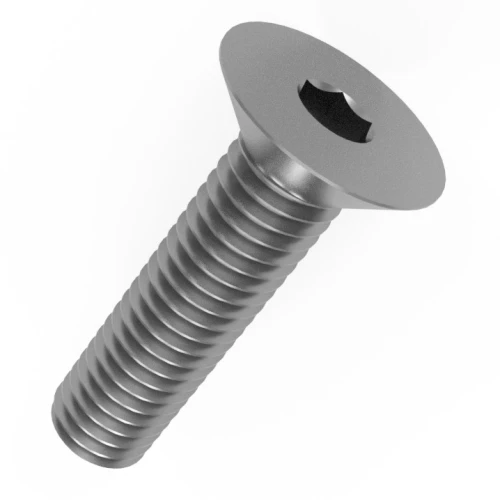

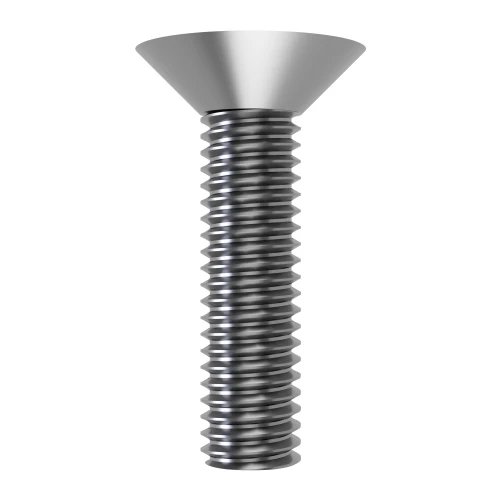

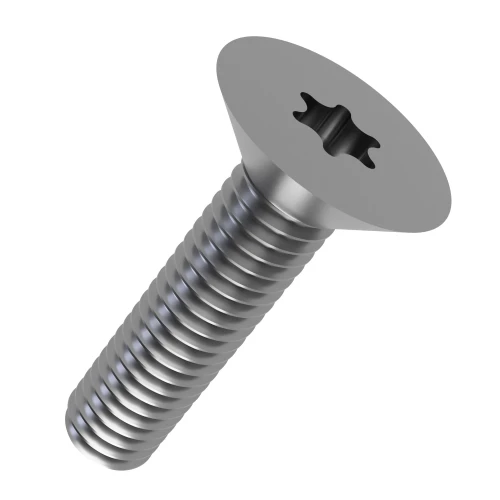

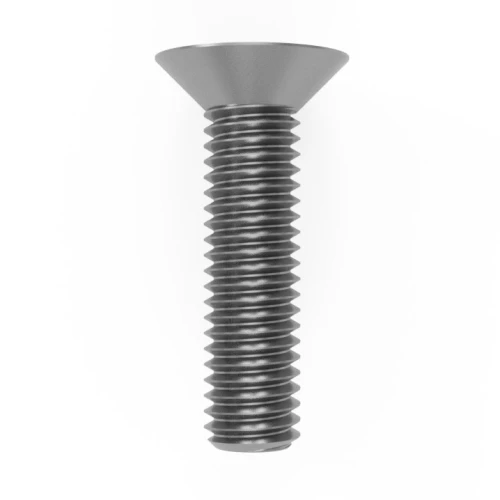

Commonly Paired Fixings
Commonly paired with countersunk screws and panel fixing hardware, this hinge is useful when a clean face finish is required on compact access points. Use suitable fasteners for the substrate and loading requirements of the finished panel.
View our full range of plastic countersunk hinges.
