Plastic Offset Lift-off Hinge - HIN243
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.48 | £4.17 |
| 10 - 24 | £3.23 | £3.87 |
| 25 - 49 | £2.98 | £3.58 |
| 50 - 99 | £2.58 | £3.10 |
| 100 - 499 | £2.08 | £2.50 |
| 500 + | £1.79 | £2.15 |
£4.17 / each
.png)
Product Specification
| Thread Size | M6 |
| Assembled Height | 83mm |
| Vertical Hole Distance | 25.5mm |
| Horizontal Offset Hole Distance | 25.5mm |
| Chirality | Right Handed |
| Male And Female Part Individual Width | 28mm |
| Male And Female Individual Height | 38mm |
| Thickness | 22mm |
| Open Width | 38mm |
| Colour | Black |
| Material | Nylon |
| Axial Load | 640N |
| Radial Load | 220N |
Frequently Bought Together
Total Price: £0.00

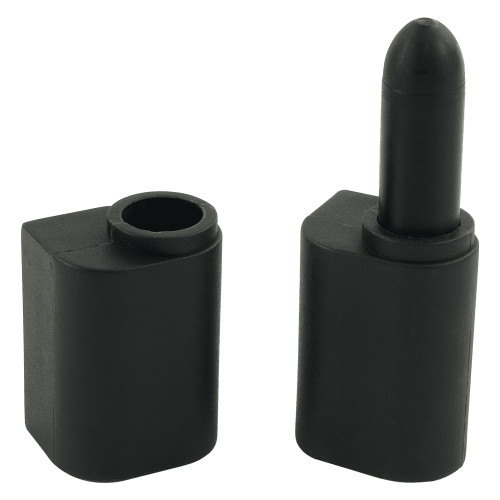

83mm x 28mm M6 Right Handed Plastic Offset Lift-off Hinge | Black Nylon
This 83mm x 28mm M6 right handed Plastic Offset Lift-off Hinge is built for removable panels on equipment where a larger hinge size and clean black finish are required. The nylon construction offers a practical alternative to metal hinges on many enclosure and equipment builds.
With right handed chirality and an offset lift-off arrangement, this hinge helps create access doors that can be detached for inspection, repair or component replacement. It is particularly useful where operators need the full opening clear during planned maintenance.
Common Applications
- Automation equipment panels where right handed removable access is specified
- Larger enclosure doors on manufacturing and process equipment
- Safety covers, inspection flaps and removable service panels
- OEM cabinet builds requiring black nylon offset lift-off hinges with M6 mounting points

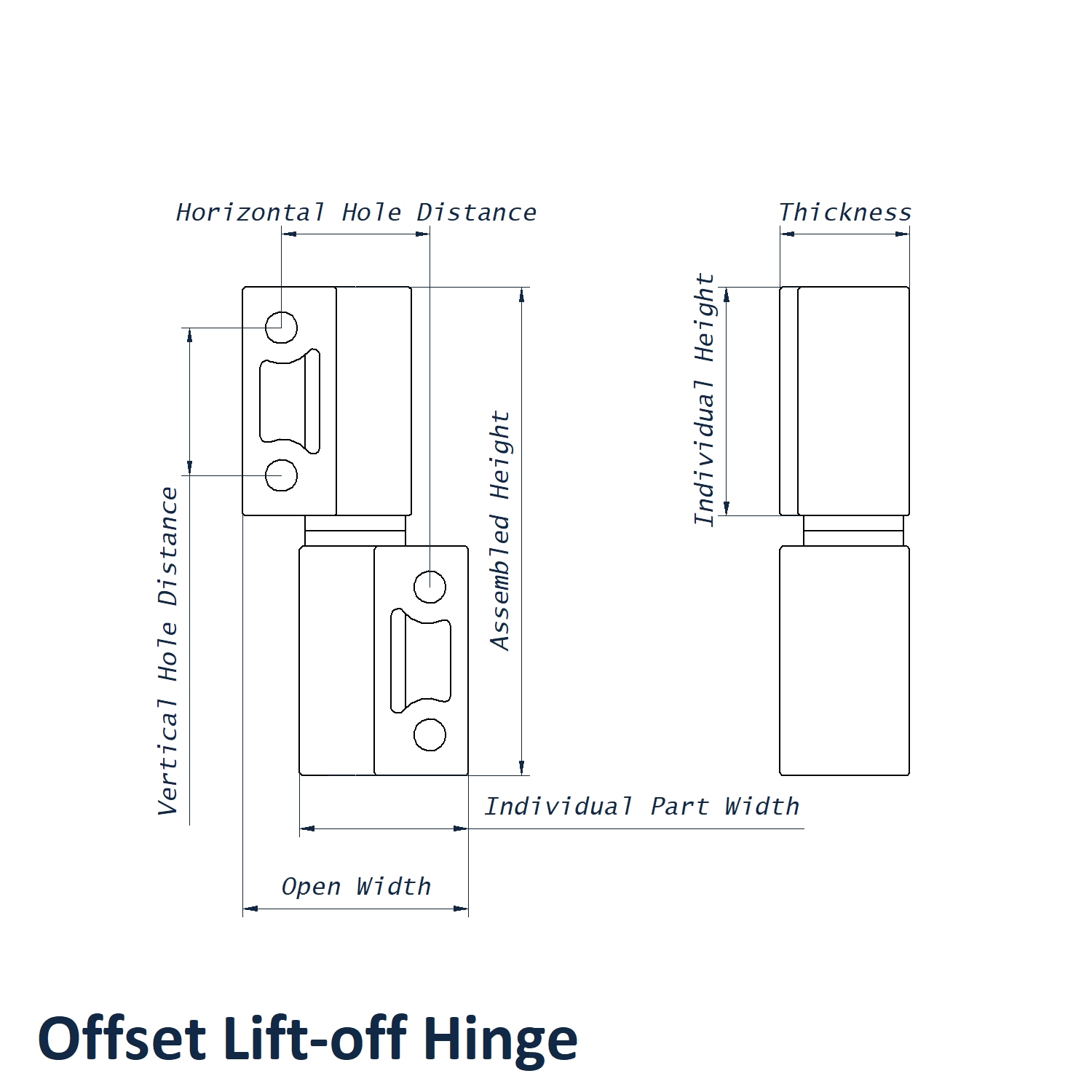

83mm x 28mm M6 Right Handed Plastic Offset Lift-off Hinge Dimensions
- Assembled Height: 83mm
- Male And Female Part Individual Width: 28mm
- Vertical Hole Distance: 25.5mm
- Horizontal Offset Hole Distance: 25.5mm
- Male And Female Individual Height: 38mm
- Thickness: 22mm
- Open Width: 38mm
- Thread Size: M6
- Chirality: Right Handed
- Material: Nylon
- Colour: Black
When to Use a Right Handed Offset Lift-off Hinge
Right handed lift-off hinges are commonly chosen when the hinge orientation must match the access side of the enclosure or the handed arrangement of existing equipment. This helps maintain consistent door removal across a full build.
Mounting Recommendation
Check the M6 threaded mounting positions against the panel design before installation. Accurate hole spacing helps the hinge operate smoothly and keeps removable access panels seated correctly.
View our full Plastic Offset Lift-off Hinge range for additional sizes, handed options and enclosure hardware.
