Plastic Offset Lift-off Hinge - HIN241
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.32 | £3.98 |
| 10 - 24 | £3.08 | £3.69 |
| 25 - 49 | £2.84 | £3.41 |
| 50 - 99 | £2.46 | £2.95 |
| 100 - 499 | £1.99 | £2.39 |
| 500 + | £1.70 | £2.04 |
£3.98 / each
.png)
Product Specification
| Thread Size | M5 |
| Assembled Height | 62mm |
| Vertical Hole Distance | 19mm |
| Horizontal Offset Hole Distance | 19mm |
| Chirality | Right Handed |
| Male And Female Part Individual Width | 22mm |
| Male And Female Individual Height | 29mm |
| Thickness | 17mm |
| Open Width | 29mm |
| Colour | Black |
| Material | Nylon |
| Axial Load | 490N |
| Radial Load | 170N |
Frequently Bought Together
Total Price: £0.00

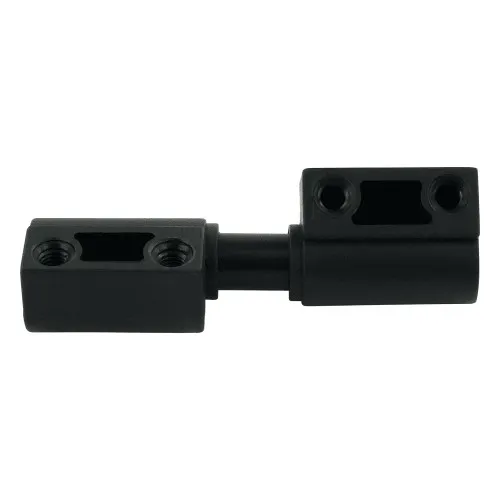

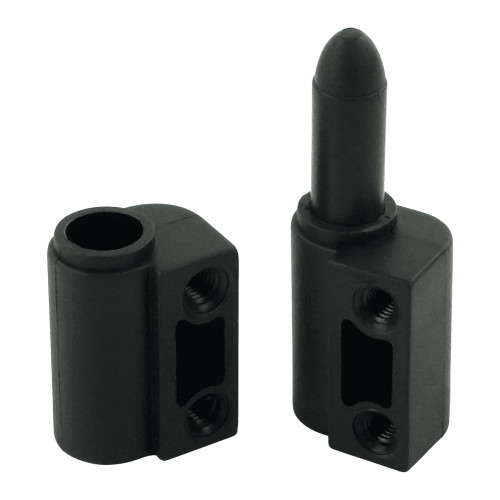

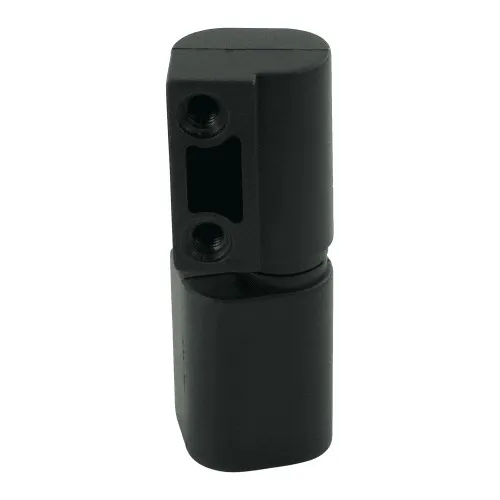

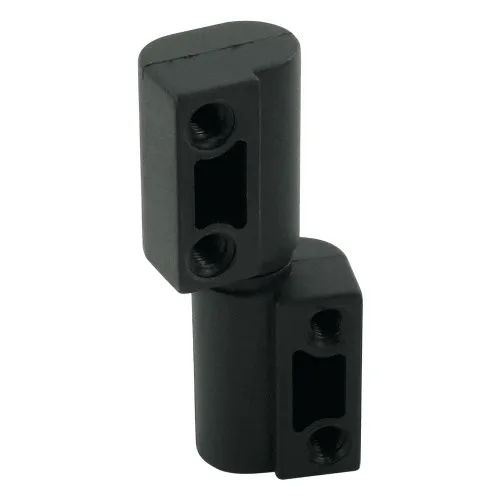

62mm x 22mm M5 Right Handed Plastic Offset Lift-off Hinge | Black Nylon
This 62mm x 22mm M5 right handed Plastic Offset Lift-off Hinge gives cabinet builders a compact hinge option for removable doors, guards and service panels. Its black nylon construction makes it practical for equipment where a neat appearance and low component weight are both important.
The offset profile allows panels to sit correctly while still giving the user a lift-off function for routine access. It is a strong choice for HVAC access covers, telecoms cabinets and smaller industrial enclosures where right handed door removal is preferred.
Common Applications
- HVAC units with right handed service doors or removable inspection covers
- Telecoms and data cabinets where panel access needs to be simple and repeatable
- Commercial equipment enclosures that require a black plastic removable hinge
- Fabricated housings where threaded insert hinges simplify installation

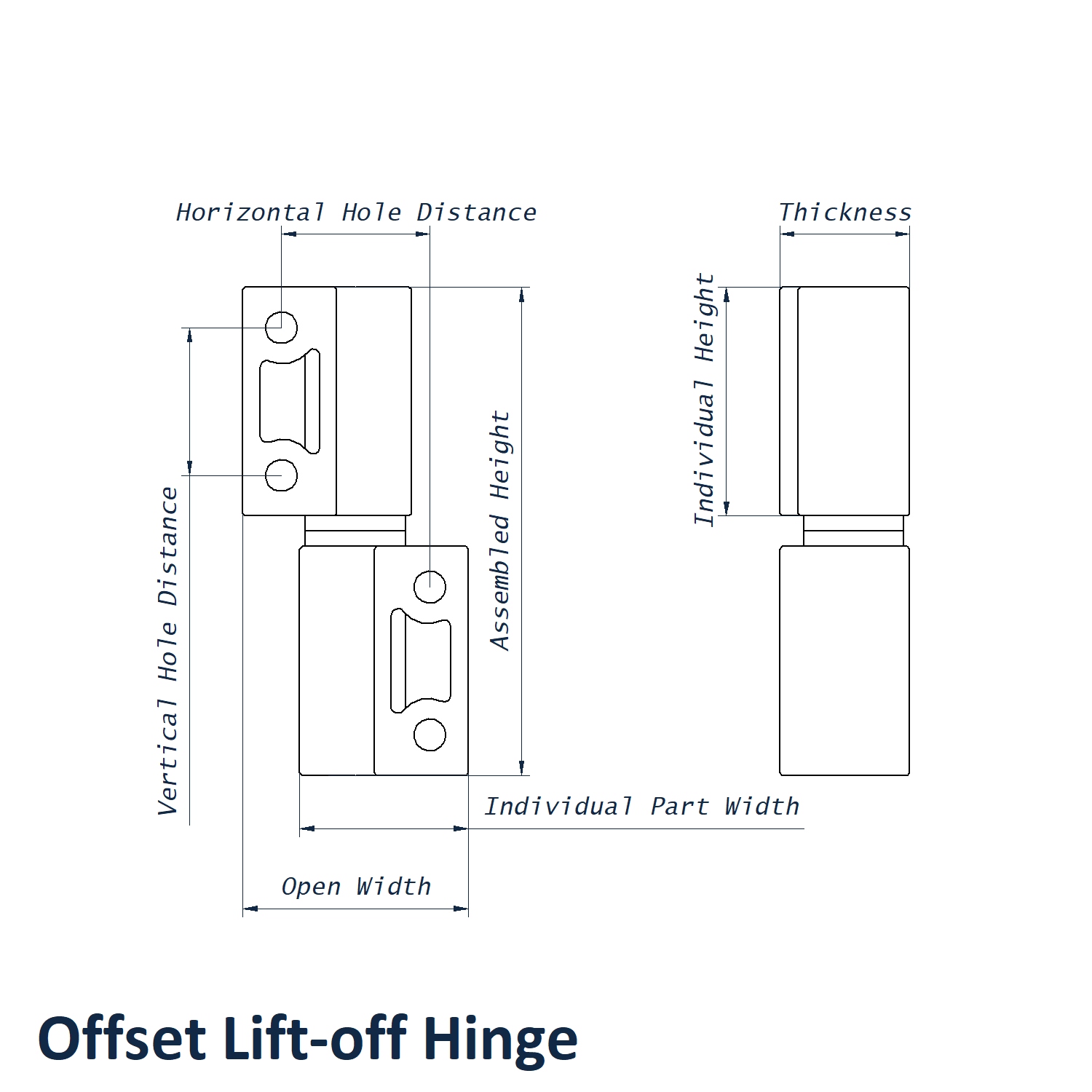

62mm x 22mm M5 Right Handed Plastic Offset Lift-off Hinge Dimensions
- Assembled Height: 62mm
- Male And Female Part Individual Width: 22mm
- Vertical Hole Distance: 19mm
- Horizontal Offset Hole Distance: 19mm
- Male And Female Individual Height: 29mm
- Thickness: 17mm
- Open Width: 29mm
- Thread Size: M5
- Chirality: Right Handed
- Material: Nylon
- Colour: Black
Right Handed Lift-off Door Positioning
A right handed offset lift-off hinge helps keep removable panels consistent across cabinet runs, particularly where the service side of the product is fixed by the equipment layout.
Installation Note
Use fixing screws that suit the M5 threaded insert and check both hinge halves are aligned before tightening. Correct alignment supports smooth lifting and helps reduce unnecessary strain on the hinge body.
View our full Plastic Offset Lift-off Hinge range for additional sizes, handed options and enclosure hardware.
