Plastic Offset Lift-off Hinge - HIN242
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.50 | £4.20 |
| 10 - 24 | £3.25 | £3.90 |
| 25 - 49 | £3.00 | £3.60 |
| 50 - 99 | £2.60 | £3.12 |
| 100 - 499 | £2.10 | £2.52 |
| 500 + | £1.80 | £2.16 |
£4.20 / each
.png)
Product Specification
| Thread Size | M6 |
| Assembled Height | 83mm |
| Vertical Hole Distance | 25.5mm |
| Horizontal Offset Hole Distance | 25.5mm |
| Chirality | Left Handed |
| Male And Female Part Individual Width | 28mm |
| Male And Female Individual Height | 38mm |
| Thickness | 22mm |
| Open Width | 38mm |
| Colour | Black |
| Material | Nylon |
| Axial Load | 640N |
| Radial Load | 220N |
Frequently Bought Together
Total Price: £0.00

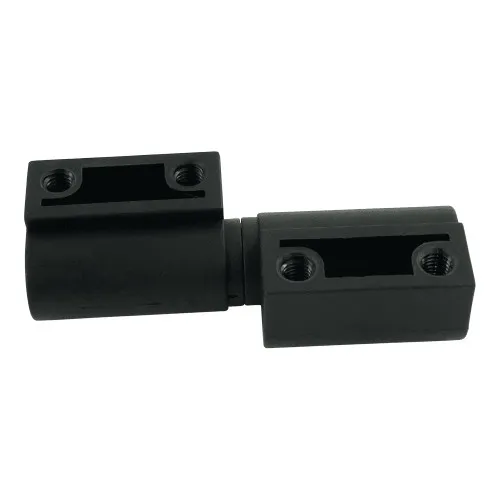

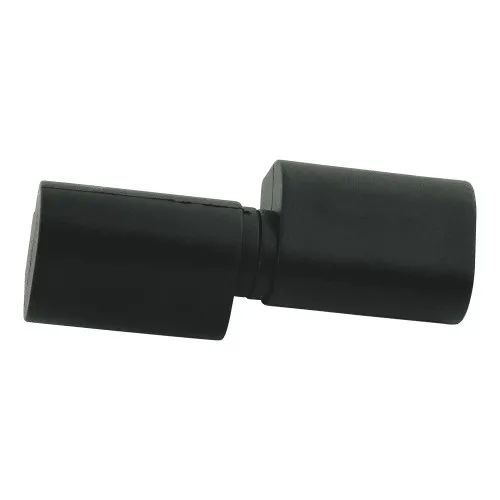

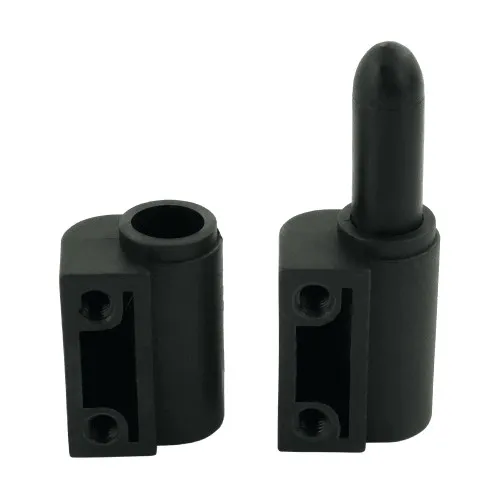

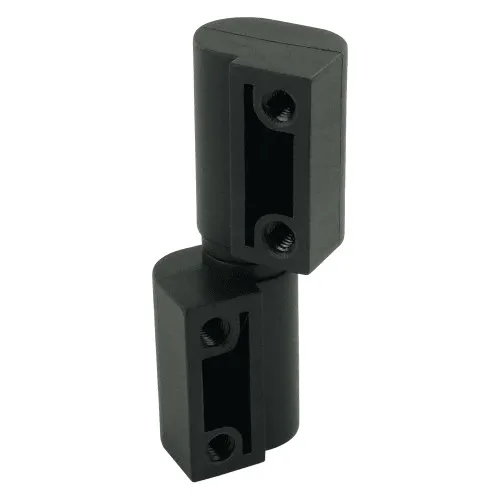

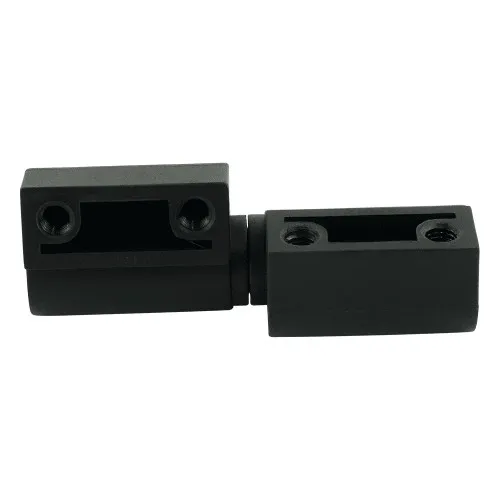

83mm x 28mm M6 Left Handed Plastic Offset Lift-off Hinge | Black Nylon
This 83mm x 28mm M6 left handed Plastic Offset Lift-off Hinge provides a larger nylon hinge format for machinery covers, removable access doors and industrial enclosure panels. The increased assembled height and M6 mounting thread make it suitable for more substantial equipment layouts.
Its black nylon body is ideal where a non-metallic hinge is preferred for appearance, corrosion resistance or weight reduction. The lift-off action allows maintenance teams to remove panels fully rather than working around a fixed swinging door.
Common Applications
- Machine guarding panels where left handed lift-off access improves servicing space
- Industrial cabinets and enclosure doors fitted to production equipment
- Packaging machinery covers requiring removable plastic hinges
- Maintenance access panels on fabricated frames and specialist equipment

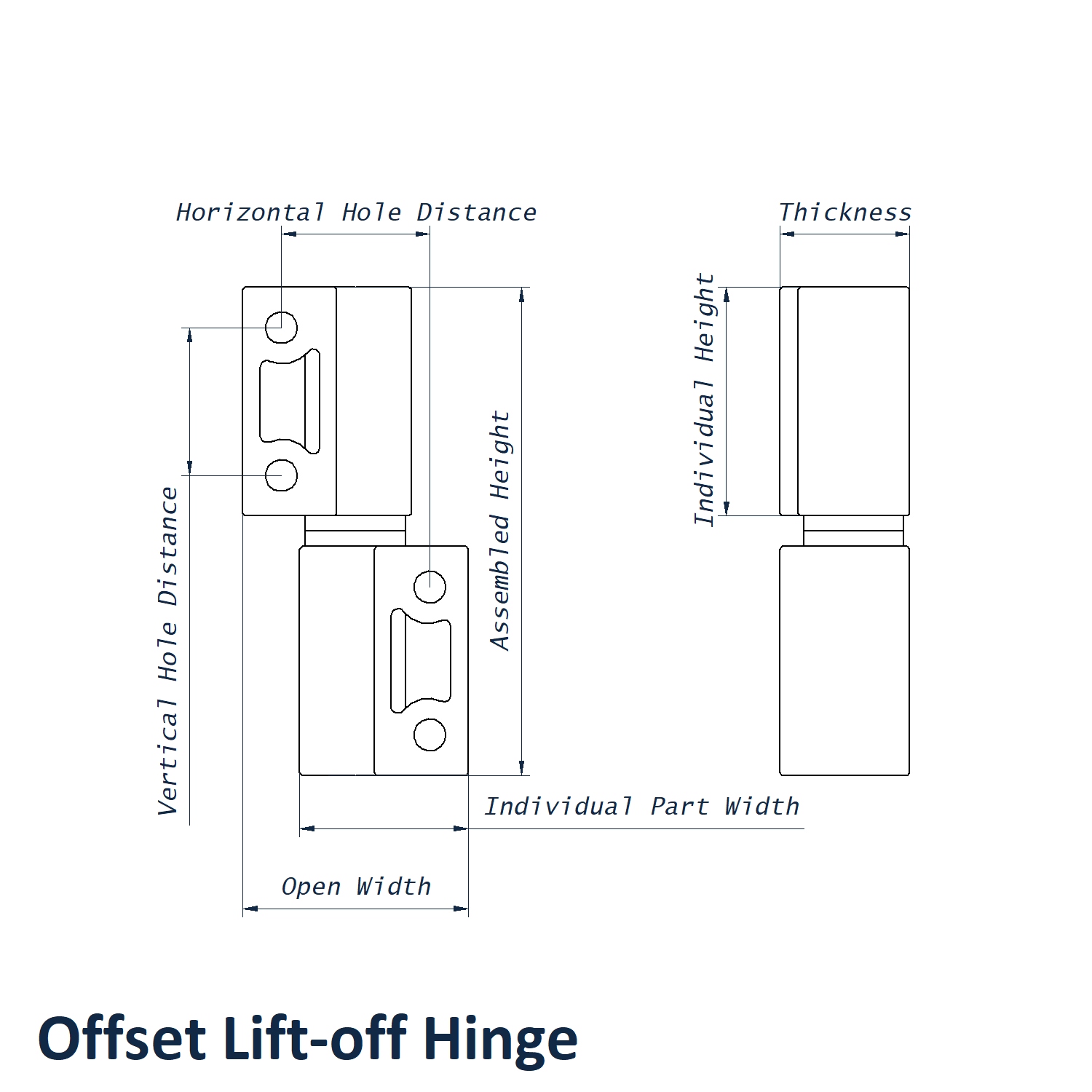

83mm x 28mm M6 Left Handed Plastic Offset Lift-off Hinge Dimensions
- Assembled Height: 83mm
- Male And Female Part Individual Width: 28mm
- Vertical Hole Distance: 25.5mm
- Horizontal Offset Hole Distance: 25.5mm
- Male And Female Individual Height: 38mm
- Thickness: 22mm
- Open Width: 38mm
- Thread Size: M6
- Chirality: Left Handed
- Material: Nylon
- Colour: Black
Larger Format Offset Hinge Selection
The 83mm assembled height gives this hinge a broader mounting footprint than smaller lift-off hinge options, making it well suited to larger cabinet doors or access panels that need a left handed removable arrangement.
Fixing and Panel Alignment
Pair the hinge with M6 compatible fixings and ensure the door gap allows the male and female sections to disengage cleanly when lifted. This is especially important on taller machinery panels.
View our full Plastic Offset Lift-off Hinge range for additional sizes, handed options and enclosure hardware.
