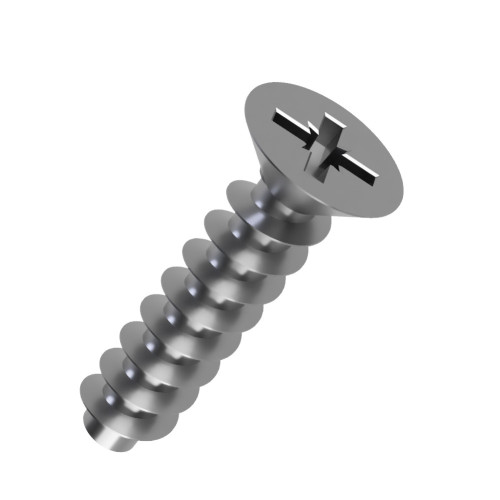

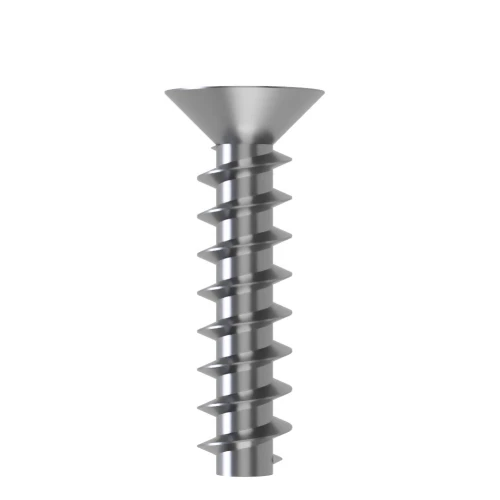

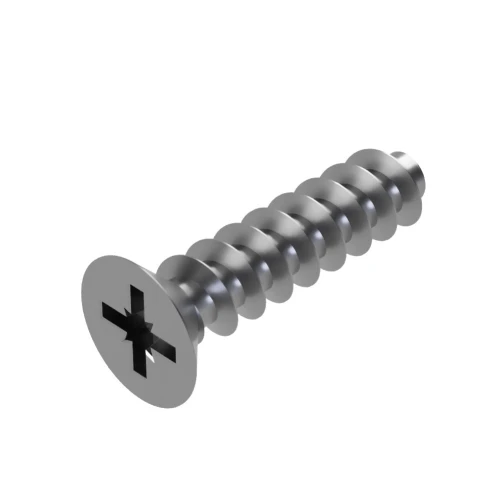

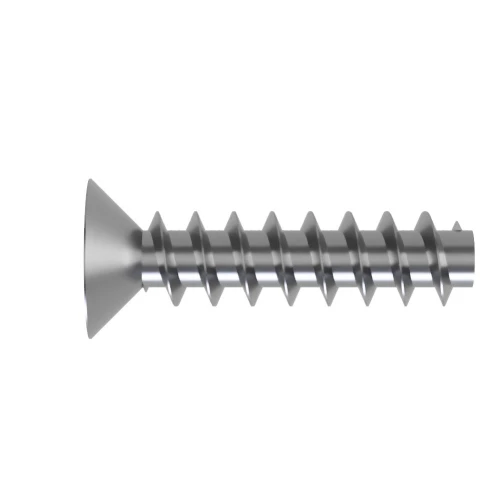

3.5mm x 10mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ1 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.38 | £0.46 |
| 50 - 99 | £0.23 | £0.28 |
| 100 - 249 | £0.16 | £0.19 |
| 250 - 499 | £0.12 | £0.14 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.06 | £0.07 |
£0.46 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 10mm |
| Material | A2 Stainless Steel |
| Head Diameter | 6.30mm |
| Head Height | 1.65mm |
| Drive | PZ1 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3.5mm x 10mm Pozi Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Providing a dedicated fastening option for external plastic fixtures, this 3.5mm x 10mm Pozi Countersunk PT45 Screw combines a 45° trilobular thread with A2 Stainless Steel. The design is well suited to harder plastics while the countersunk head provides a neat flush fit where the component has a matching recess.
What Are Pozi Countersunk PT45 Screws?
Pozi Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics while the countersunk head allows flush installation into a matching recess.
Common Applications
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers and moulded appliance parts.
- Lighting Products: Secures rigid plastic bezels, covers and housings where a flush finished face is useful.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while allowing a flush head finish.
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.

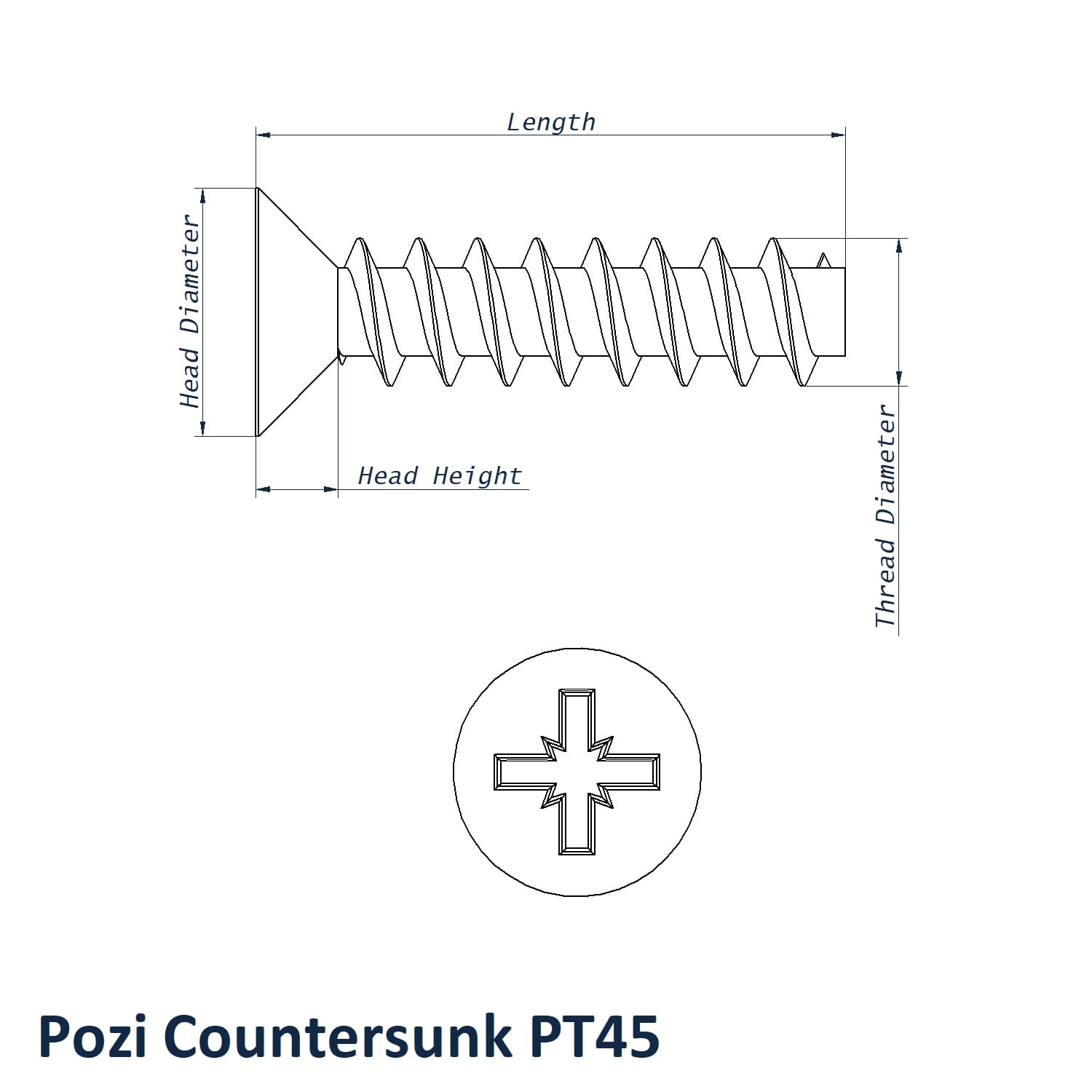

3.5mm x 10mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 10mm
- Head Diameter: 6.30mm
- Head Height: 1.65mm
- Drive: PZ1
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- 3.5mm thread size and 10mm thread length provide the primary fastening dimensions.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
Compare other sizes in the Vital Parts Pozi Countersunk PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
