3.5mm x 12mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ1 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.47 | £0.56 |
| 50 - 99 | £0.28 | £0.34 |
| 100 - 249 | £0.18 | £0.22 |
| 250 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.56 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 12mm |
| Material | A2 Stainless Steel |
| Head Diameter | 6.30mm |
| Head Height | 1.65mm |
| Drive | PZ1 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

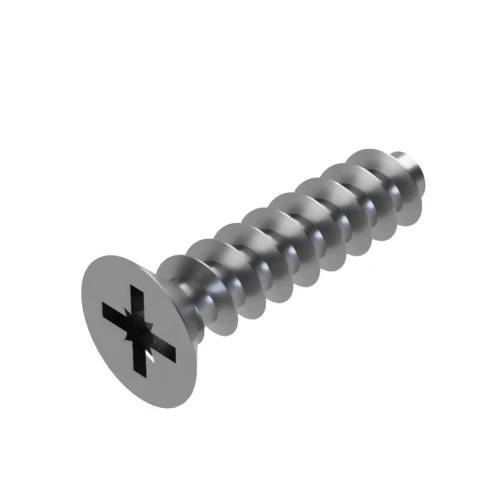

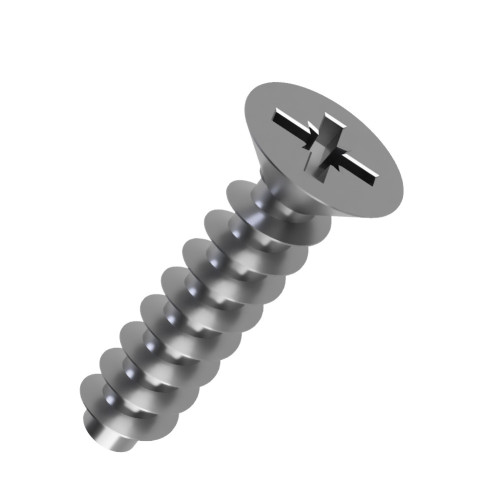

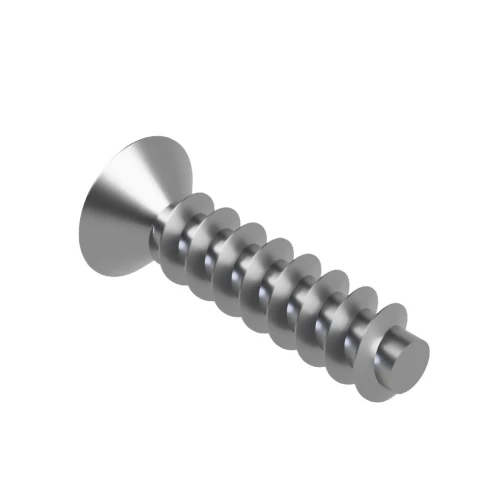

3.5mm x 12mm Pozi Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Developed for external plastic fixtures, this 3.5mm x 12mm Pozi Countersunk Screw is part of the PT45 range for harder plastics. The trilobular 45° thread helps form a secure mating thread in compatible materials such as polycarbonate and reinforced plastics.
What Are Pozi Countersunk PT45 Screws?
PT45 Pozi Countersunk Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while the head can finish level with the surrounding component surface.
Common Applications
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers and moulded appliance parts.
- Lighting Products: Secures rigid plastic bezels, covers and housings where a flush finished face is useful.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while allowing a flush head finish.
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.

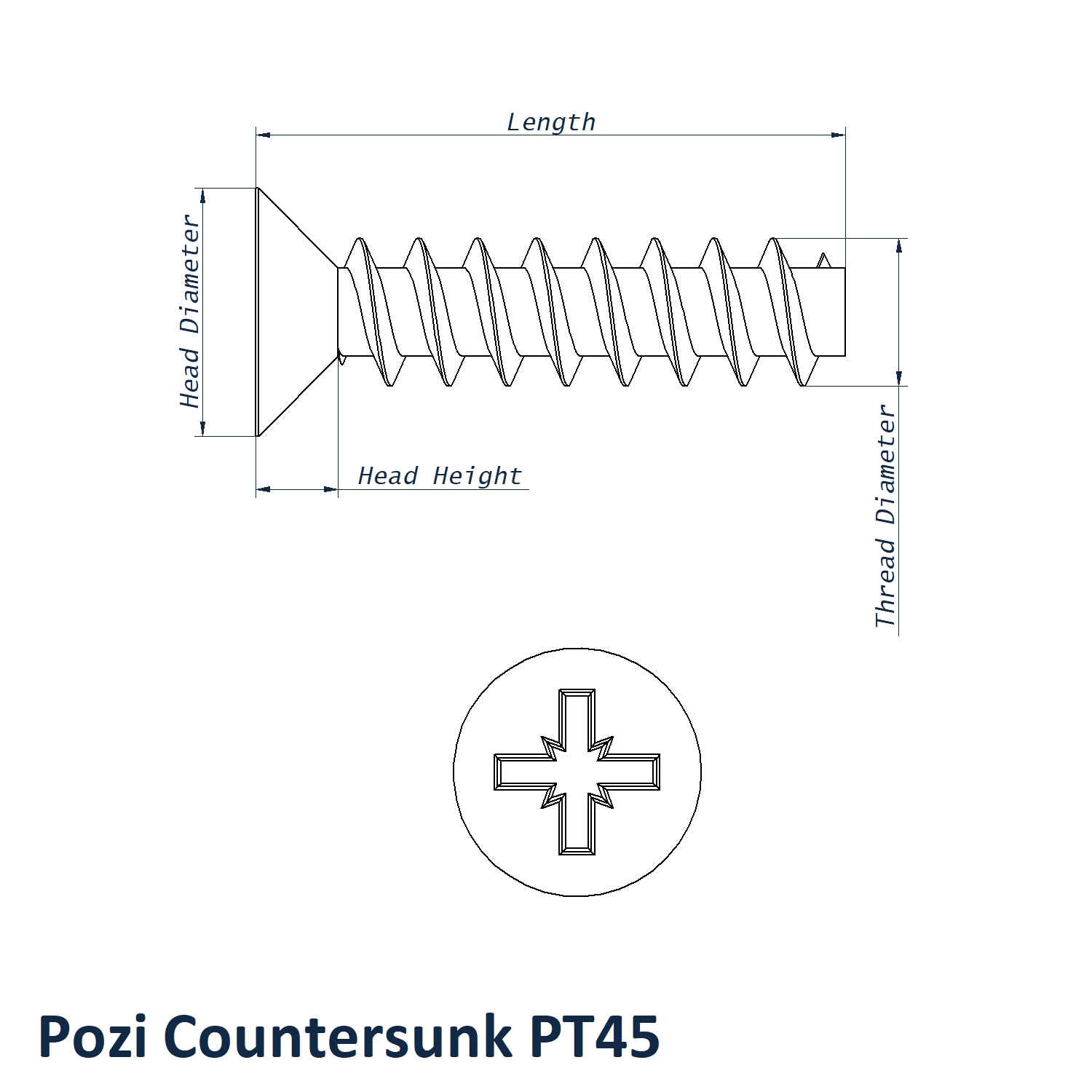

3.5mm x 12mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 12mm
- Head Diameter: 6.30mm
- Head Height: 1.65mm
- Drive: PZ1
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- 3.5mm thread size and 12mm thread length provide the primary fastening dimensions.
- PZ1 Pozi drive provides a widely available drive format for production and maintenance.
- A2 Stainless Steel provides improved corrosion resistance for more demanding hard-plastic fastening environments.
See related dimensions and materials in the Pozi Countersunk PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
