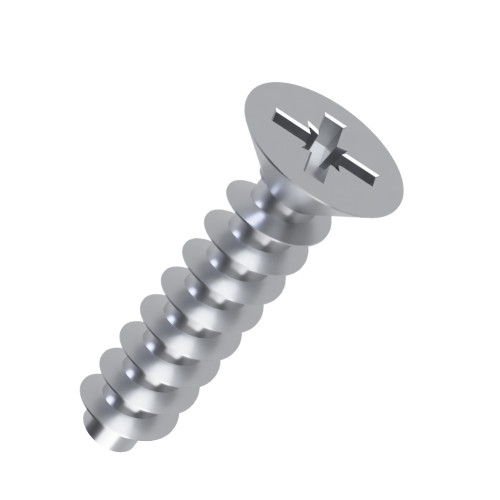

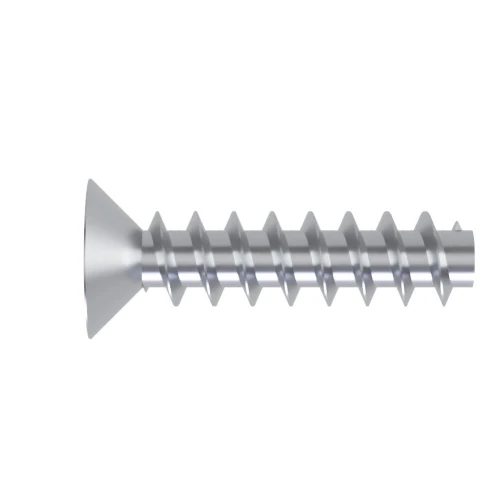

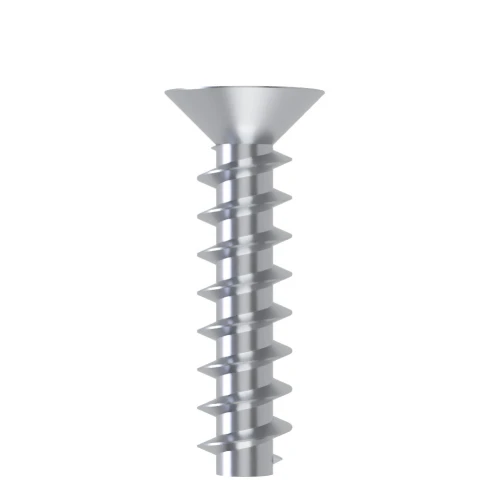

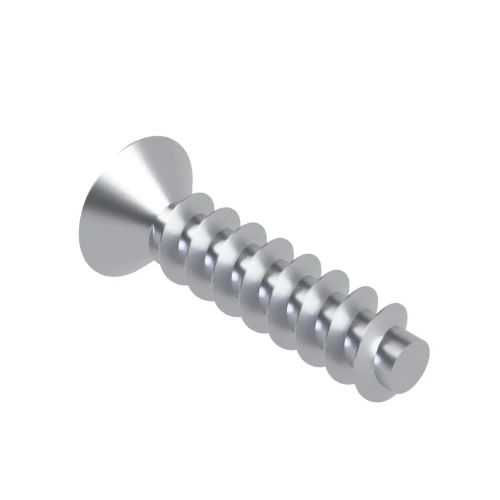

4mm x 12mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ2 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.20 | £0.24 |
| 50 - 99 | £0.12 | £0.14 |
| 100 - 249 | £0.07 | £0.09 |
| 250 - 499 | £0.06 | £0.07 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
£0.24 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 12mm |
| Material | Steel BZP |
| Head Diameter | 7.35mm |
| Head Height | 1.90mm |
| Drive | PZ2 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
4mm x 12mm Pozi Countersunk PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Commonly used for consumer electronics and appliance housings, this 4mm x 12mm PT45 plastic fastener features a Countersunk head and PZ2 Pozi drive. The Bright Zinc Plated Steel screw forms its thread within a suitably designed moulded or predrilled pilot hole and finishes flush when installed into a matching countersink.
What Are Pozi Countersunk PT45 Screws?
A PT45 Countersunk screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Furniture Components: Secures suitable engineering-plastic fittings and panels used in furniture manufacture.
- Glass-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.

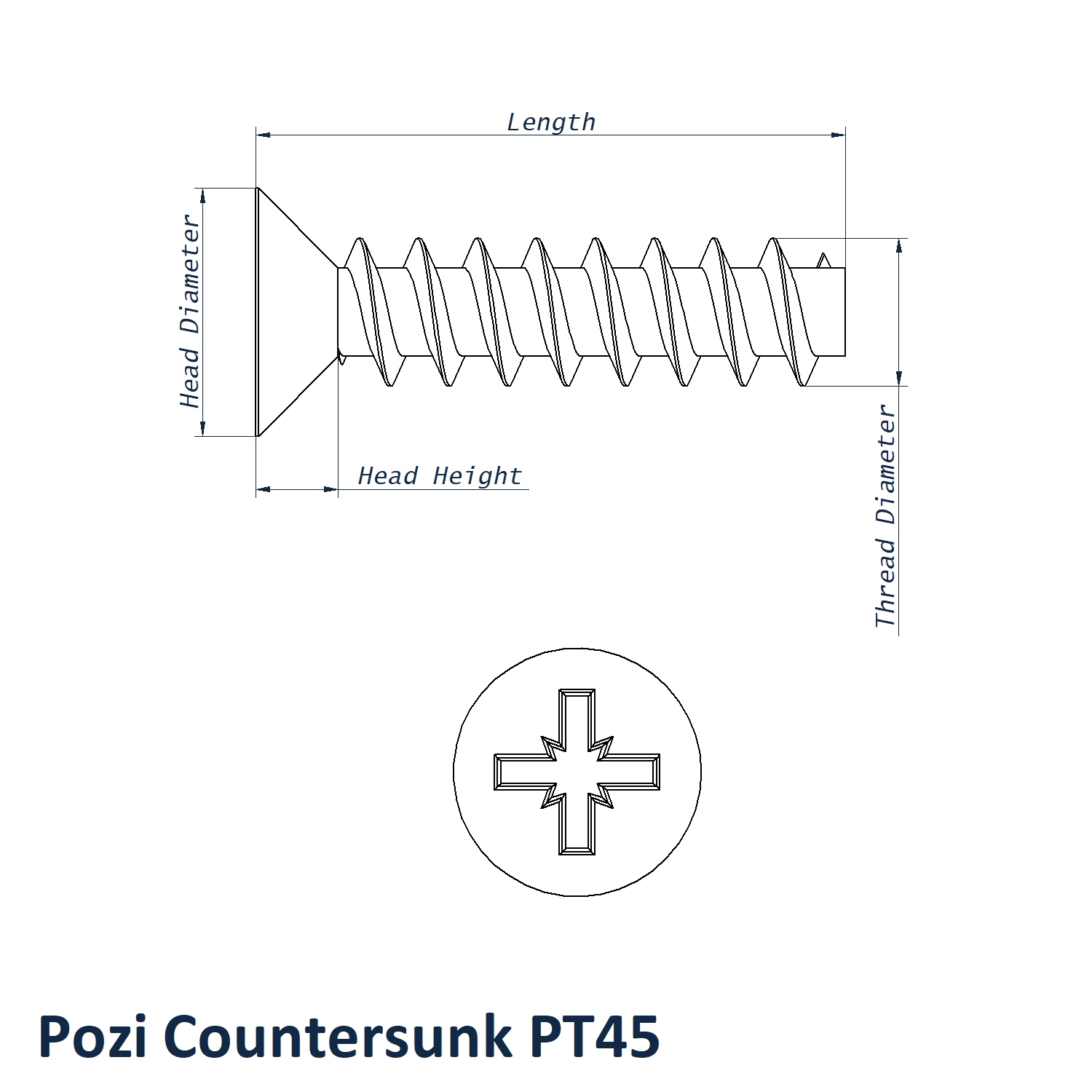

4mm x 12mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 12mm
- Head Diameter: 7.35mm
- Head Height: 1.90mm
- Drive: PZ2
- Material: Steel BZP
- Head Style: Countersunk
Key Benefits
- 7.35mm head diameter and 1.90mm head height match the uploaded SKU specification.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- 4mm thread size and 12mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Pozi Countersunk PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
