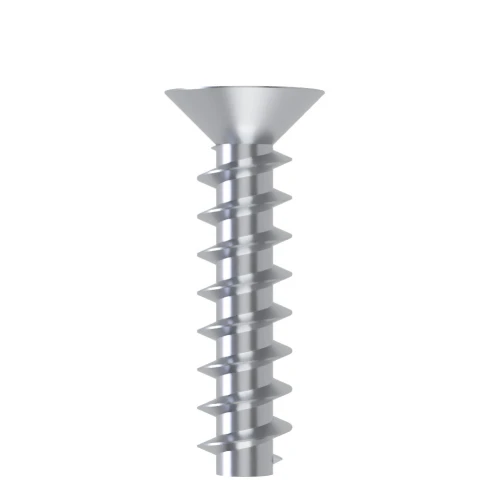

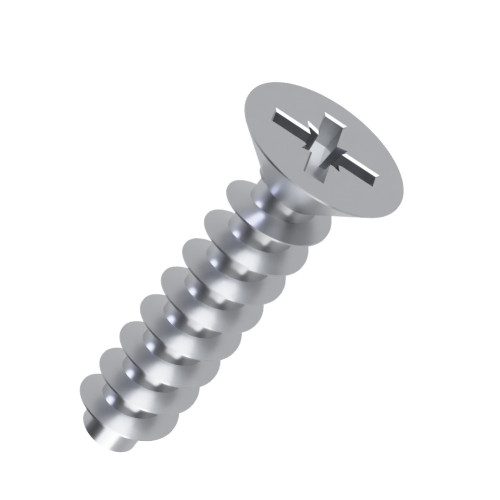

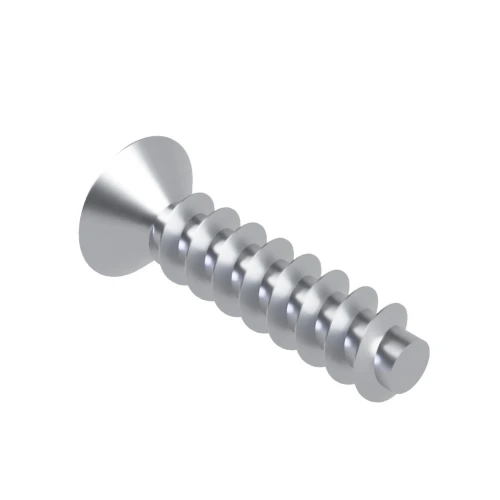

4mm x 16mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ2 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.18 | £0.22 |
| 50 - 99 | £0.11 | £0.13 |
| 100 - 249 | £0.07 | £0.09 |
| 250 - 499 | £0.06 | £0.07 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
£0.22 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 16mm |
| Material | Steel BZP |
| Head Diameter | 7.35mm |
| Head Height | 1.90mm |
| Drive | PZ2 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
4mm x 16mm Pozi Countersunk PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Offering a thread-forming solution for office equipment and plastic casings, this 4mm x 16mm PT45 Screw combines a Countersunk head with a PZ2 Pozi recess. The Bright Zinc Plated Steel fastener uses a shorter 45° thread and trilobular body to suit compatible hard plastics and reinforced materials.
What Are Pozi Countersunk PT45 Screws?
Pozi Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics while the countersunk head allows flush installation into a matching recess.
Common Applications
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers and moulded appliance parts.
- Lighting Products: Secures rigid plastic bezels, covers and housings where a flush finished face is useful.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while allowing a flush head finish.
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.

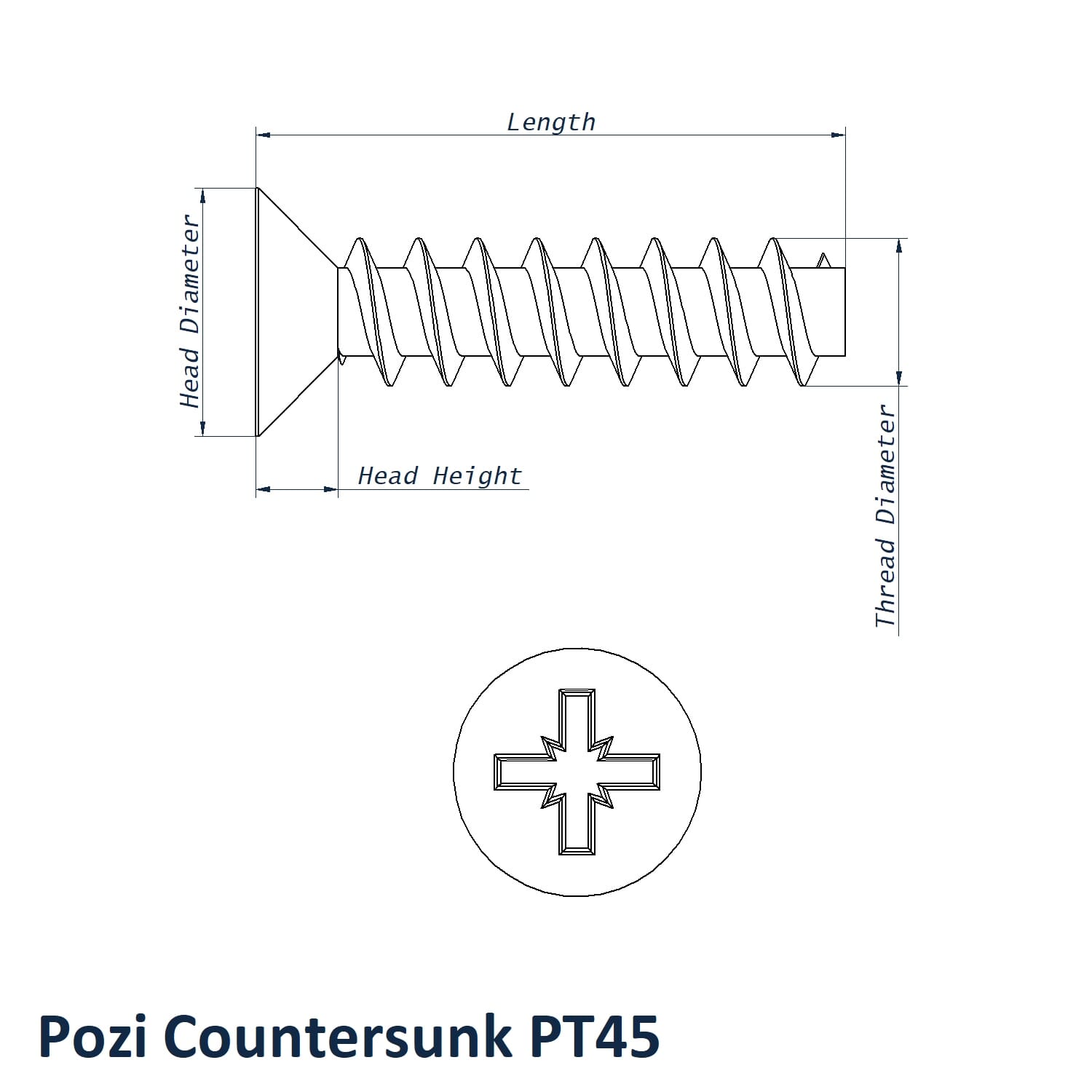

4mm x 16mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 16mm
- Head Diameter: 7.35mm
- Head Height: 1.90mm
- Drive: PZ2
- Material: Steel BZP
- Head Style: Countersunk
Key Benefits
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- PZ2 Pozi drive provides a widely available drive format for production and maintenance.
See related dimensions and materials in the Pozi Countersunk PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
