5mm x 10mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ2 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.19 | £0.23 |
| 50 - 99 | £0.12 | £0.14 |
| 100 - 249 | £0.07 | £0.09 |
| 250 - 499 | £0.06 | £0.07 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.03 |
£0.23 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 10mm |
| Material | Steel BZP |
| Head Diameter | 9.60mm |
| Head Height | 2.30mm |
| Drive | PZ2 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

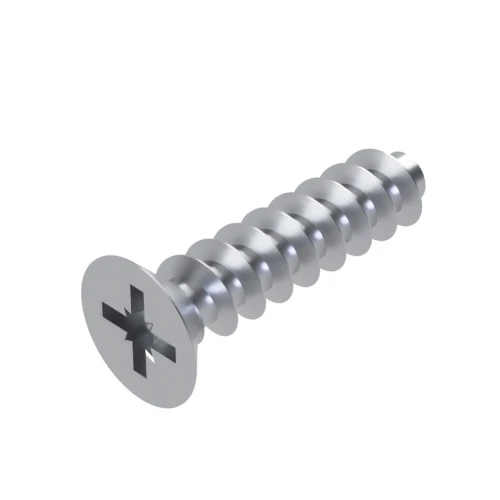

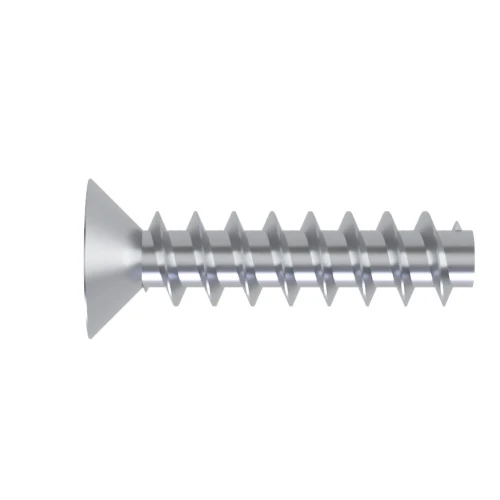

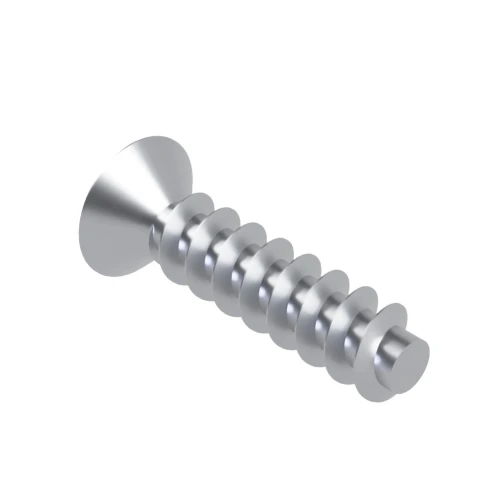

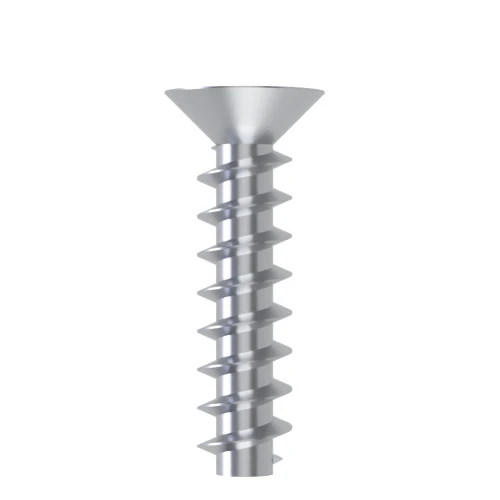

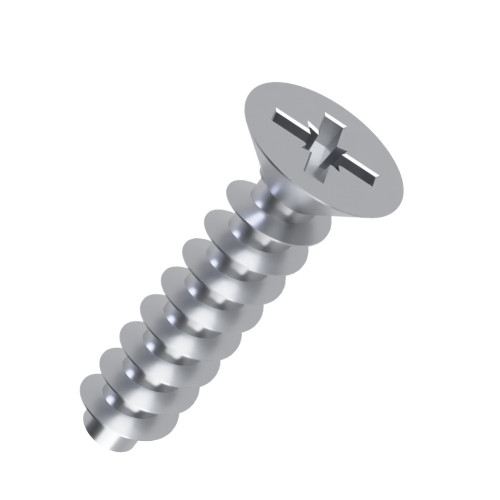

5mm x 10mm Pozi Countersunk PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Ideal for consumer electronics and appliance housings, this 5mm x 10mm PT45 plastic screw is manufactured from Bright Zinc Plated Steel with a Countersunk head and PZ2 Pozi drive. The trilobular thread form displaces compatible plastic to create the mating thread without relying on conventional cutting action.
What Are Pozi Countersunk PT45 Screws?
A PT45 Countersunk screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Automotive Components: Fastens rigid plastic trim and moulded components where a low-profile screw head is beneficial.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Furniture Components: Secures suitable engineering-plastic fittings and panels used in furniture manufacture.
- Glass-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.

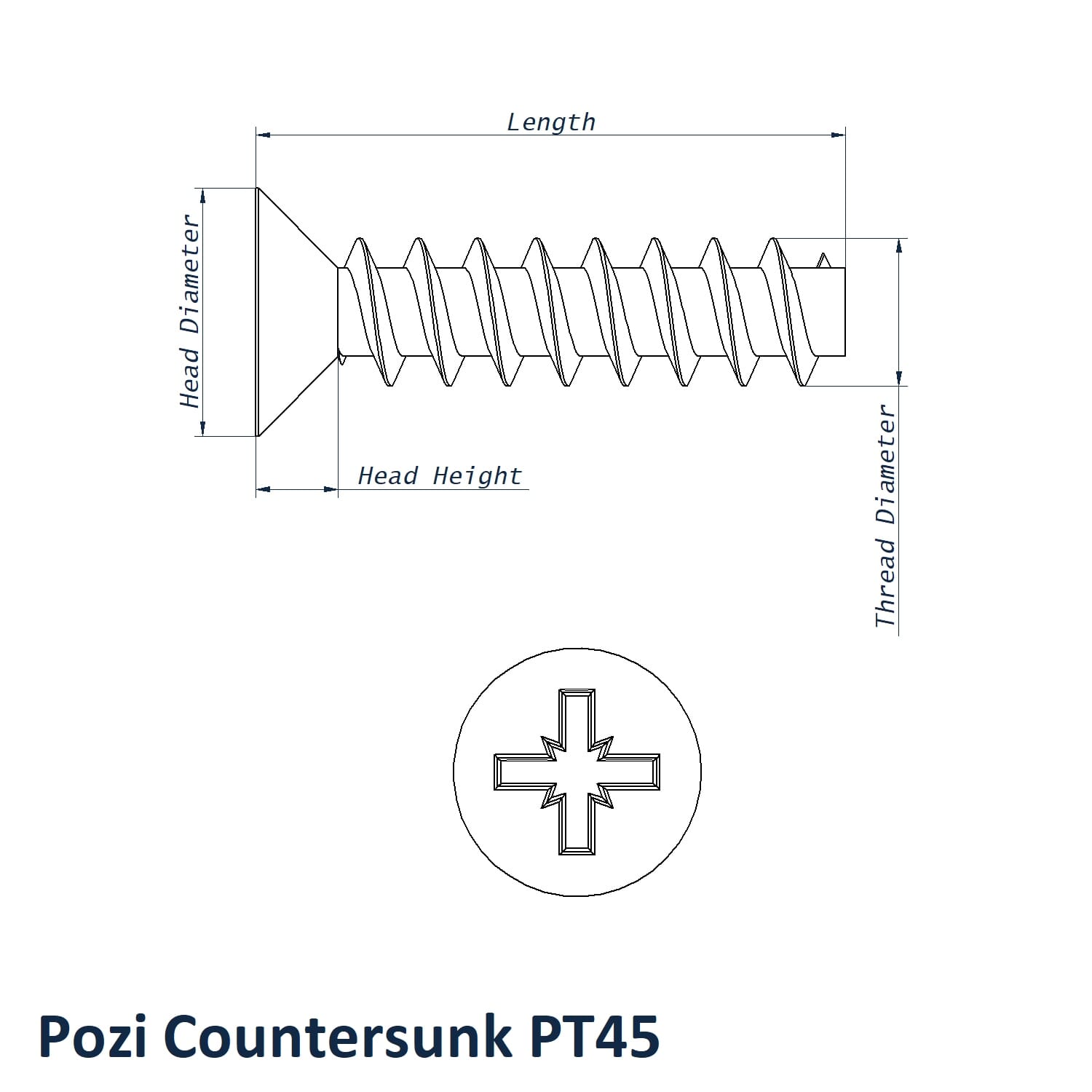

5mm x 10mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 10mm
- Head Diameter: 9.60mm
- Head Height: 2.30mm
- Drive: PZ2
- Material: Steel BZP
- Head Style: Countersunk
Key Benefits
- The engineering guide provides PT45 pilot-hole tables, boss-sizing guidance and thread-selection information.
- 9.60mm head diameter and 2.30mm head height match the uploaded SKU specification.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
Further PT45 sizes are available through the Pozi Countersunk Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
