5mm x 20mm Pozi Countersunk Screw for Hard Plastics (PT45) - PZ2 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.23 | £0.28 |
| 50 - 99 | £0.14 | £0.17 |
| 100 - 249 | £0.09 | £0.11 |
| 250 - 499 | £0.07 | £0.08 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.03 | £0.04 |
£0.28 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 20mm |
| Material | Steel BZP |
| Head Diameter | 9.60mm |
| Head Height | 2.30mm |
| Drive | PZ2 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

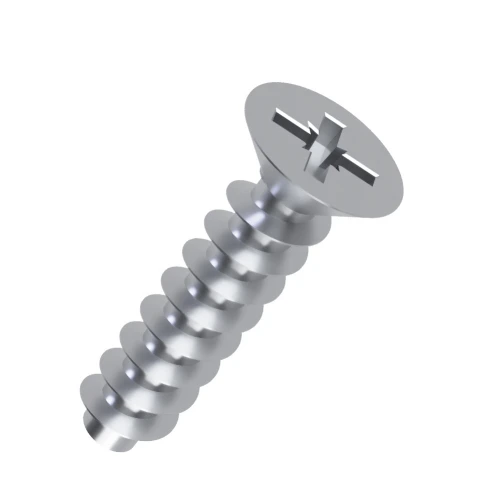

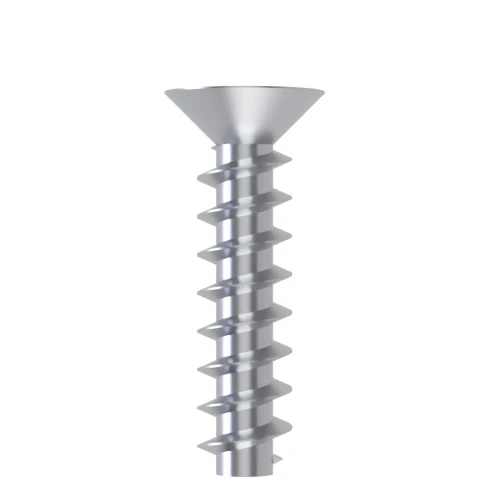

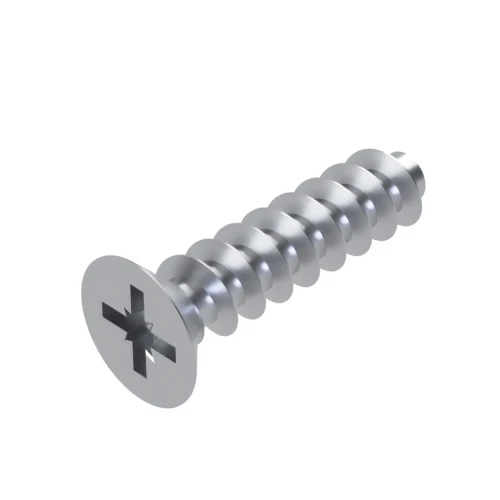

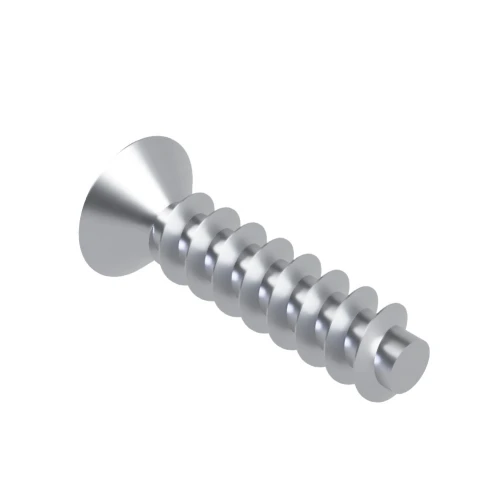

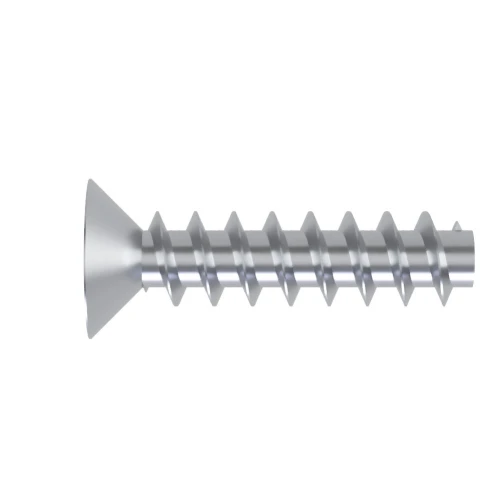

5mm x 20mm Pozi Countersunk PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Developed for instrument housings and control products, this 5mm x 20mm Pozi Countersunk Screw is part of the PT45 range for harder plastics. The trilobular 45° thread helps form a secure mating thread in compatible materials such as polycarbonate and reinforced plastics.
What Are Pozi Countersunk PT45 Screws?
PT45 Pozi Countersunk Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while the head can finish level with the surrounding component surface.
Common Applications
- Consumer Electronics: Secures hard-plastic casings and panels without leaving a prominent head above the surface.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.
- Prototype and Production Assemblies: Provides a specialist hard-plastic screw format for testing and repeat production fastening.
- Electrical Enclosures: Secures hard-plastic covers and panels where a countersunk surface finish is required.

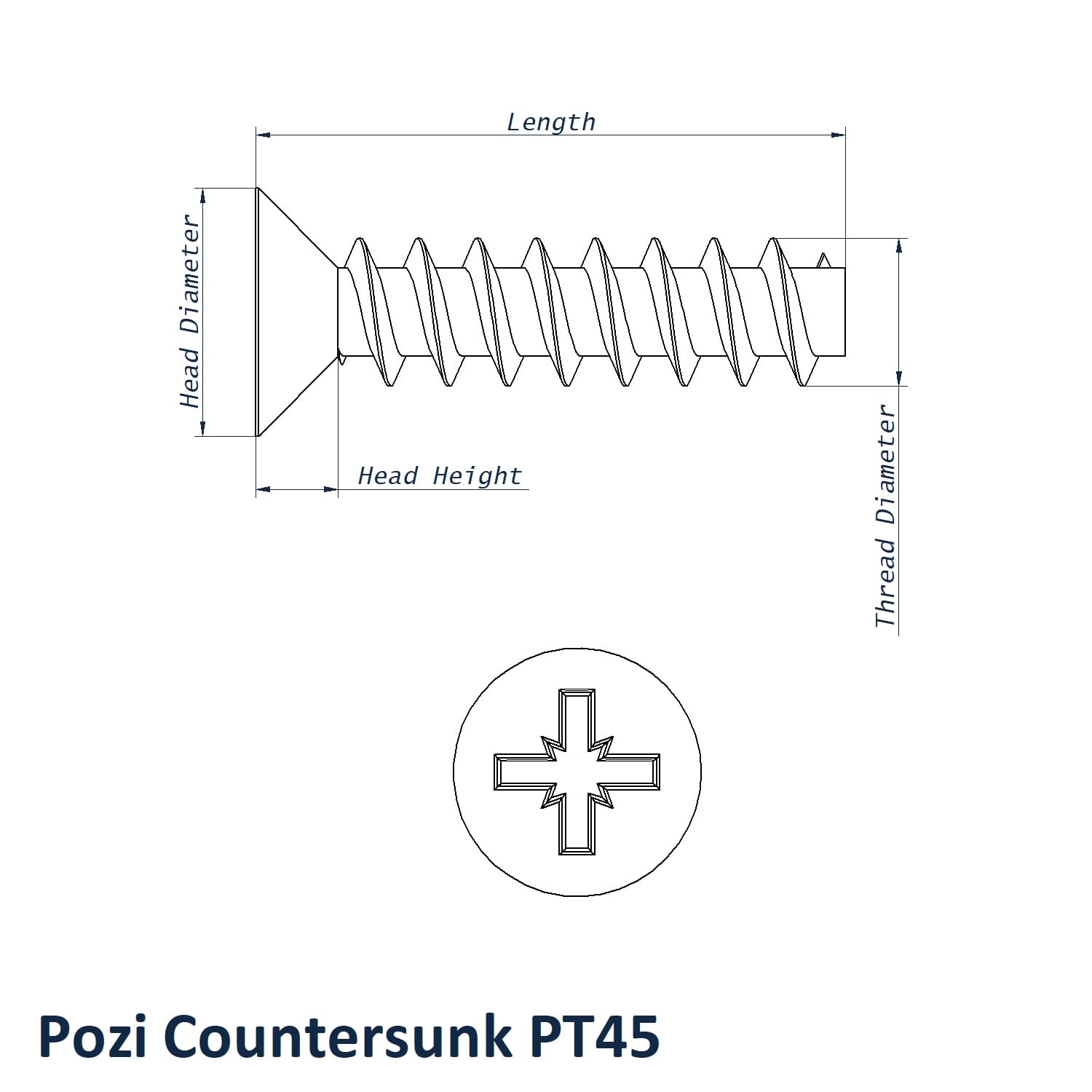

5mm x 20mm Pozi Countersunk PT45 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 20mm
- Head Diameter: 9.60mm
- Head Height: 2.30mm
- Drive: PZ2
- Material: Steel BZP
- Head Style: Countersunk
Key Benefits
- PZ2 Pozi drive provides a widely available drive format for production and maintenance.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- 9.60mm head diameter and 2.30mm head height match the uploaded SKU specification.
Browse the full Pozi Countersunk PT45 Screws for Hard Plastics category for Bright Zinc Plated Steel and A2 Stainless Steel options. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection and installation guidance. Technical support is available on 01233 713581.
