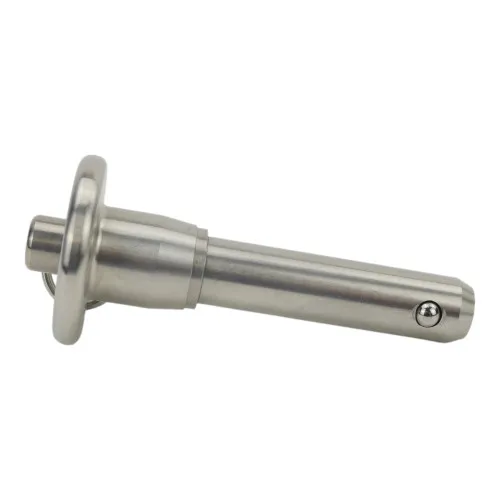

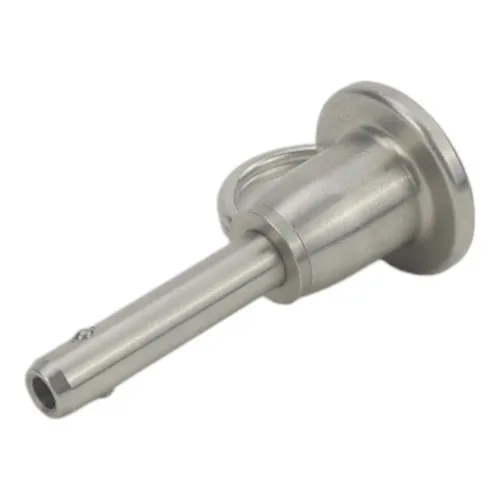

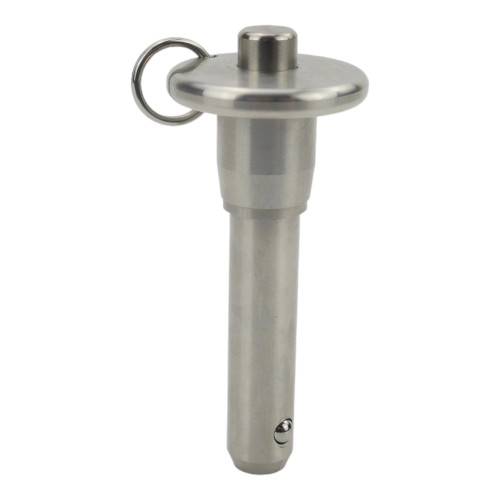

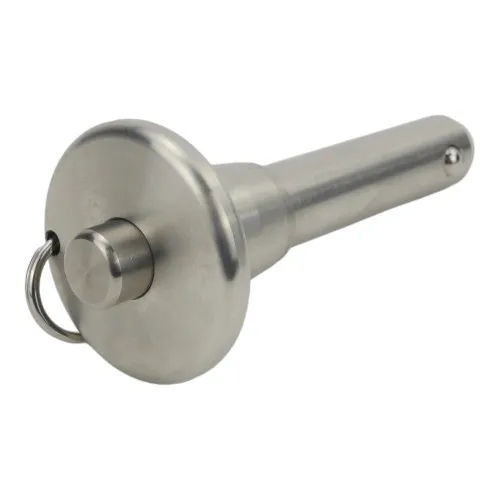

12mm x 60mm Push Knob Detent Pin

Push Knob Detent Pins - 12mm Pin Diameter & 60mm Grip Length - A2 Stainless Steel Gym Pin | Vital Parts - PKDP023

Our Push-Knob Detent Pins are made up of a flange, pull ring and push-knob. To use this variation, pull on the detent pin and press the knob to compress the springs, which in turn retracts the ball bearings and allows the pin to be released from its seated position.

What Are Push Knob Detent Pins?

Push Knob Detent Pins are a type of quick release pin designed for secure yet removable installation. The pull ring serves as an anchor point for a retaining chain and offers a secondary removal method in place of the flange. Manufactured from A2 stainless steel, these detent pins are corrosion resistant and ideal for heavy use environments where reliability and speed are critical.

Click here to view our full Guide to Detent Pins ,showcasing the different types, their functions and how to use them effectively across various applications.

Key Features:

• Manufactured from corrosion-resistant A2 stainless steel
• Quick release detent mechanism for easy removal
• Integrated flange for improved grip and handling
• Dual-purpose pull ring for removal or chain retention
• Compliant with RoHS, REACH, Conflict Materials and California Prop 65

Key Applications and Industries

• Fitness and gym equipment - adjustable weight machines, gym weight pins ideal for fast load selection and secure locking during repeated use
• Machinery that demands regular adjustments or quick, tool-free component changes
• Engineering and workshop jigs or fixtures
• Quick change parts in industrial environments

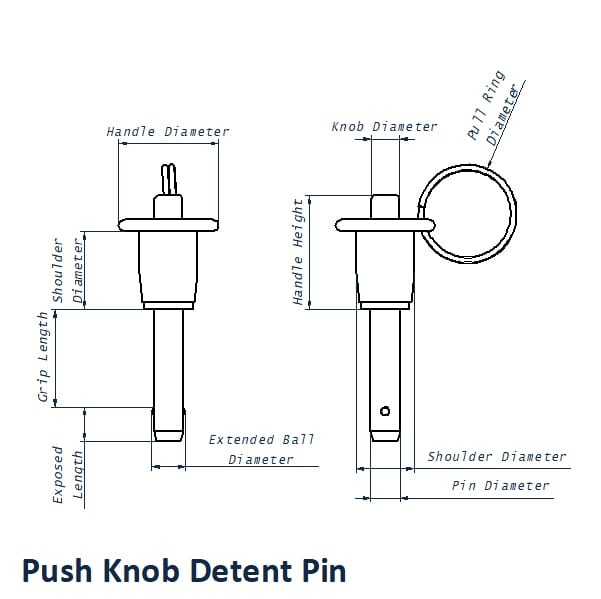

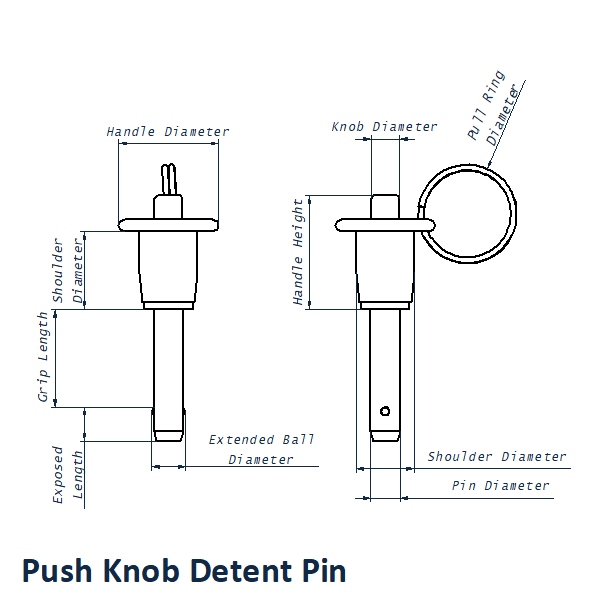

Technical Specifications

• Pin Diameter : 12mm
• Grip Length : 60mm
• Handle Height : 32.3mm
• Handle Diameter : 34.7mm
• Pull Ring Diameter : 15mm
• Exposed Length : 10mm
• Knob Diameter : 10.7mm
• Shoulder Diameter : 18.3mm
• Shoulder Height : 21.6mm
• Extended Ball Diameter : 14.5mm
• Material: A2 stainless steel
• Design: Push-knob with retracting ball detent system
• Pull Ring: Yes - usable for chain retention or removal
• Installation Fit: Designed for hole 0.1mm larger than pin body
• Finish: Natural stainless steel
• Operation: Tool-free quick release

Push Knob Detent Pins offer a reliable and efficient fastening method for applications that require rapid adjustment or secure locking under load. Their corrosion resistance and ease of use make them ideal for both commercial - gym pin to add weight - and industrial uses.

Benefits:

• Fast installation and removal without tools
• Durable and long-lasting stainless steel construction
• Safe retention with optional pull ring chain fixing
• Suitable for repetitive-use scenarios and adjustments
