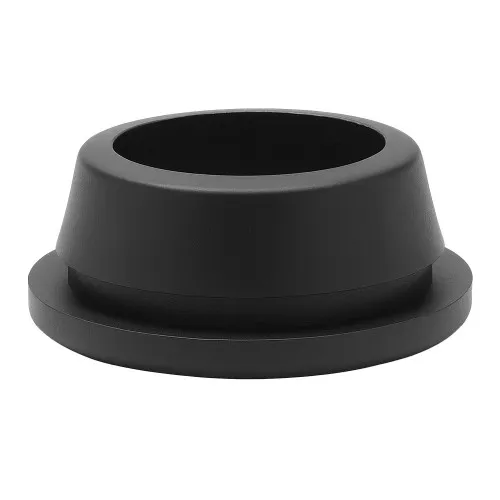

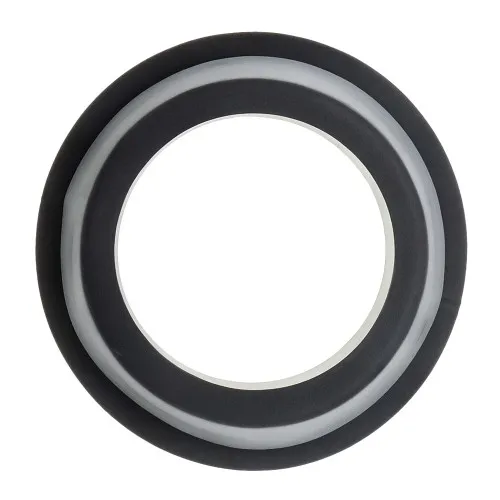

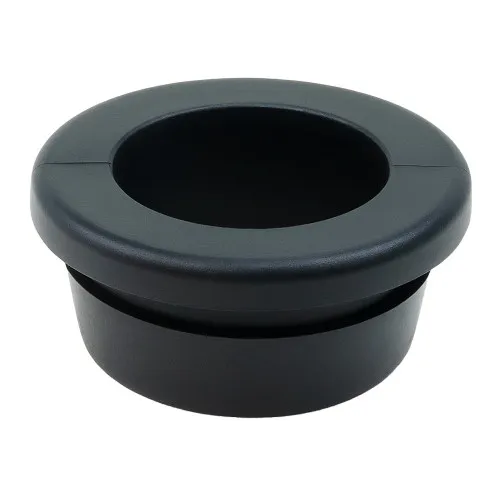

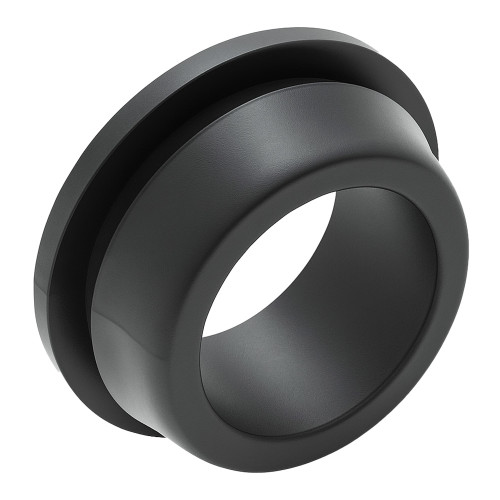

8.5mm Quick Fit Grommet - 22mm Mounting Hole (2mm Panel Thickness) | Black PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.37 | £0.44 |
| 1000 - 2499 | £0.25 | £0.30 |
| 2500 - 4999 | £0.20 | £0.24 |
| 5000 + | £0.17 | £0.20 |
£0.44 / each
.png)
Product Specification
| Mounting Hole Diameter | 22mm |
| Panel Thickness | 2.0mm |
| Colour | Black |
| Head Height | 2mm |
| Internal Diameter | 18mm |
| Material | PVC |
| Total Height | 8.5mm |
Frequently Bought Together
Total Price: £0.00
22mm Quick Fit Rubber Grommet | 18mm Internal | 2mm Panel | Black PVC

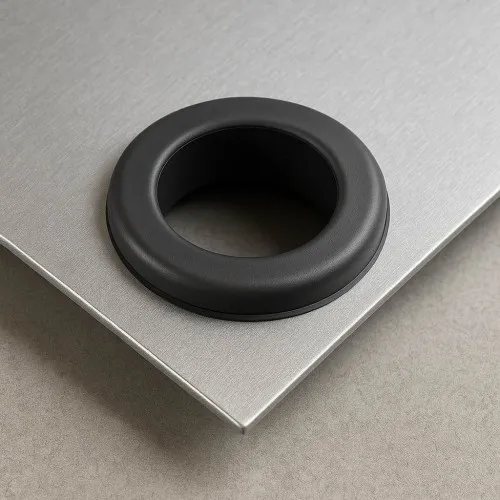

Made from black PVC, this 22mm rubber wire grommet fits into a compatible 2mm panel to create a neat cable-routing point. Its snap-fit profile helps simplify installation where access, assembly speed and cable-edge protection are important.
What Are Quick Fit Rubber Grommets?
Push-In Grommets create a finished cable-entry point in metal or other suitable panels. The flexible body sits around the cut edge of the hole which helps reduce abrasion where wiring passes through the panel.
For other cable-entry styles and materials, our wider rubber wire grommets selection includes open, closed, stepped and sealing options for different panel and cable requirements.
Common Applications
- Workshop Equipment: Protects routed cables passing through guards, covers and machine panels during installation or repair.
- Data Equipment: Provides cable-edge protection through suitable network, communications and electronics enclosures.
- Equipment Covers: Creates a defined cable passage through removable panels and service covers.
- General Manufacturing: Supports repeatable cable routing through pre-cut panel openings during assembly.

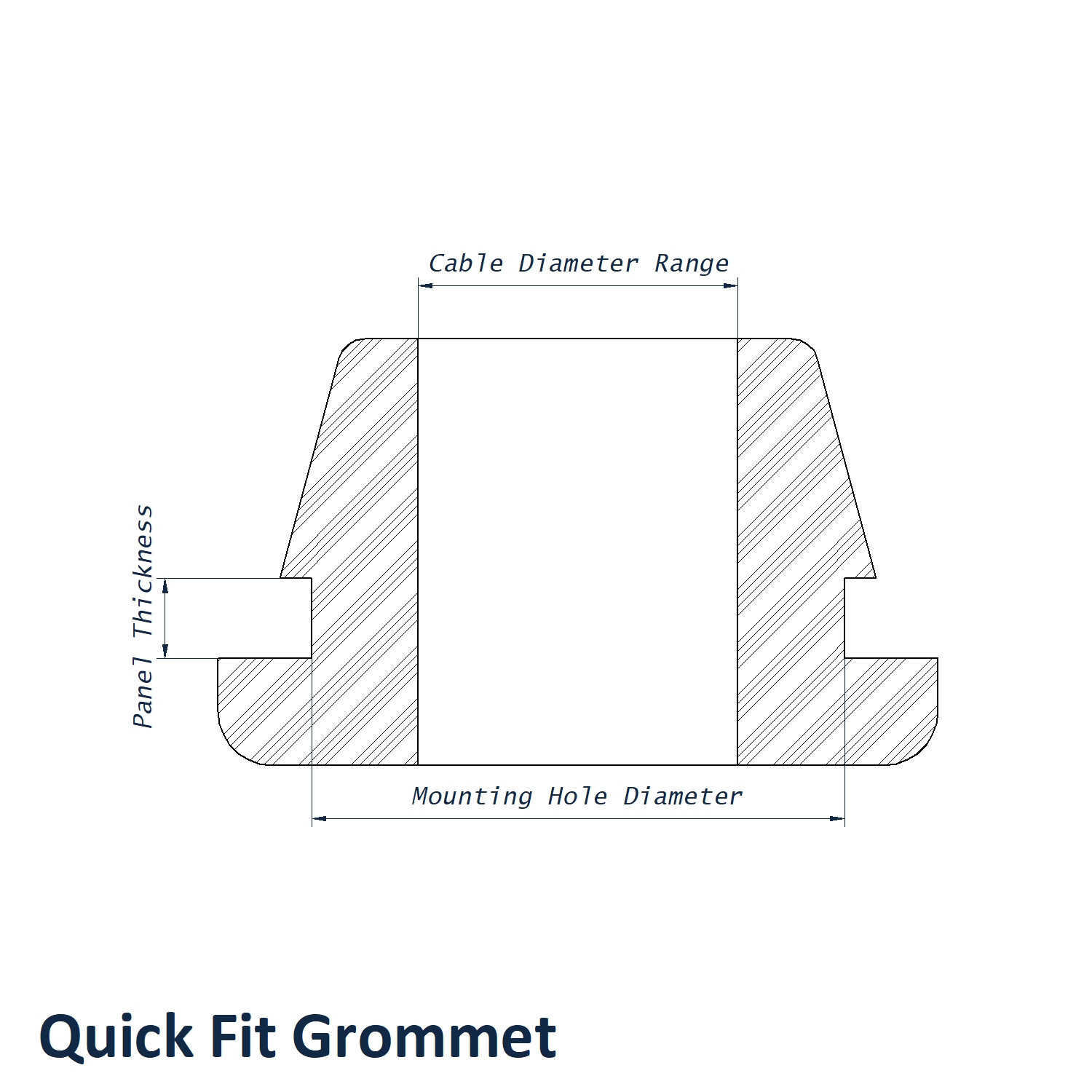

22mm Quick Fit Rubber Grommet Dimensions
- Mounting Hole Diameter: 22mm
- Panel Thickness: 2.0mm
- Internal Diameter: 18mm
- Total Height: 8.5mm
- Head Height: 2mm
- Material: PVC
- Colour: Black
Key Benefits
- Quick-fit design suits repeat assembly where cable-entry components need to be installed efficiently.
- 2mm panel thickness identifies the intended sheet thickness for the snap-fit groove.
- 2mm head height provides the visible rim around the panel opening.
- Black finish provides a discreet appearance on many electrical and equipment panels.
Browse more push-in cable grommets to compare mounting-hole diameters, panel thicknesses and internal cable openings. If you need help selecting the correct fit, call us on 01233 713581.
