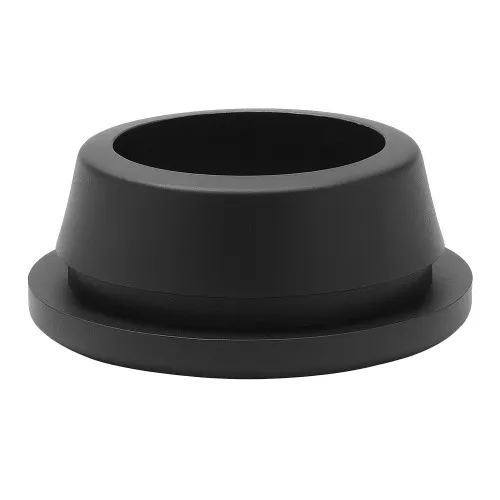

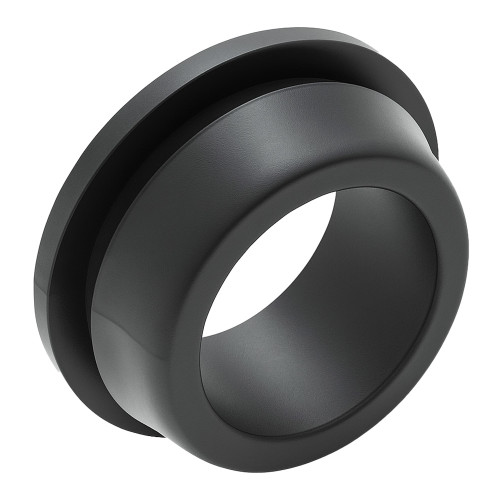

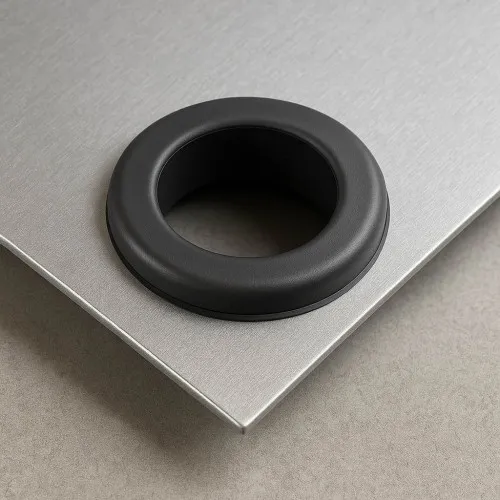

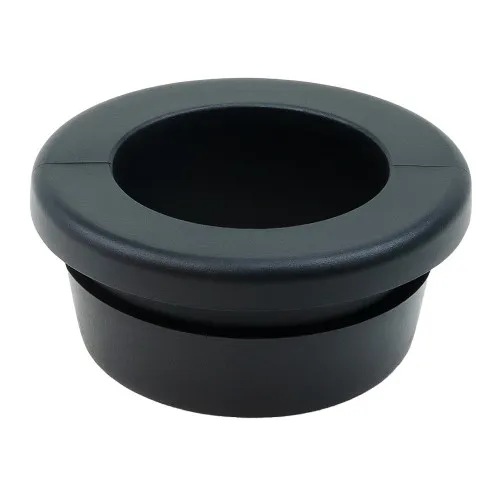

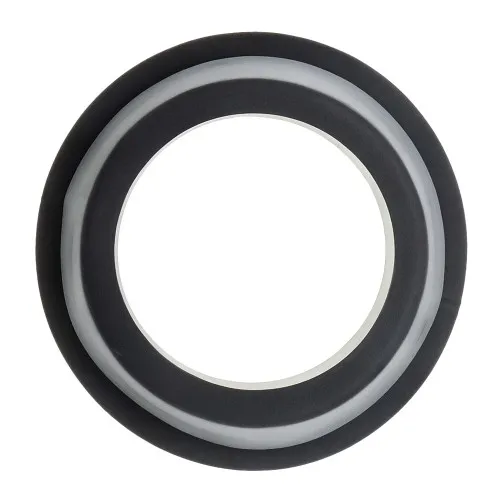

9.5mm Quick Fit Grommet - 22mm Mounting Hole (3mm Panel Thickness) | Black PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.37 | £0.44 |
| 1000 - 2499 | £0.25 | £0.30 |
| 2500 - 4999 | £0.20 | £0.24 |
| 5000 + | £0.17 | £0.20 |
£0.44 / each
.png)
Product Specification
| Mounting Hole Diameter | 22mm |
| Panel Thickness | 3.0mm |
| Colour | Black |
| Head Height | 2mm |
| Internal Diameter | 18mm |
| Material | PVC |
| Total Height | 9.5mm |
Frequently Bought Together
Total Price: £0.00
22mm Quick Fit Rubber Grommet | 18mm Internal | 3mm Panel | Black PVC
Made from black PVC, this 22mm quick fit rubber grommet fits into a compatible 3mm panel to create a neat cable-routing point. Its snap-fit profile helps simplify installation where access, assembly speed and cable-edge protection are important.
What Are Quick Fit Rubber Grommets?
Quick Fit Cable Grommets combine edge protection and cable routing in a compact push-in component. Matching the mounting-hole diameter, panel thickness and internal diameter is important for a secure fit and suitable cable clearance.
Other rubber wire grommets are available for applications that need different cable openings, panel fits or sealing characteristics.
Common Applications
- Electrical Enclosures: Helps isolate wires from cut panel edges where cables enter or leave a suitable enclosure.
- Lighting Equipment: Provides a push-in cable passage through compatible metal or plastic housings.
- Appliances: Supports cable routing through internal panels and covers where a compact edge-protection grommet is required.
- Fabricated Panels: Finishes drilled or punched cable holes in suitable sheet-metal assemblies.

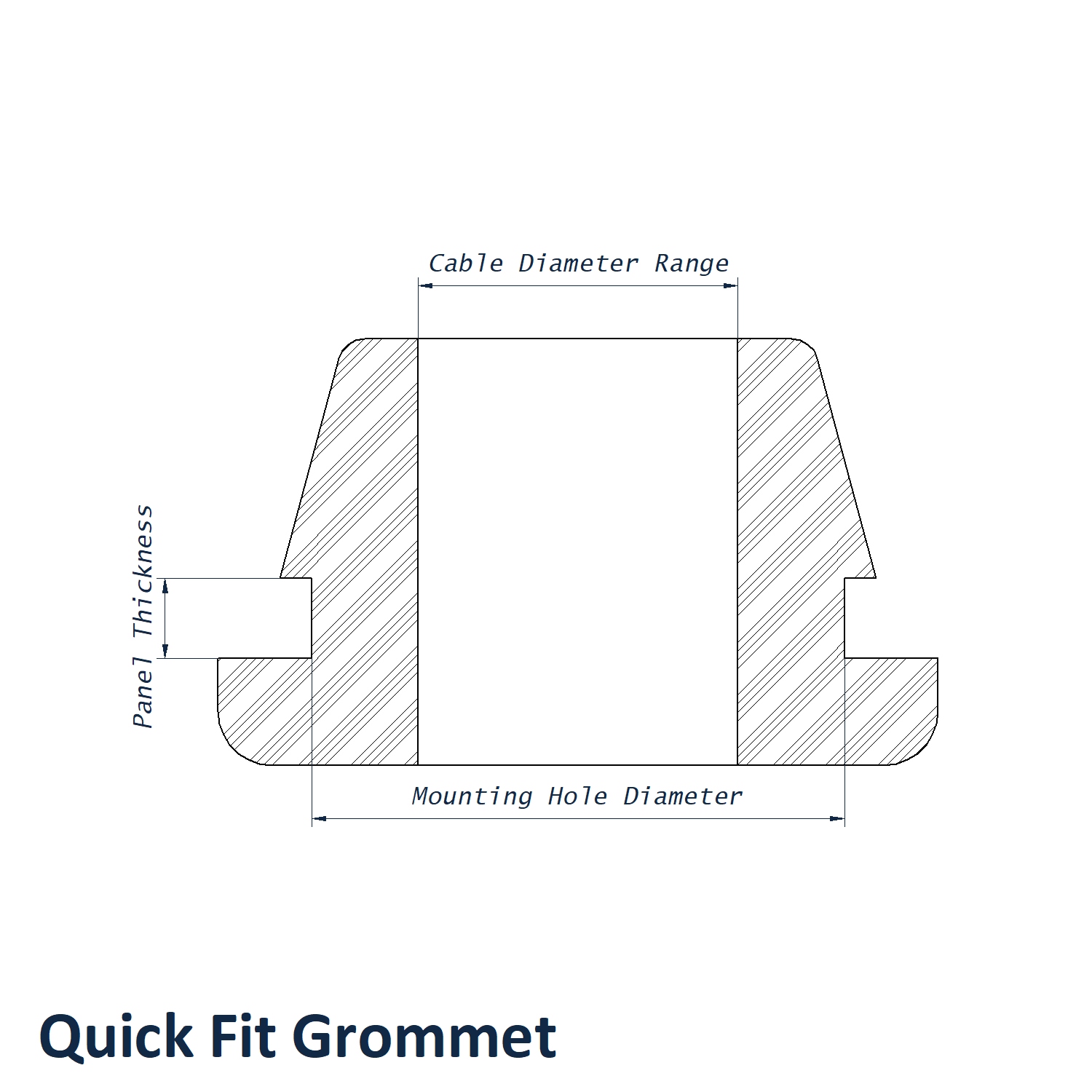

22mm Quick Fit Rubber Grommet Dimensions
- Mounting Hole Diameter: 22mm
- Panel Thickness: 3.0mm
- Internal Diameter: 18mm
- Total Height: 9.5mm
- Head Height: 2mm
- Material: PVC
- Colour: Black
Key Benefits
- 22mm mounting-hole diameter provides the required panel opening size.
- 18mm internal diameter provides the stated cable or wire passage.
- PVC construction provides a flexible quick-fit body for suitable panel applications.
- Push-in profile allows installation without separate screws or retaining hardware.
Browse more snap-fit rubber grommets to compare mounting-hole diameters, panel thicknesses and internal cable openings. If you need help selecting the correct fit, call us on 01233 713581.
