8mm x 5.5mm Heavy Duty Edging (For 0.8-1.5mm Panel) Reinforced 50m PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £66.91 | £80.29 |
| 2 - 5 | £65.57 | £78.68 |
| 6 - 10 | £64.26 | £77.11 |
| 11 + | £62.98 | £75.57 |
£80.29 / each
.png)
Product Specification
| To Fit Panel Thickness | 0.8-1.5mm |
| Roll Length | 50m |
| Overall Depth | 8.0mm |
| Width | 5.5mm |
| Profile | Reinforced U |
| Colour | Black |
| Material | PVC |
Frequently Bought Together
Total Price: £0.00
8mm x 5.5mm Reinforced Edge Trim | To Fit 0.8-1.5mm Panel | 50m | PVC

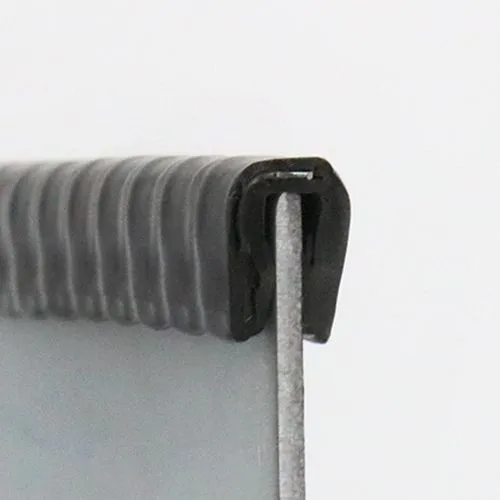

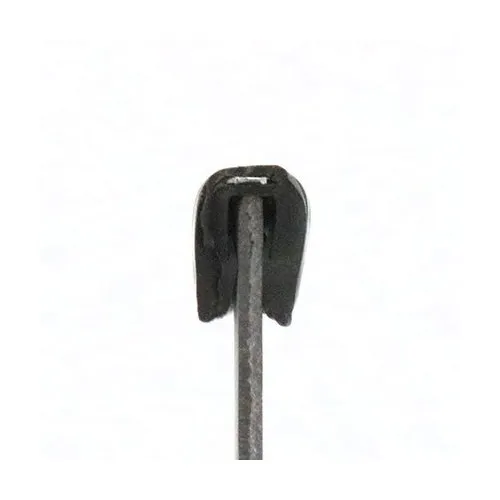

This steel reinforced edging strip is designed for thin sheet-metal guards, electrical panels and fabricated housings, providing a durable protective finish over 0.8-1.5mm panel edges. Supplied in a 50m roll, the PVC profile uses internal steel reinforcement to strengthen the channel and help it stay securely fitted during regular industrial use. As a heavy duty reinforced edging strip, it is well suited to areas exposed to repeated handling, knocks or abrasion.
What Is Reinforced Edge Trim?
Reinforced Edge Trim is a U-channel edging profile used to cover exposed panel and sheet edges. Internal steel ribs strengthen the channel and help it grip the panel while the outer PVC or EPDM layer provides a protective finished surface.
Common Applications
- Machinery Guards: Covers exposed guard edges and helps reduce damage from repeated handling or contact.
- Fabricated Panels: Creates a finished protective edge around cut sheet metal and fabricated sections.
- Industrial Enclosures: Protects cabinet, housing and access-panel edges in commercial and industrial equipment.
- Safety Edging: Covers sharp or unfinished metal edges to reduce direct contact during use and maintenance.

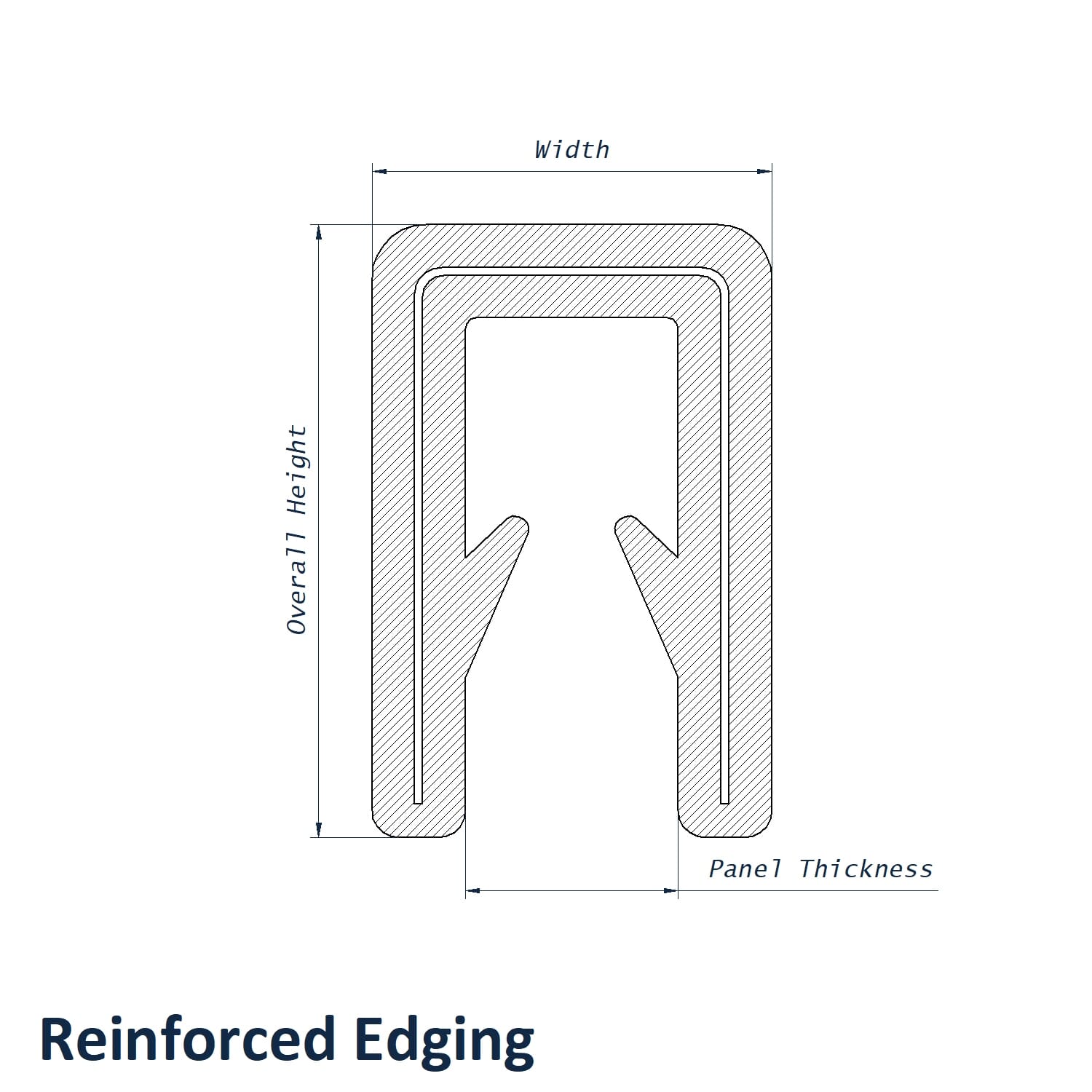

8mm x 5.5mm Reinforced Edge Trim Dimensions
- To Fit Panel Thickness: 0.8-1.5mm
- Roll Length: 50m
- Overall Depth: 8.0mm
- Width: 5.5mm
- Profile: Reinforced U
- Material: PVC
- Colour: Black
Key Benefits
- 0.8-1.5mm panel range provides the main fit specification for the reinforced channel.
- 8mm overall depth defines how far the profile extends over the panel edge.
- Internal steel ribs add strength and help the trim retain its position on compatible panels.
- Reinforced construction helps protect exposed edges from repeated knocks, wear and handling.
View the full Reinforced Edge Trim range to compare panel thicknesses, channel sizes and roll lengths. If you need help matching the trim to your panel, call us on 01233 713581.
