14mm x 9.5mm Heavy Duty Edging (For 1-3mm Panel) Reinforced 50m PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £91.30 | £109.56 |
| 2 - 5 | £89.47 | £107.37 |
| 6 - 10 | £87.68 | £105.22 |
| 11 + | £85.93 | £103.12 |
£109.56 / each
.png)
Product Specification
| To Fit Panel Thickness | 1.0-3.0mm |
| Roll Length | 50m |
| Overall Depth | 14.0mm |
| Width | 9.5mm |
| Profile | Reinforced U |
| Colour | Black |
| Material | PVC |
Frequently Bought Together
Total Price: £0.00
14mm x 9.5mm Reinforced Edge Trim | To Fit 1-3mm Panel | 50m | PVC
Protect exposed edges across longer fabrication runs with this reinforced edging strip. Sized for 1-3mm panels, the 14mm x 9.5mm profile combines PVC with internal steel reinforcement for dependable edge protection on machinery covers, access panels and commercial equipment. Its steel-supported channel gives this steel reinforced PVC edge trim the extra rigidity needed for demanding panel-edge protection.
What Is Reinforced Edge Trim?
Steel Reinforced Edge Trim combines a flexible outer profile with internal metal ribs. This gives the edging greater strength and retention than a simple unreinforced strip which makes it suitable for machinery, enclosures and fabricated components.
Common Applications

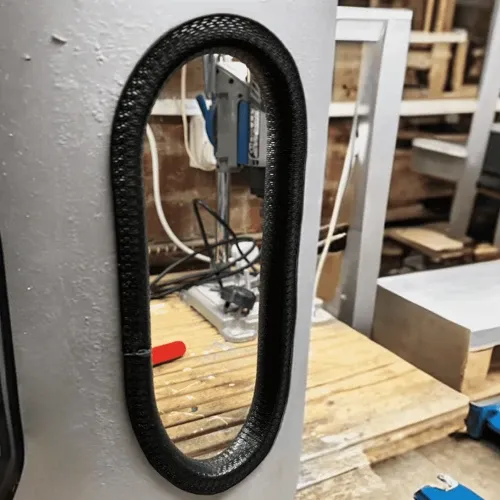

- Machine Covers: Provides reinforced protection around removable covers and access points.
- Electrical Cabinets: Covers suitable metal edges around cabinet panels and enclosure openings.
- Structural Panels: Protects compatible thicker panel edges where a stronger reinforced channel is required.
- General Engineering: Provides a durable finished edge on fabricated equipment, frames and panel assemblies.

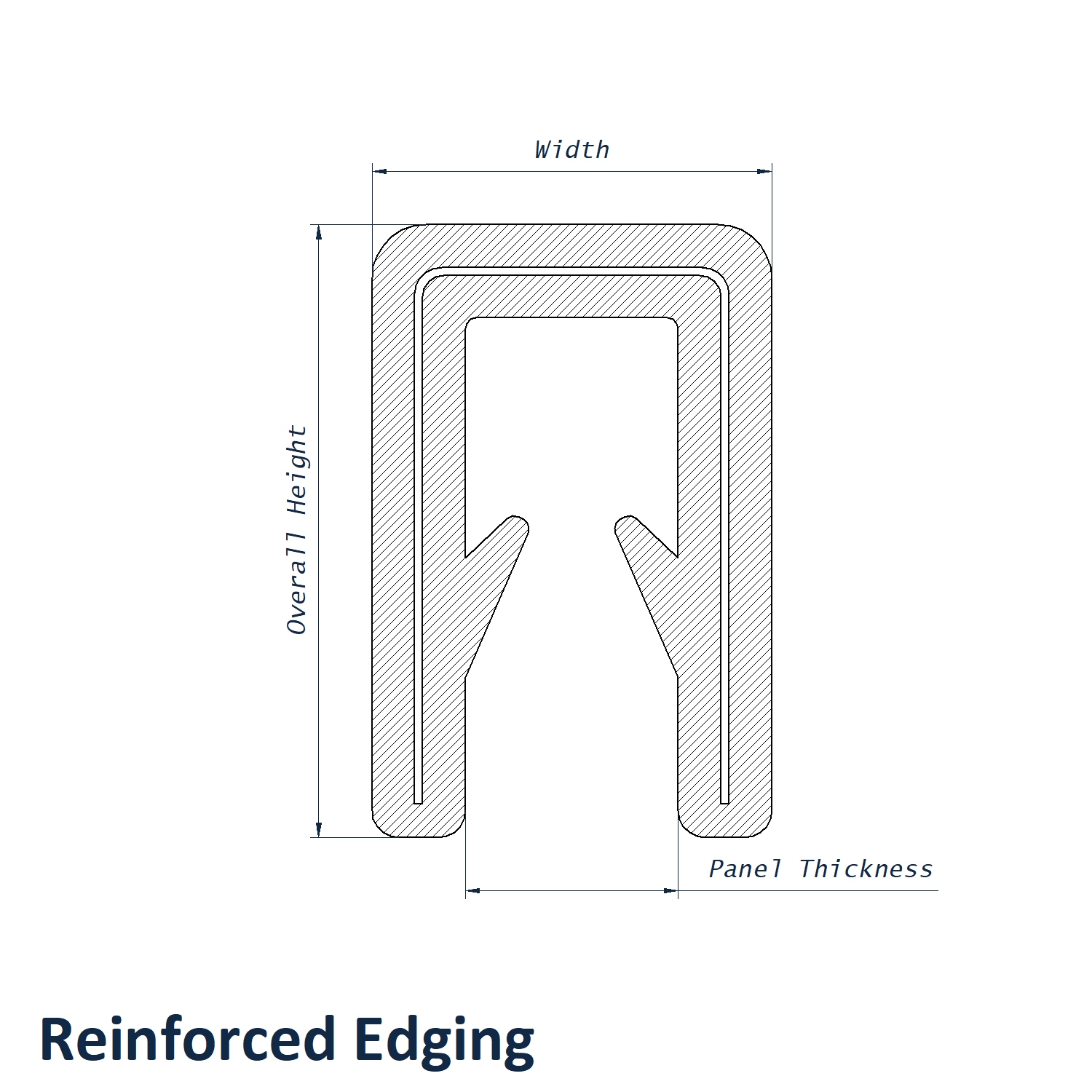

14mm x 9.5mm Reinforced Edge Trim Dimensions
- To Fit Panel Thickness: 1.0-3.0mm
- Roll Length: 50m
- Overall Depth: 14.0mm
- Width: 9.5mm
- Profile: Reinforced U
- Material: PVC
- Colour: Black
Key Benefits
- 14mm overall depth defines how far the profile extends over the panel edge.
- Reinforced U profile gives the trim its reinforced U-channel form.
- Reinforced construction helps protect exposed edges from repeated knocks, wear and handling.
- 1-3mm panel range provides the main fit specification for the reinforced channel.
Browse the complete Steel Reinforced Edge Trim range for alternative channel sizes and roll lengths. We can help you choose the correct profile on 01233 713581.
