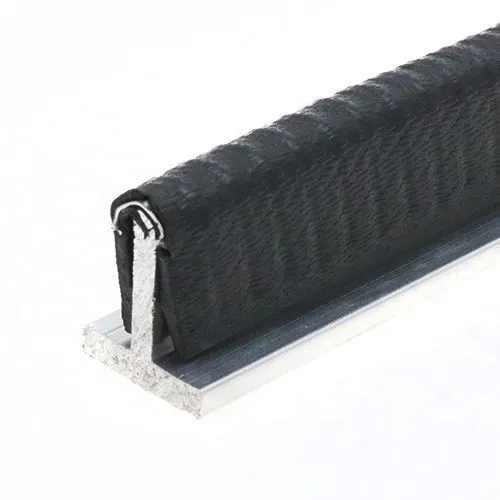

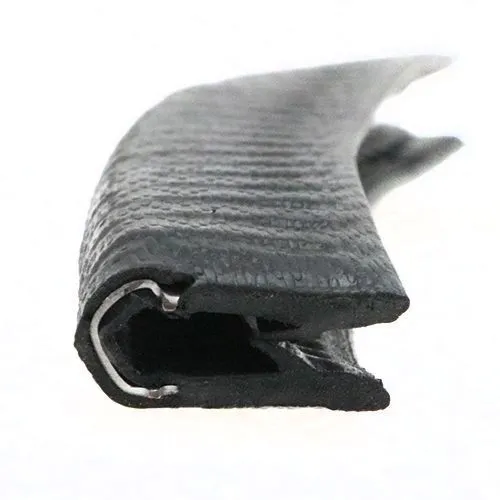

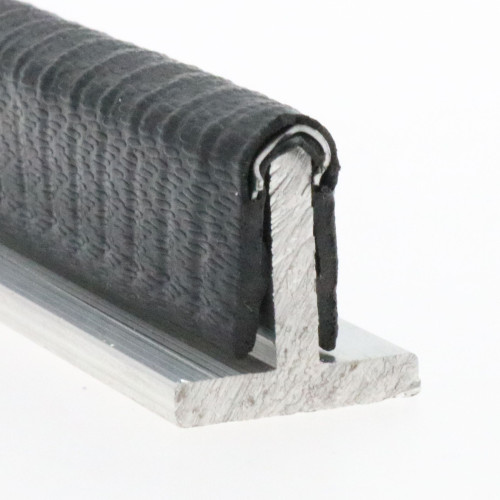

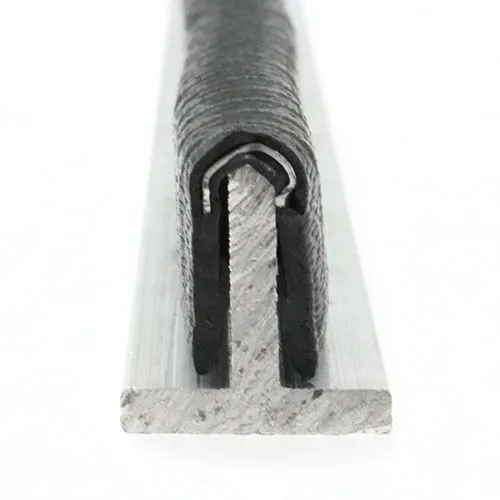

14.5mm x 10mm Heavy Duty Edging (For 1-4mm Panel) Reinforced 50m PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £143.87 | £172.64 |
| 2 - 5 | £140.99 | £169.19 |
| 6 - 10 | £138.17 | £165.80 |
| 11 + | £135.41 | £162.49 |
£172.64 / each
.png)
Product Specification
| To Fit Panel Thickness | 1.0-4.0mm |
| Roll Length | 50m |
| Overall Depth | 14.5mm |
| Width | 10.0mm |
| Profile | Reinforced U |
| Colour | Black |
| Material | PVC |
Frequently Bought Together
Total Price: £0.00
14.5mm x 10mm Reinforced Edge Trim | To Fit 1-4mm Panel | 50m | PVC
For larger installations, this 50m heavy duty reinforced edging strip provides reinforced protection around 1-4mm panel edges on machine guards, fabricated panels and industrial enclosures. The PVC outer profile cushions the edge while internal steel ribs add strength and support firm retention. The reinforced construction also makes it a practical reinforced edge protection for machinery, enclosures and fabricated equipment.
What Is Reinforced Edge Trim?
Reinforced Edge Trim is a U-channel edging profile used to cover exposed panel and sheet edges. Internal steel ribs strengthen the channel and help it grip the panel while the outer PVC or EPDM layer provides a protective finished surface.
Common Applications
- Equipment Housings: Protects exposed enclosure edges from knocks while improving the finished appearance.
- Commercial Vehicles: Suitable for compatible access panels, equipment compartments and fabricated vehicle sections.
- Workshop Fabrication: Provides a practical finish for custom guards, panels and sheet-metal assemblies.
- Door and Access Panels: Helps protect frequently handled metal edges from repeated impact and wear.

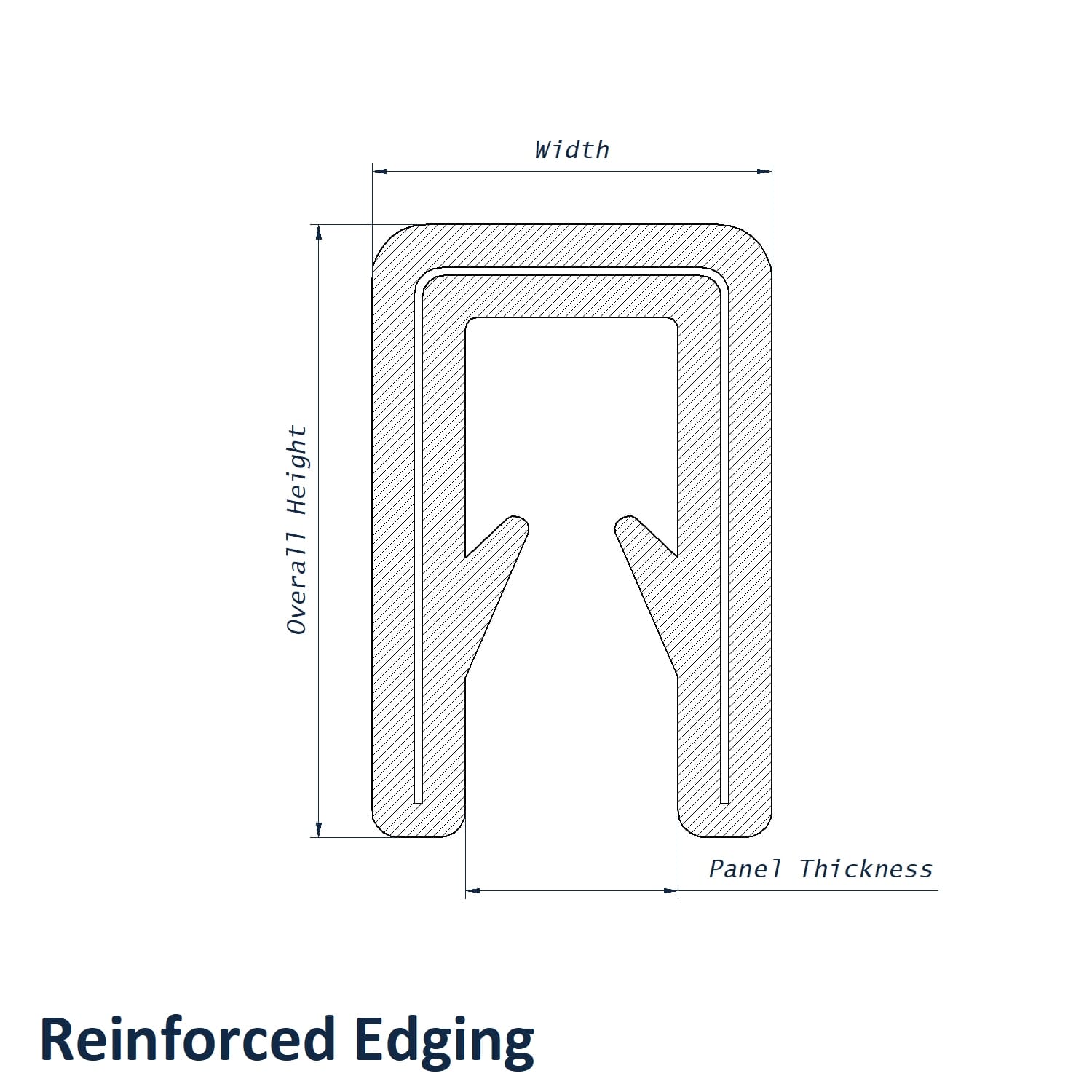

14.5mm x 10mm Reinforced Edge Trim Dimensions
- To Fit Panel Thickness: 1.0-4.0mm
- Roll Length: 50m
- Overall Depth: 14.5mm
- Width: 10.0mm
- Profile: Reinforced U
- Material: PVC
- Colour: Black
Key Benefits
- Reinforced U profile gives the trim its reinforced U-channel form.
- Internal steel ribs add strength and help the trim retain its position on compatible panels.
- 1-4mm panel range provides the main fit specification for the reinforced channel.
- 14.5mm overall depth defines how far the profile extends over the panel edge.
View the full Reinforced Edge Trim range to compare panel thicknesses, channel sizes and roll lengths. If you need help matching the trim to your panel, call us on 01233 713581.
