9.8-17.6mm Ribbed Pipe Plug (16mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.54 | £0.65 |
| 2 - 10 | £0.54 | £0.65 |
| 11 - 50 | £0.50 | £0.60 |
| 51 - 100 | £0.47 | £0.56 |
| 101 - 500 | £0.43 | £0.52 |
| 501 + | £0.40 | £0.48 |
£0.65 / each
Product Specification
| To Fit Internal Diameter | 9.8-17.6mm |
| Max Wall Thickness | 5.0mm |
| Head Diameter | 15.4 |
| Pipe Outside Diameter | 16.0mm |
| Material | Red LDPE |
Frequently Bought Together
Total Price: £0.00
16.0mm Ribbed Pipe End Plug (9.8-17.6mm Internal Fit) | Red LDPE
Suitable for 16.0mm pipe sections, this red ribbed pipe protector combines a 9.8-17.6mm internal fitting range with a 15.4 head diameter. The flexible LDPE construction helps shield the bore and pipe end from everyday contamination or handling damage while components are stored, transported or prepared for use.
What Are Ribbed Pipe End Plugs?
Unlike an external cap, this plug sits within the pipe opening. Its ribs deform as they meet the internal wall and help retain the product across pipe walls up to 5.0mm thick. The push-fit format is useful where the opening must remain protected but still be quickly accessible for inspection or connection.
Common Applications
- Hydraulic Tube Preparation: Keeps cut and cleaned pipe ends covered before fittings are added.
- Electrical Conduit Fabrication: Protects suitable round sections during workshop handling.
- Maintenance Stores: Closes replacement pipe components while they remain on shelving.
- General Manufacturing: Provides temporary bore protection between production operations.

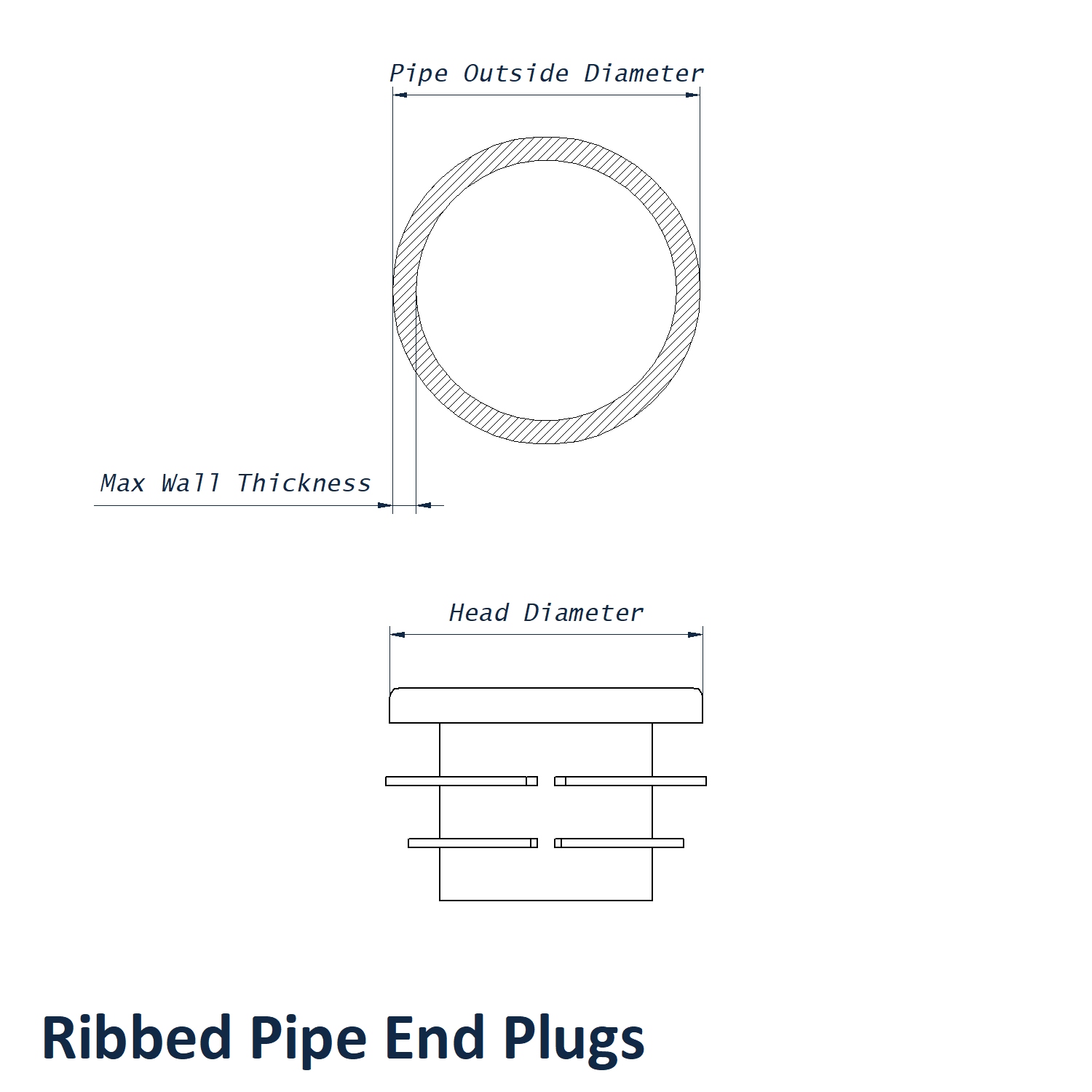

16.0mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 16.0mm
- Max Wall Thickness: 5.0mm
- To Fit Internal Diameter: 9.8-17.6mm
- Head Diameter: 15.4
- Material: Red LDPE
Key Benefits
- Developed around 16.0mm pipe outside diameters
- Ribs compensate for variation within the stated bore range
- Red material offers clear visual identification
- Simple push-in design speeds up fitting on production lines
The full choice of pipe outside diameters can be reviewed on the Ribbed Pipe End Plugs product page. For sizing support or larger order requirements, telephone our technical sales team on 01233 713 581.
