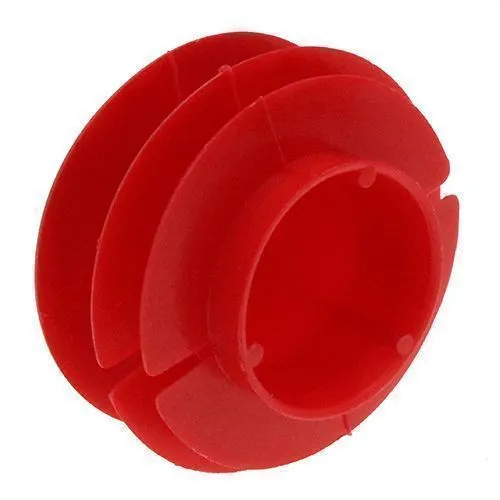

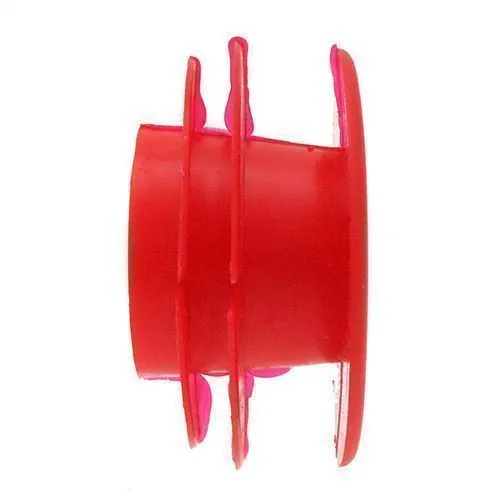

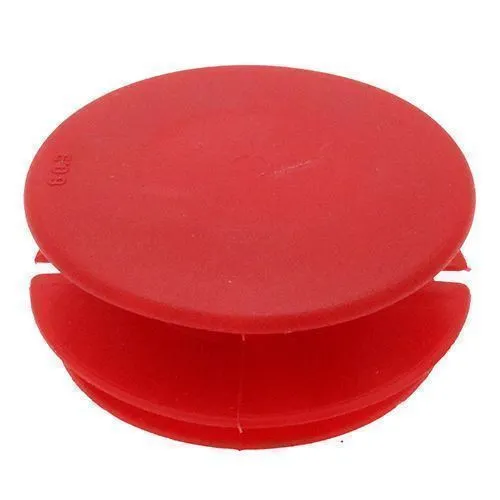

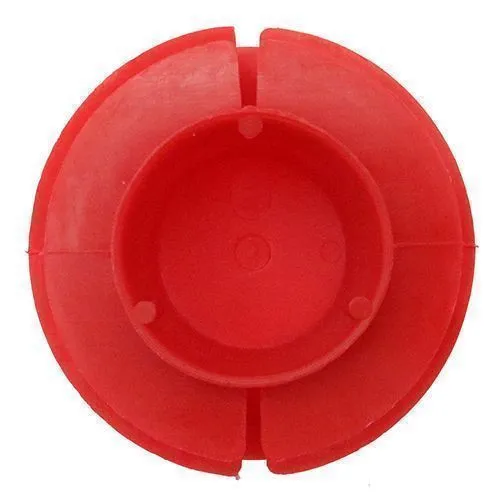

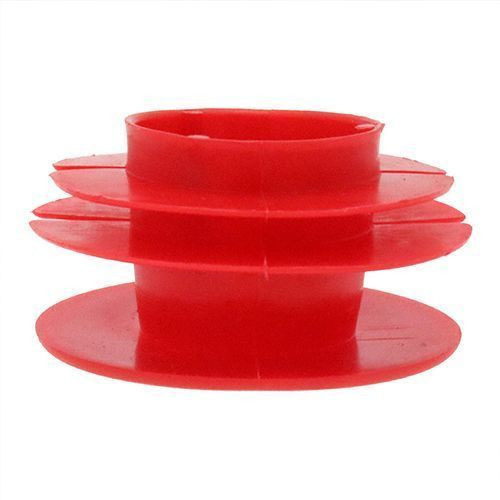

9.8-17.7mm Ribbed Pipe Plug (15mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.52 | £0.62 |
| 2 - 10 | £0.52 | £0.62 |
| 11 - 50 | £0.49 | £0.59 |
| 51 - 100 | £0.45 | £0.54 |
| 101 - 500 | £0.42 | £0.51 |
| 501 + | £0.39 | £0.47 |
£0.62 / each
Product Specification
| To Fit Internal Diameter | 9.8-17.7mm |
| Max Wall Thickness | 5.0mm |
| Head Diameter | 14.6 |
| Pipe Outside Diameter | 15.0mm |
| Material | Red LDPE |
Frequently Bought Together
15mm Round Plastic Tube Insert - 3mm Thin Head (For 11-13.4mm Tube) 0.8-2mm Wall | Black LDPE
Total Price: £0.00
15.0mm Ribbed Pipe End Plug (9.8-17.7mm Internal Fit) | Red LDPE
Ideal for 15.0mm round pipe, this red LDPE ribbed end plug helps safeguard internal surfaces from dust, moisture and loose particles. The broad 9.8-17.7mm fitting range allows the ribbed shank to accommodate differing bores while the 14.6 head diameter gives the exposed pipe end a neat temporary finish.
What Are Ribbed Pipe End Plugs?
The plug is inserted into the pipe until its head rests against the end face. A sequence of flexible ribs then provides resistance against movement inside the bore, making this design suitable for temporary protection rather than permanent closure. It can be removed by hand when the tube reaches assembly or installation.
Common Applications
- Automotive Tube Assemblies: Protects prepared pipe ends before hoses and fittings are connected.
- Furniture Manufacture: Covers suitable tubular frames during storage and internal movement.
- Metalworking Shops: Helps keep swarf out of cut tube after drilling or deburring.
- Packaging Operations: Reduces the risk of contamination during boxed or palletised transport.

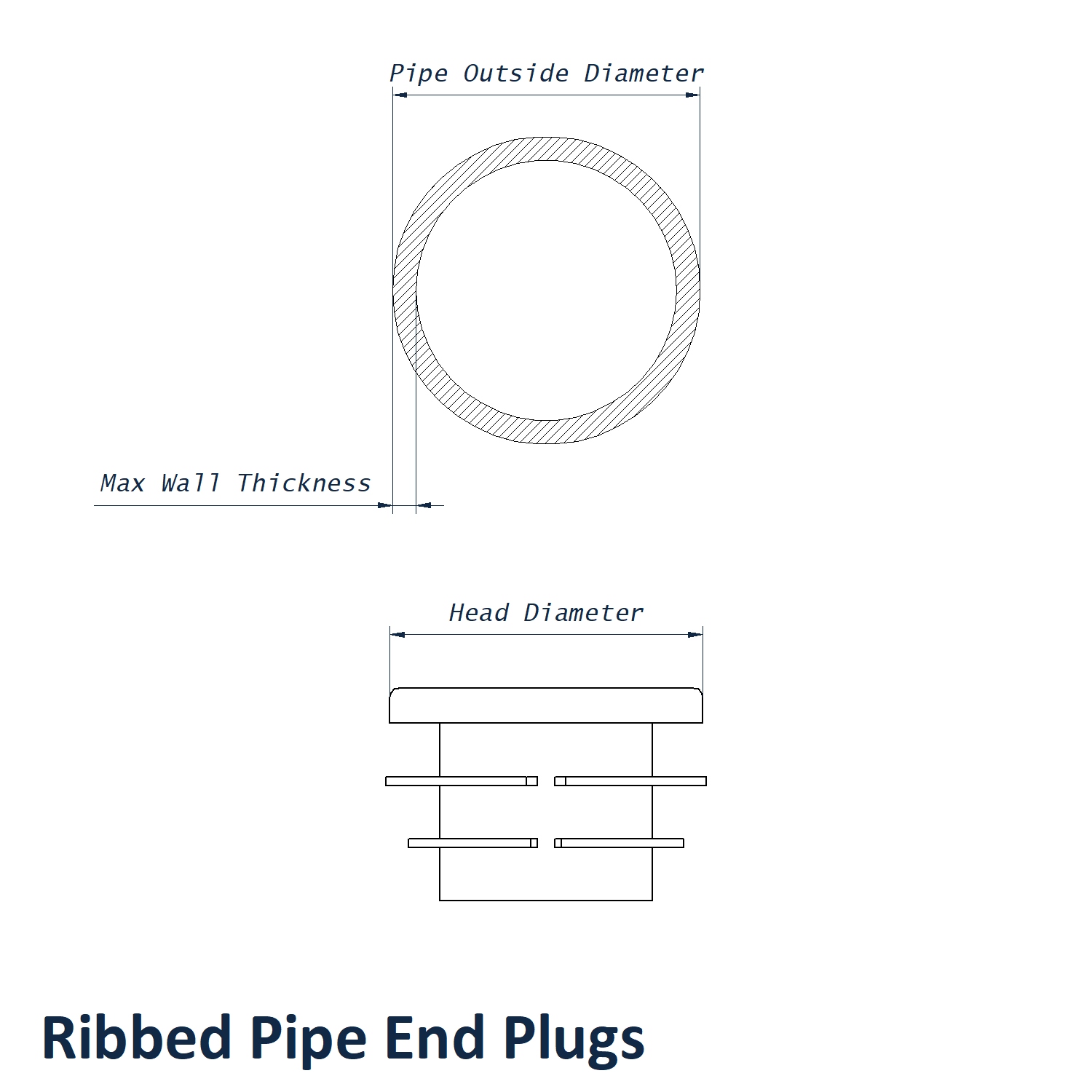

15.0mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 15.0mm
- Max Wall Thickness: 5.0mm
- To Fit Internal Diameter: 9.8-17.7mm
- Head Diameter: 14.6
- Material: Red LDPE
Key Benefits
- Protects 15.0mm pipe ends with up to 5.0mm wall thickness
- Wide internal fit range supports several related tube specifications
- Head remains visible for straightforward removal checks
- LDPE resists light impact during routine industrial handling
Compare this product with the wider red LDPE Ribbed Pipe End Plug selection. Technical guidance on selecting the correct pipe protector is available from Vital Parts on 01233 713 581.
