15.8-30.1mm Ribbed Pipe Plug (24.8-25mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.63 | £0.76 |
| 2 - 10 | £0.63 | £0.76 |
| 11 - 50 | £0.58 | £0.70 |
| 51 - 100 | £0.54 | £0.65 |
| 101 - 500 | £0.50 | £0.60 |
| 501 + | £0.47 | £0.56 |
Product Specification
| To Fit Internal Diameter | 15.8-30.1mm |
| Max Wall Thickness | 4.5mm |
| Head Diameter | 24.7 |
| Pipe Outside Diameter | 24.8-25.0mm |
| Material | Red LDPE |
Frequently Bought Together
Total Price: £0.00

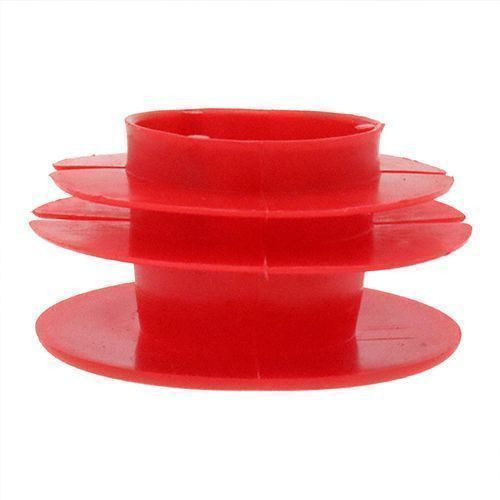

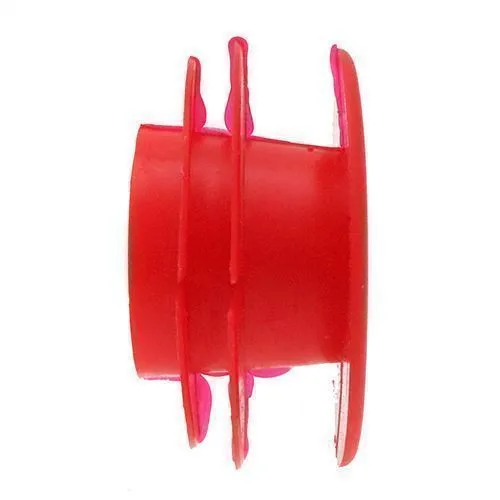

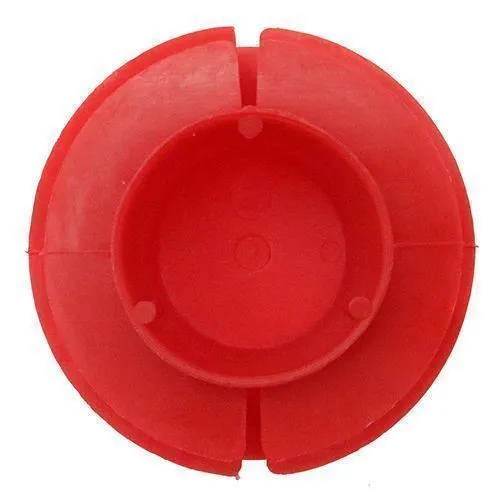

24.8-25.0mm Ribbed Pipe End Plug (15.8-30.1mm Internal Fit) | Red LDPE
Developed for pipe outside diameters from 24.8-25.0mm, this red pipe bore plug accommodates internal diameters between 15.8-30.1mm. Multiple LDPE ribs provide adaptable retention across walls up to 4.5mm thick while the 24.7 head diameter protects the pipe end during production and logistics.
What Are Ribbed Pipe End Plugs?
The stepped ribs allow this plug to suit a broader internal fitting range than a plain cylindrical stopper. As the part is inserted, the relevant ribs flex against the bore and hold the head close to the pipe face. This makes the product useful for manufacturers working with related 25mm tube specifications.
Common Applications
- 25mm Tube Fabrication: Protects cut pipe after machining, cleaning or surface preparation.
- Automotive Component Supply: Keeps tubular parts covered during movement between suppliers.
- Material Handling Equipment: Protects suitable frame and guard tubing before final assembly.
- Export Packaging: Reduces the chance of foreign material entering open pipe ends in transit.

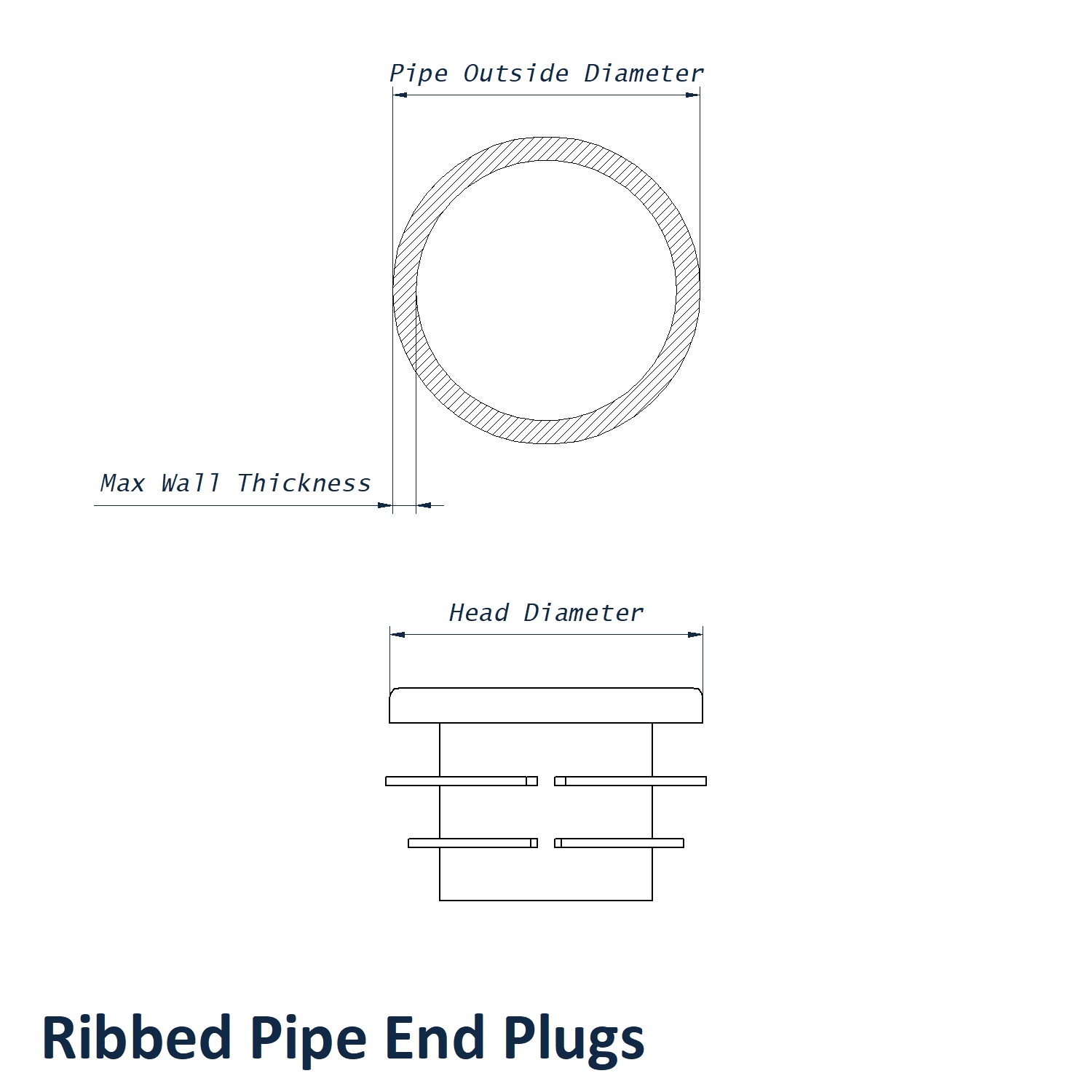

24.8-25.0mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 24.8-25.0mm
- Max Wall Thickness: 4.5mm
- To Fit Internal Diameter: 15.8-30.1mm
- Head Diameter: 24.7
- Material: Red LDPE
Key Benefits
- Covers 24.8-25.0mm pipe outside diameters
- Fits a wide 15.8-30.1mm internal diameter range
- Multi-rib shank accommodates pipe variation
- 24.7 head diameter gives the end a controlled protective finish
Further sizes are available through the Vital Parts Ribbed Pipe End Plugs category. For assistance with wall thickness, bore measurement or regular production quantities, speak with our team on 01233 713 581.
