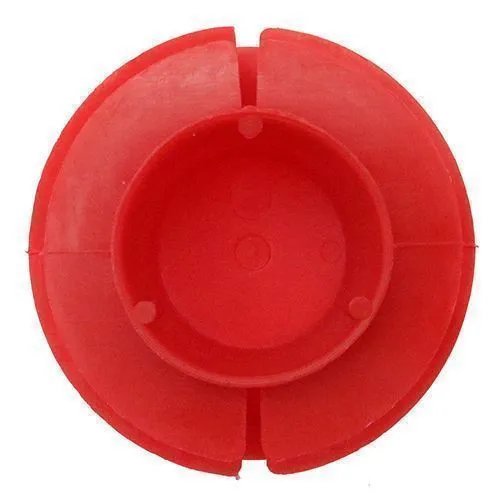

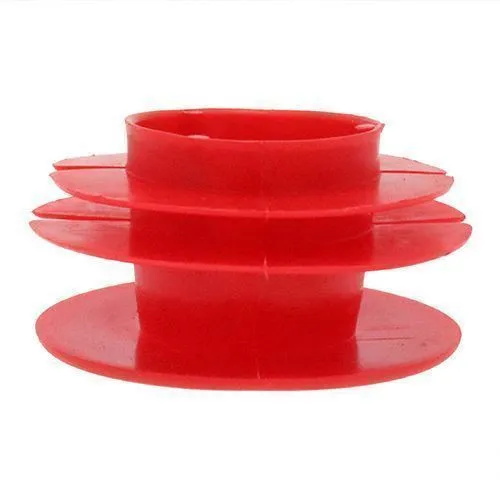

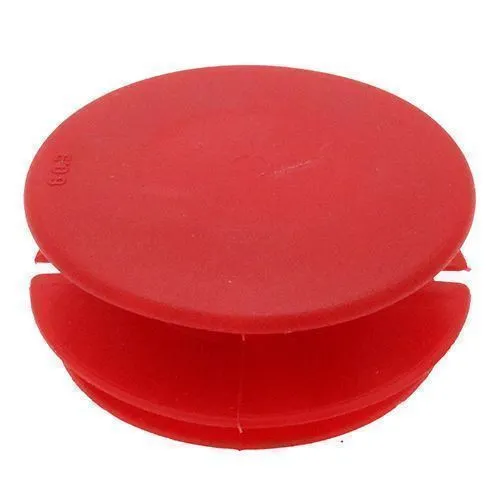

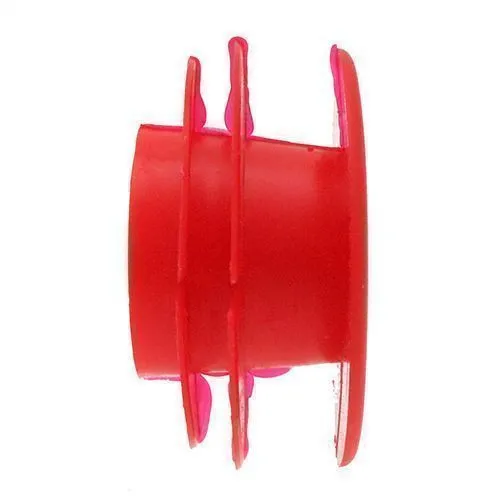

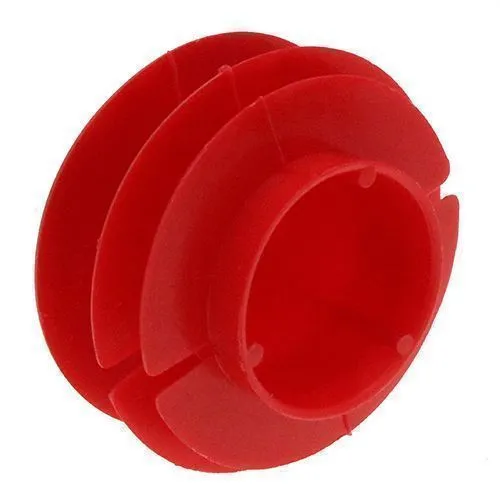

11.9-22mm Ribbed Pipe Plug (22mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.61 | £0.73 |
| 2 - 10 | £0.61 | £0.73 |
| 11 - 50 | £0.57 | £0.68 |
| 51 - 100 | £0.53 | £0.63 |
| 101 - 500 | £0.48 | £0.58 |
| 501 + | £0.45 | £0.54 |
£0.73 / each
.png)

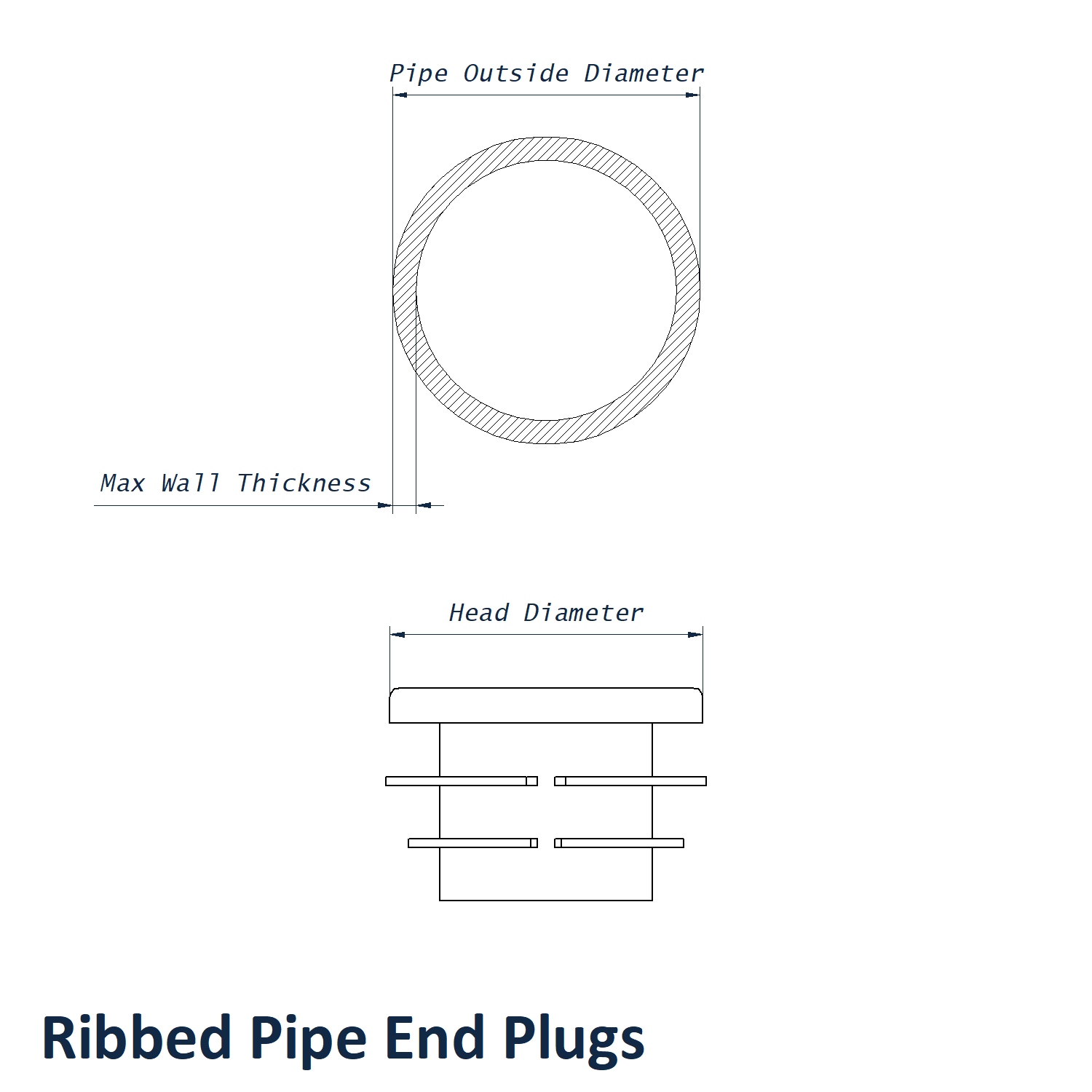

Product Specification
| To Fit Internal Diameter | 11.9-22mm |
| Max Wall Thickness | 4.5mm |
| Head Diameter | 21.8 |
| Pipe Outside Diameter | 22.0mm |
| Material | Red LDPE |
Frequently Bought Together
Total Price: £0.00
22.0mm Ribbed Pipe End Plug (11.9-22mm Internal Fit) | Red LDPE
Offering protection for 22.0mm pipe ends, this red LDPE ribbed tube plug fits internal diameters from 11.9-22mm and wall thicknesses up to 4.5mm. The 21.8 head diameter sits neatly against the end face while the internal ribs help prevent movement during storage or transport.
What Are Ribbed Pipe End Plugs?
A ribbed tube plug is selected using the pipe outside diameter, internal diameter range and maximum wall thickness. When the correct size is pressed into place, the flexible ribs grip the bore at several points. The design helps keep open tube ends covered without modifying the component or adding a permanent closure.
Common Applications
- HVAC Component Manufacture: Protects suitable pipe sections before connection into larger systems.
- Cabinet and Framework Production: Covers round tubular components during assembly and packing.
- Warehouse Handling: Helps stop loose debris entering stock pipe lengths.
- Mechanical Engineering: Provides temporary protection for machined or fabricated tube openings.
22.0mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 22.0mm
- Max Wall Thickness: 4.5mm
- To Fit Internal Diameter: 11.9-22mm
- Head Diameter: 21.8
- Material: Red LDPE
Key Benefits
- Suitable for 22.0mm pipe with up to 4.5mm wall thickness
- Internal ribs support a controlled push-fit connection
- Bright red head remains visible after fitting
- LDPE construction helps absorb light handling impacts
View the complete Ribbed Pipe End Plugs range to compare neighbouring pipe sizes and internal diameter options. For help checking the correct fit against your pipe measurements, contact the Vital Parts technical sales team on 01233 713 581.
